Jumper and Connector Locati
ons
3-3

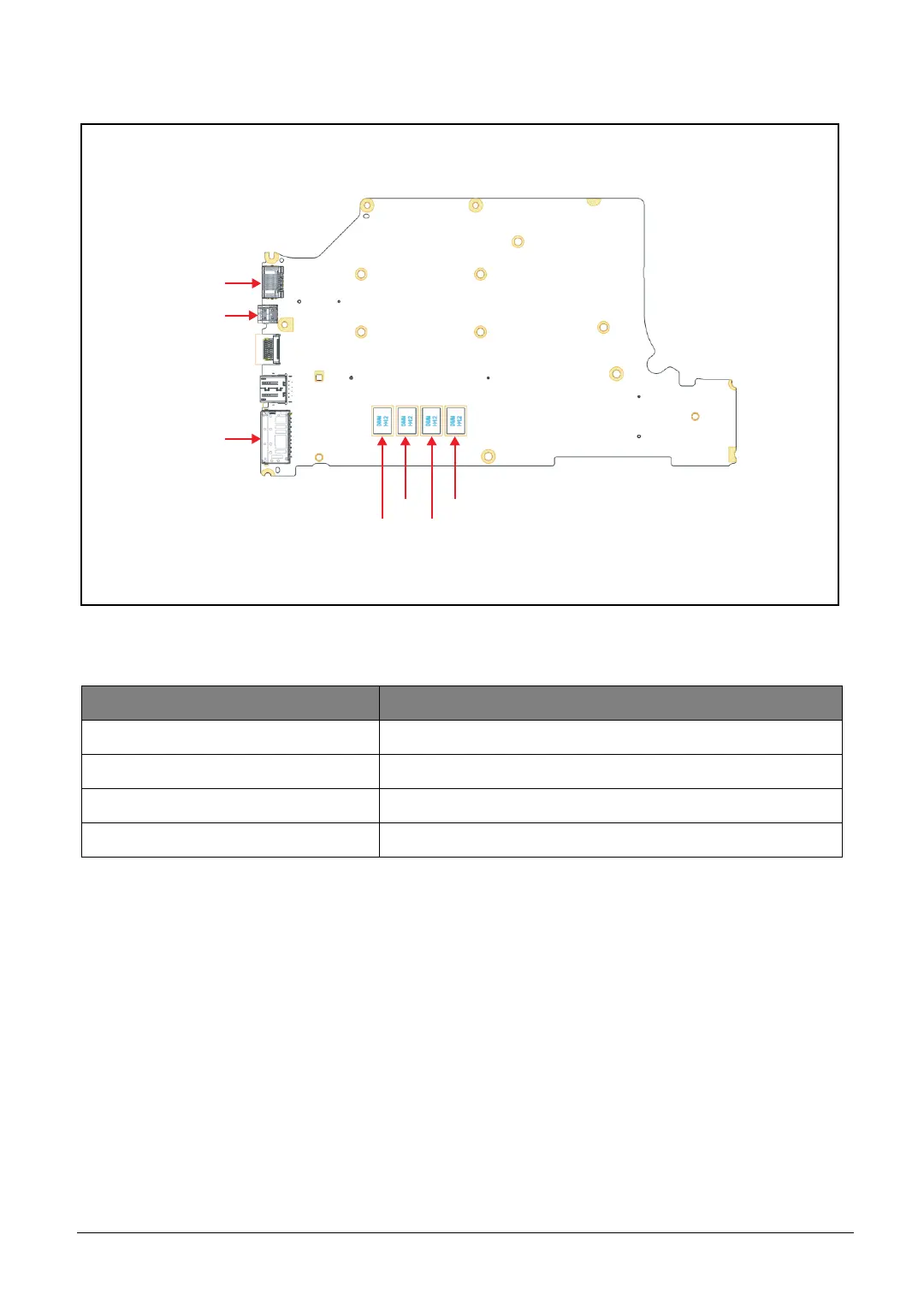

Mainboard Top View (Discrete)
Figure 3-2. Mainboard T
op (Discrete)
T
able 3-2. Mainboard T
o
p Jumpers and Connect
ors (Discrete)
Item
Description
JRJ45
LAN Connector
JUSB4
USB T
ype C Connector (Reserved)
JSD1
SD Connector
U2, U3, U4, U5
On Board Memory
JRJ45
JUSB4
JSD1
U2
U3
U4
U5
106
108
