5-45 Service and Maintenance
IO Board Installation

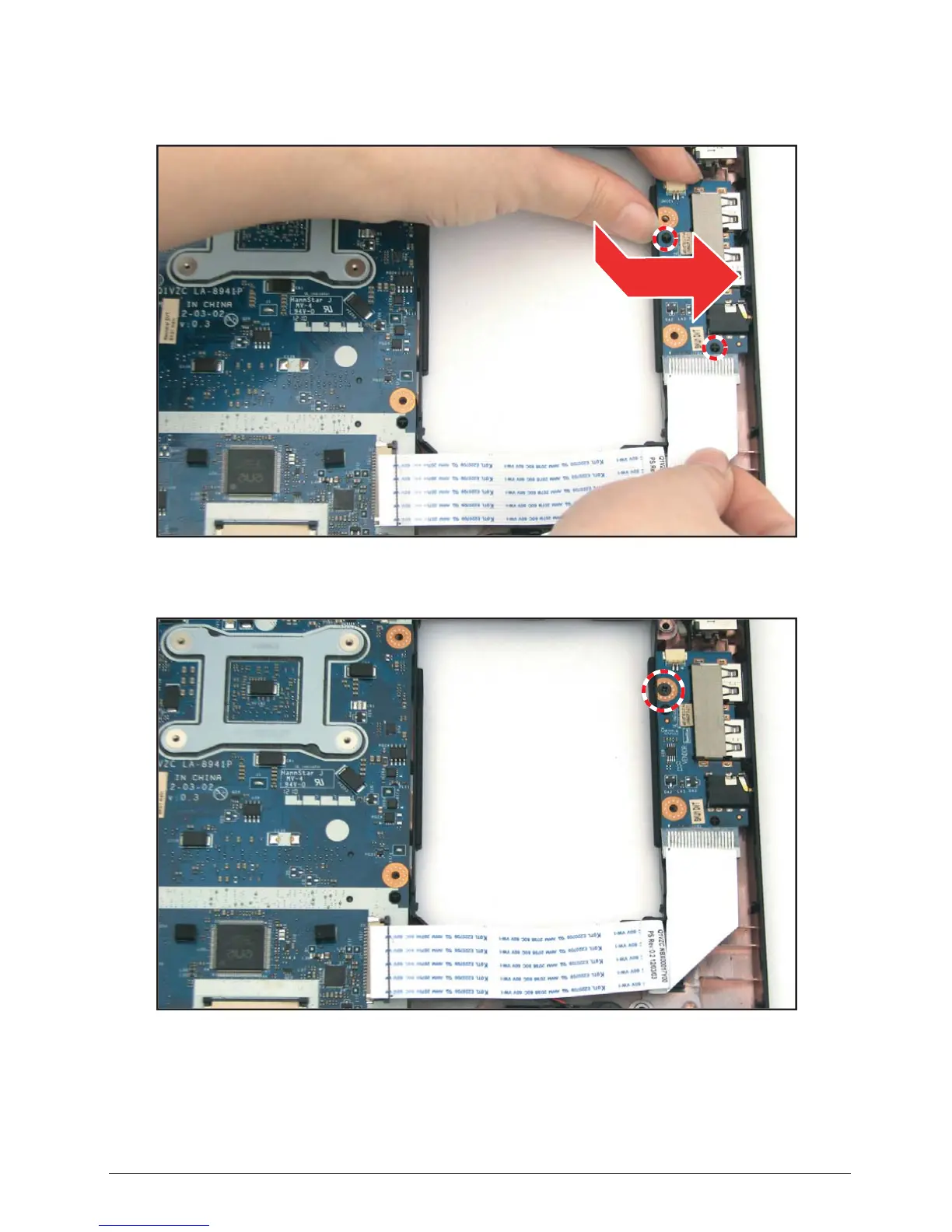

1. Align and place the IO board to the lower case by the marked areas below.
Figure 5:59. Installing the IO Board
2. Attach the screw to secure the IO board to the lower case.
Figure 5:60. Installing the IO Board Screw
