Service and Maintenance
5-92
WLAN Antenna (Main) Removal
Prerequisite
:
LCD Panel Brackets Removal
on p
age
5-88
1.
Remove the main antenna cable fr
om the guides on the LCD cover
.

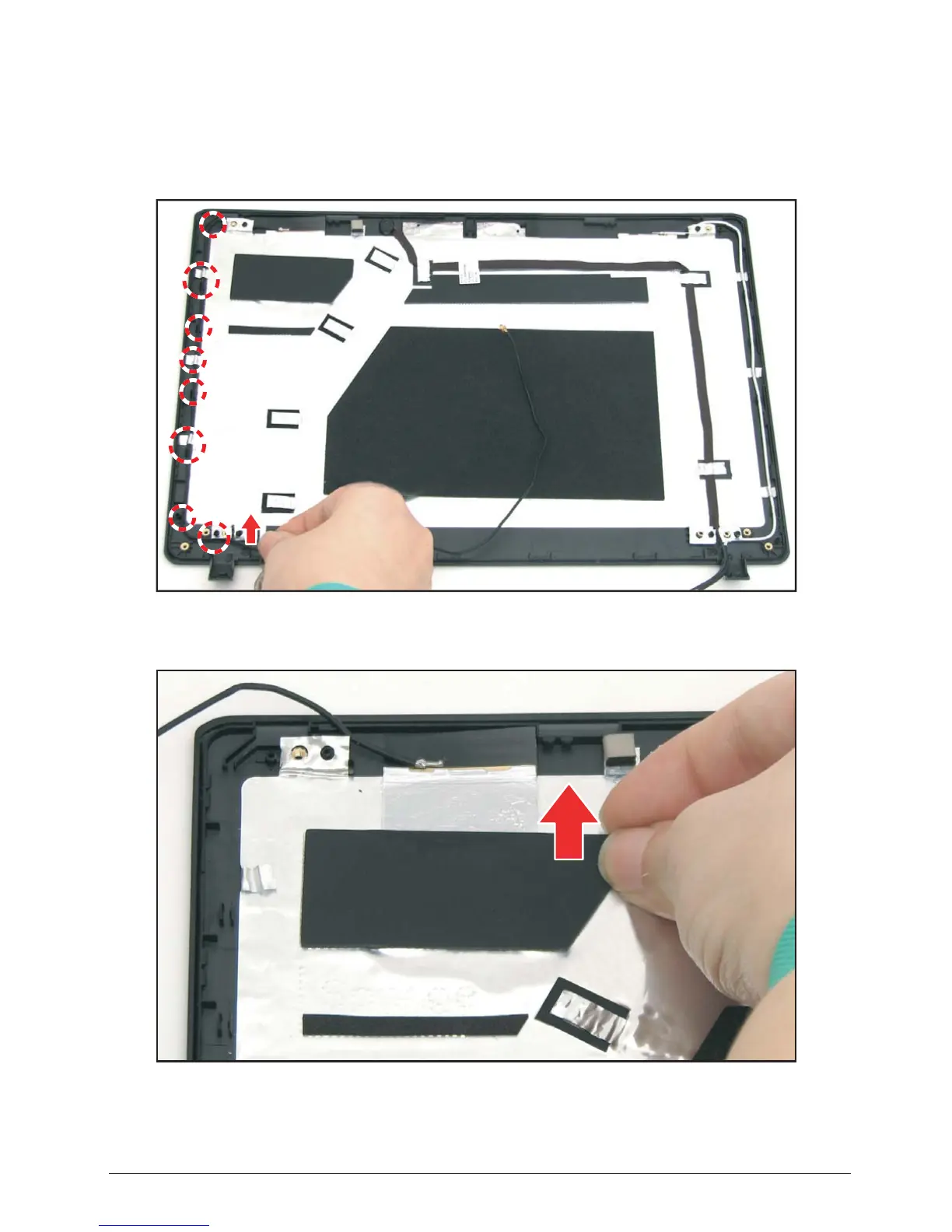

Figure 5:136. Removing the Ma
in Antenna (1 of 3)
2.
Remove the mylar
.
Figure 5:137. Removing the Ma
in Antenna (2 of 3)
186
188
