5-31
Service and Maintenance
Upper Case Removal
Prerequisite
:
HDD Module Removal
on page
5-
15
Fan Removal
on p
a
ge
5-21
DIMM Module Removal
on page
5-25
WLAN Module Remo
val
on pag
e
5-27

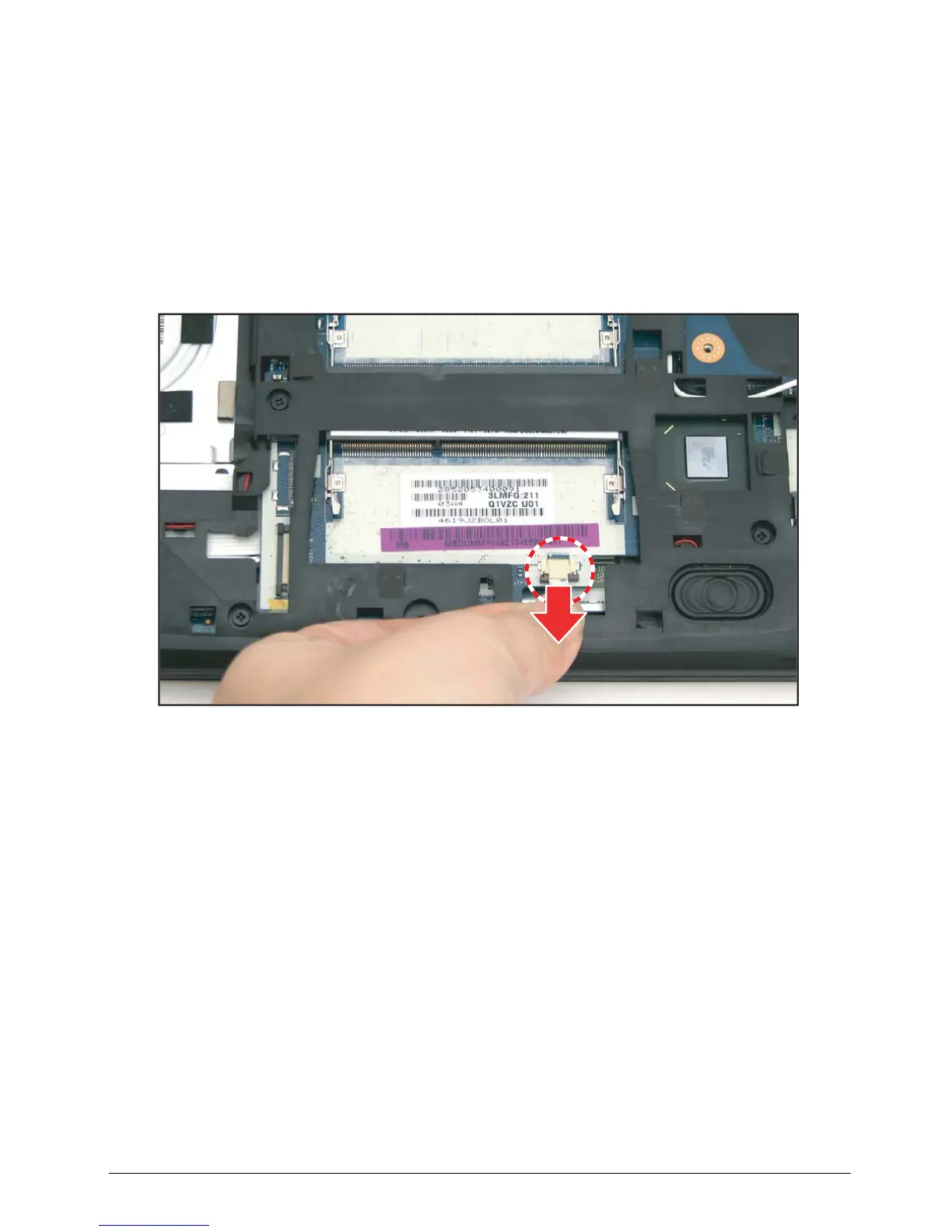

1.
Push the connector clip
s down and disconnect the touchp
ad cable from the mainboard
connector
.
Figure 5:39. Disconnectin
g the T
ouchpad Cable
125
127
