4 Chapter 1

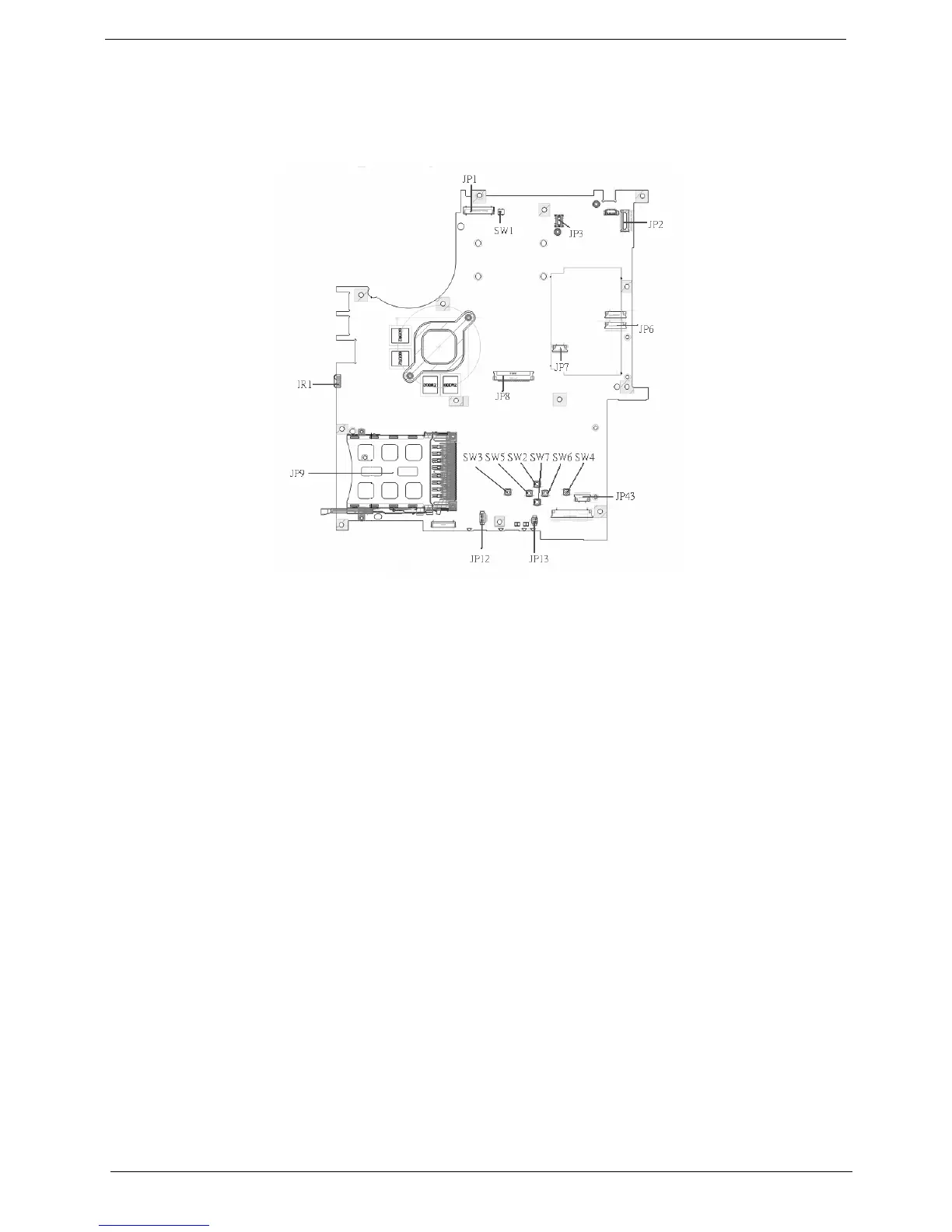

Board Layout
Top View
1 JP1 LCD Connector 10 SW7 Touchpad Down Button
2 SW1 Lid Switch 11 SW2 Touchpad Up Button
3 JP3 MDC Connector 12 SW5 Touchpad Left Button
4 JP2 Power Button Connector 13 SW3 Touchapd Left Button
5 JP6 Media Board Connector 14 JP13 Internal Microphone Connector
6 JP7 Touchpad Board Connector 15 JP12 Internal Speaker Connector
7 JP43 SIM Card Connector 16 JP9 PCMCIA Socket
8 SW4 Touchpad Right Button 17 IR1 FIR Module
9 SW6 Touchpad Left Button 18 JP8 Internal Keyboard Connector
To Next Page
