Acer Aspire 5610 Series Service Guide

58 Chapter 3

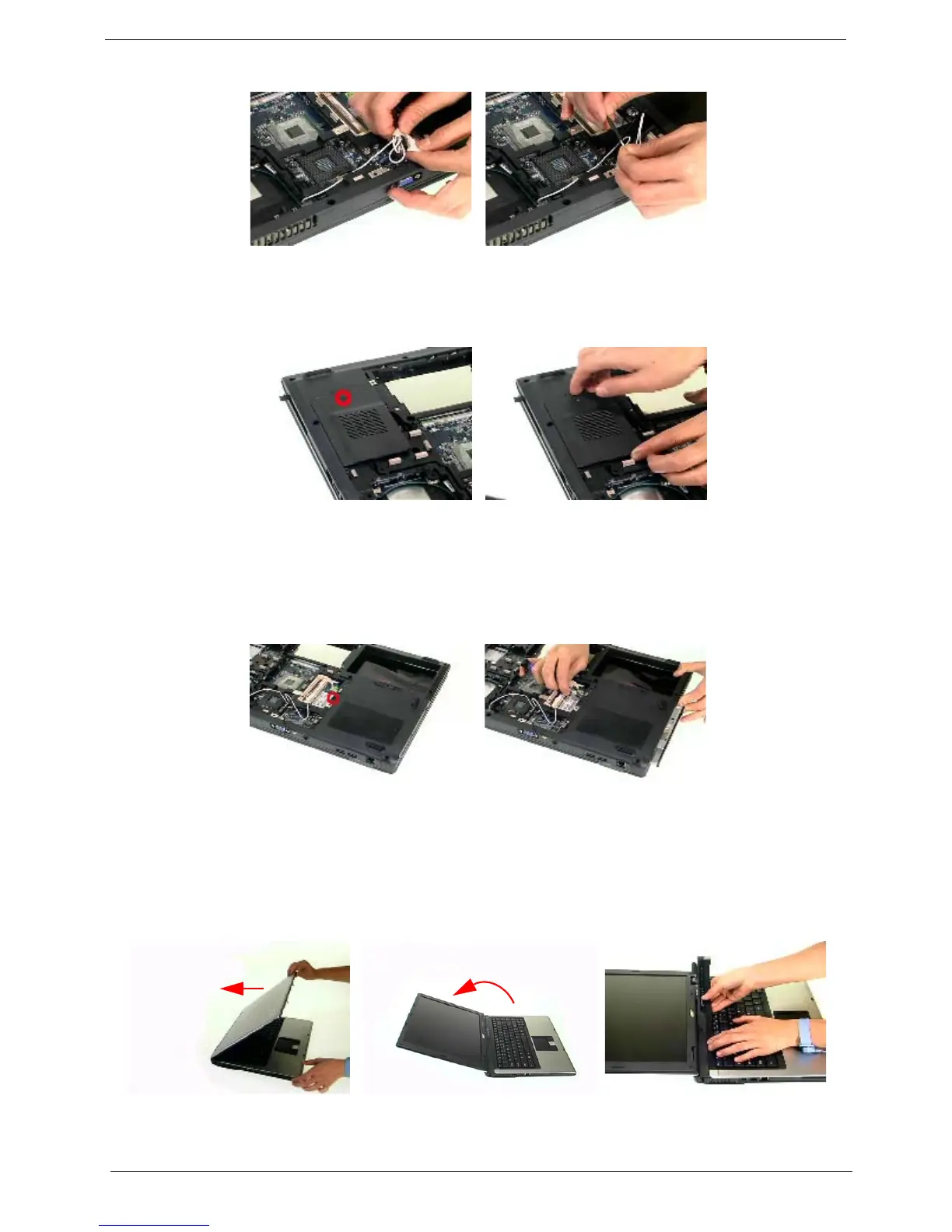

14. Remove the screw holding the mini cover.
15. Detach the mini cover from the main unit.
Removing the ODD Module
1. First, remove the screw fastening the ODD module as shown.
2. Push the ODD module outwards then remove it.
Removing the LCD Module
1. Open the LCD module as shown (See the left and the middle picture).
2. Detach the middle cover from the main unit carefully.
3. Remove the screw fastening the keyboard.
4. Then turn over the keyboard as shown.

Acer Aspire 5610 Series Specifications

General

Graphics	Intel GMA 950
Optical Drive	DVD-Super Multi double-layer drive
Wireless	802.11a/b/g
Battery	6-cell Li-ion
Chipset	Mobile Intel 945GM Express
Weight	2.8 kg
RAM	Up to 4 GB DDR2
Storage	120 GB HDD
Display	15.4" WXGA (1280 x 800)
Operating System	Windows XP Home
LAN	10/100 Mbps Ethernet
Ports	4 x USB 2.0, VGA, S-video, headphone/microphone jacks, Ethernet, modem
Processor	Intel Core Duo / Core Solo
