Acer Aspire 5610 Series Service Guide

14 Chapter 1

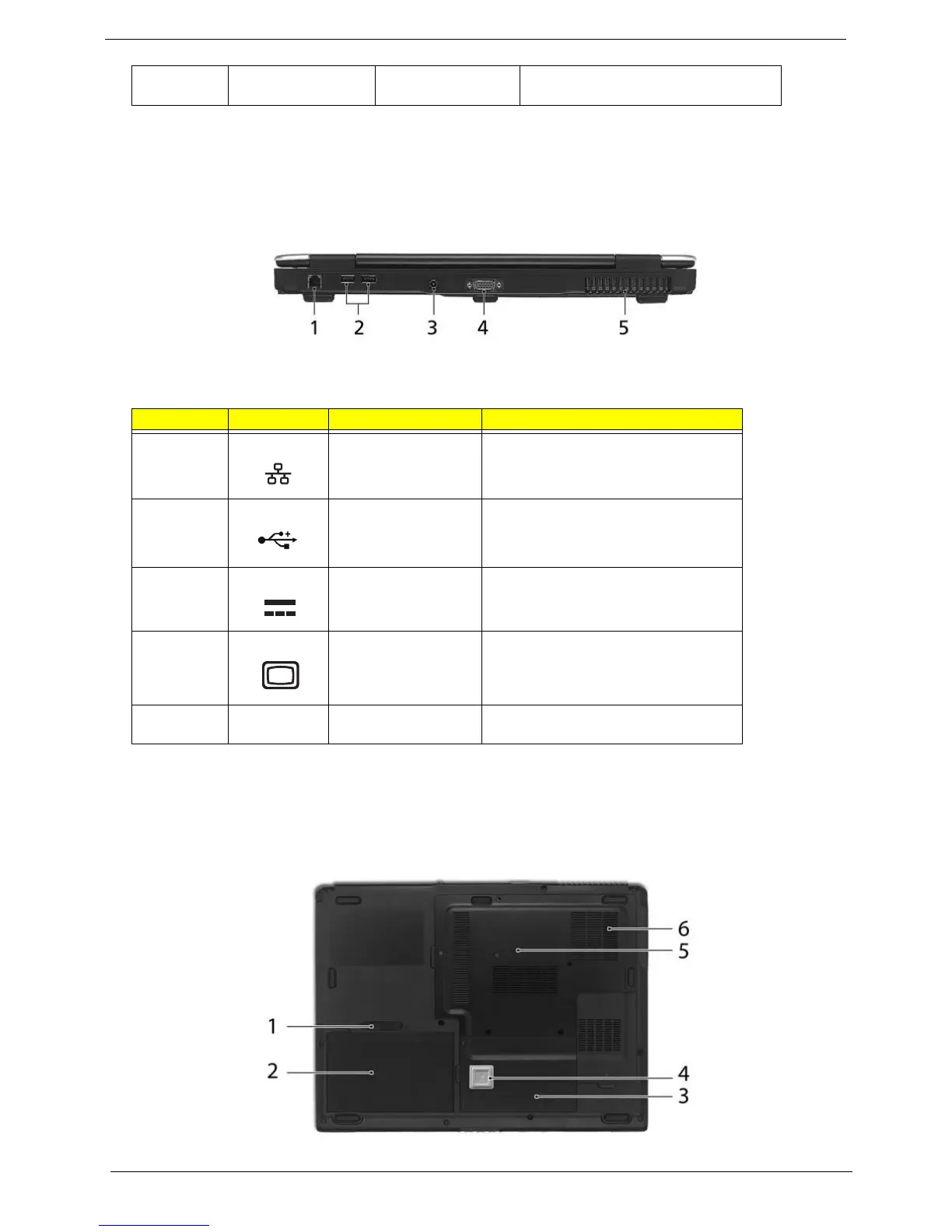

Rear Panel
Aspire 5610/TravelMate 4200:
Base view
Aspire 5610/TravelMate 4200:
4 Emergency eject hole Ejects the optical drive tray when the
comptuer is turned off.
# Icon Item Description
1 Ethernet (RJ-45) port Connects to an Ethernet 10/100/1000-
based network (for selected models).
2 Two USB 2.0 ports Connects to USB 2.0 devices (e.g., USB
mouse, USB camera).
3 DC-in jack Connects to an AC adapter.
4 External display
(VGA) port
Connects to a display device(e.g.,
external monitor, LCD projector).
5 Ventilation slots Enable the computer to stay cool, even
after prolonged use.

Acer Aspire 5610 Series Specifications

General

Graphics	Intel GMA 950
Optical Drive	DVD-Super Multi double-layer drive
Wireless	802.11a/b/g
Battery	6-cell Li-ion
Chipset	Mobile Intel 945GM Express
Weight	2.8 kg
RAM	Up to 4 GB DDR2
Storage	120 GB HDD
Display	15.4" WXGA (1280 x 800)
Operating System	Windows XP Home
LAN	10/100 Mbps Ethernet
Ports	4 x USB 2.0, VGA, S-video, headphone/microphone jacks, Ethernet, modem
Processor	Intel Core Duo / Core Solo
