Acer Aspire 5610 Series Service Guide

60 Chapter 3

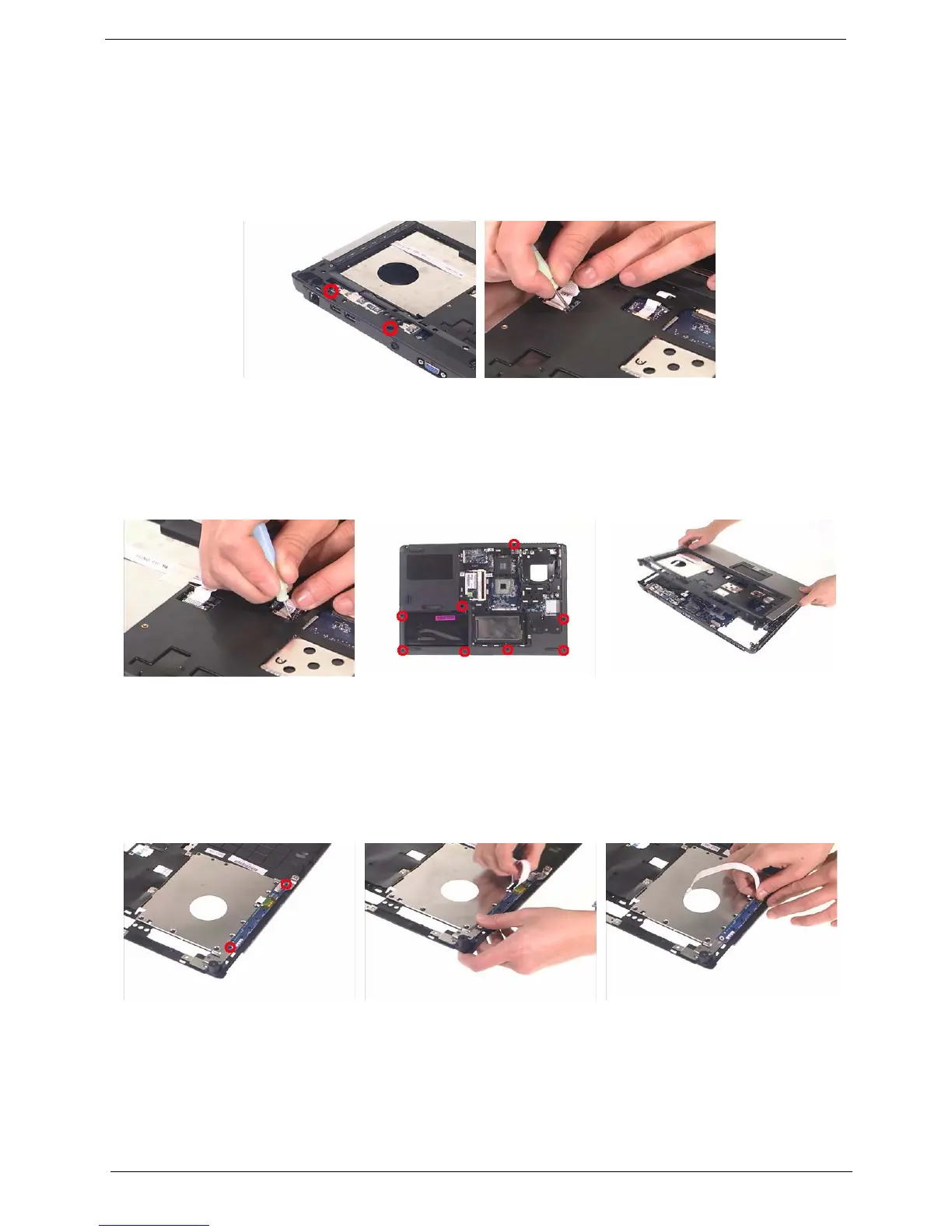

Disassembling the Main Unit
Separate the Main Unit Into the Upper and the Lower Case Assembly
1. Remove two screws fastening the upper case assembly to the lower case assembly.
2. Disconnect the LED board cable from the main board.
3. Disconnect the touchpad cable from the main board.
4. Remove eight screws fastening the upper case assembly and the lower case assembly on the bottom as
shown.
5. Detach the upper case assembly carefully.
Disassembling the Upper Case Assembly
6. Remove the two screws fastening the media board.
7. Take out the media board cable from the lower case as shown.
8. Detach the media board from the upper case carefully.
NOTE: Only Aspire 5650 series have media board.
9. Tear off the mylar on top of the touchpad bracket.
10. Remove the screws holding the touchpad bracket.
11. Then detach the touchpad bracket from the uppwer case.

Acer Aspire 5610 Series Specifications

General

Graphics	Intel GMA 950
Optical Drive	DVD-Super Multi double-layer drive
Wireless	802.11a/b/g
Battery	6-cell Li-ion
Chipset	Mobile Intel 945GM Express
Weight	2.8 kg
RAM	Up to 4 GB DDR2
Storage	120 GB HDD
Display	15.4" WXGA (1280 x 800)
Operating System	Windows XP Home
LAN	10/100 Mbps Ethernet
Ports	4 x USB 2.0, VGA, S-video, headphone/microphone jacks, Ethernet, modem
Processor	Intel Core Duo / Core Solo
