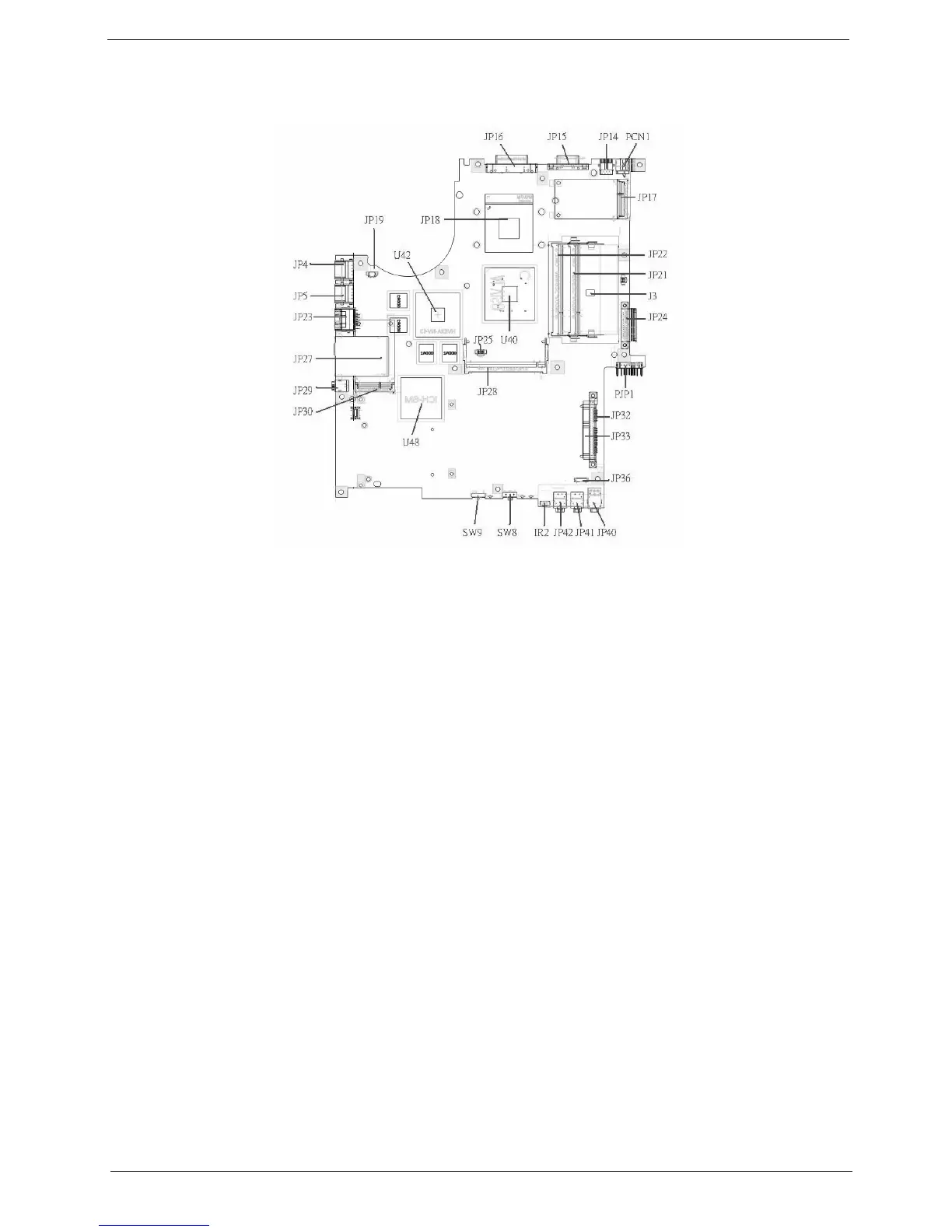

Bottom View
NOTE: This is engineering sample. The image above may not be exactly the same as the real main board you
get.
1 JP19 FAN Connector 17 JP40 Headphone/SPDIF Jack
2 U42 VGA Chipset 18 JP41 Line-In Jack
3 JP18 CPU Socket 19 JP42 Microphone-in Jack
4 JP16 DVI Connector 20 IR2 CIR Module
5 JP15 CRT Connector 21 SW8 Wireless LAN Switch
6 JP14 TV-Out Connector 22 SW9 Bluetooth and 3G Switch
7 PCN1 DC-IN Jack 23 U48 South Bridge Chipset
8 JP17 Mini Card Connector 24 JP30 Mini Card Connector
9 JP22 DDRII so-DIMM Socket 25 JP29 IEEE 1394 Connector
10 JP21 DDRII so-DIMM Socket 26 JP27 5 IN1 Socket
11 J3 Clear CMOS Jumper 27 JP23 RJ45 Connector
12 JP24 ODD Connector 28 JP5 USB Connector
13 PJP1 Battery Connector 29 JP4 USB Connector
14 JP32 HDD Connector (SATA) 30 JP28 MINIPCI Connector (TV-Tuner)
15 JP33 HDD Connector (PATA) 31 JP25 FAN Connector
16 JP36 Bluetooth Connector 32 U40 North Bridge Chipset
