Acer Aspire 5610 Series Service Guide

Chapter 5 85

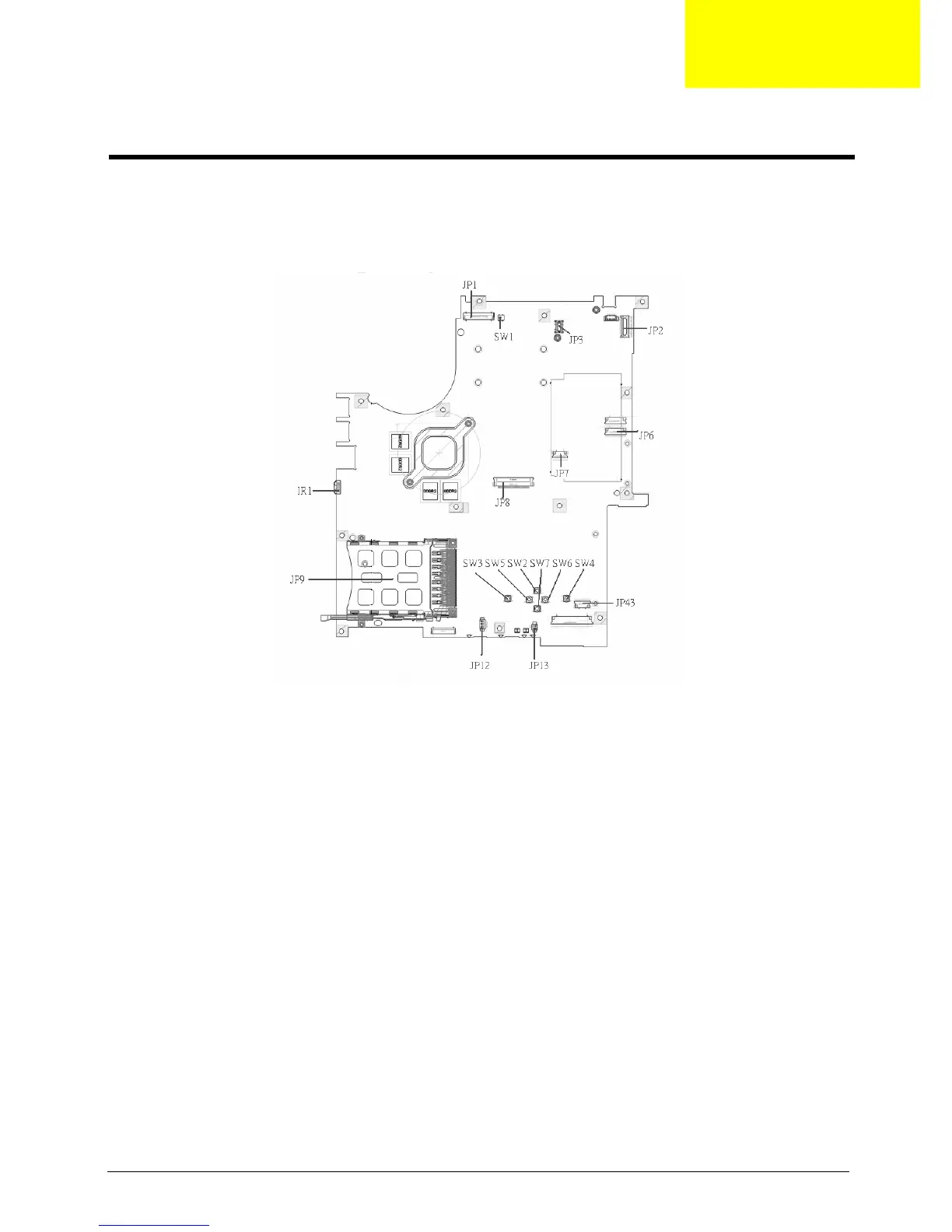

Board Layout
Top View
1 JP1 LCD Connector 10 SW7 Touchpad Down Button
2 SW1 Lid Switch 11 SW2 Touchpad Up Button
3 JP3 MDC Connector 12 SW5 Touchpad Left Button
4 JP2 Power Button Connector 13 SW3 Touchapd Left Button
5 JP6 Media Board Connector 14 JP13 Internal Microphone Connector
6 JP7 Touchpad Board Connector 15 JP12 Internal Speaker Connector
7 JP43 SIM Card Connector 16 JP9 PCMCIA Socket
8 SW4 Touchpad Right Button 17 IR1 FIR Module
9 SW6 Touchpad Left Button 18 JP8 Internal Keyboard Connector
Jumper and Connector Locations
Chapter 5

Acer Aspire 5610 Series Specifications

General

Graphics	Intel GMA 950
Optical Drive	DVD-Super Multi double-layer drive
Wireless	802.11a/b/g
Battery	6-cell Li-ion
Chipset	Mobile Intel 945GM Express
Weight	2.8 kg
RAM	Up to 4 GB DDR2
Storage	120 GB HDD
Display	15.4" WXGA (1280 x 800)
Operating System	Windows XP Home
LAN	10/100 Mbps Ethernet
Ports	4 x USB 2.0, VGA, S-video, headphone/microphone jacks, Ethernet, modem
Processor	Intel Core Duo / Core Solo
