3-36 Machine Maintenance Procedures
RJ45 Module Removal 0
Prerequisite:
Upper Cover Removal

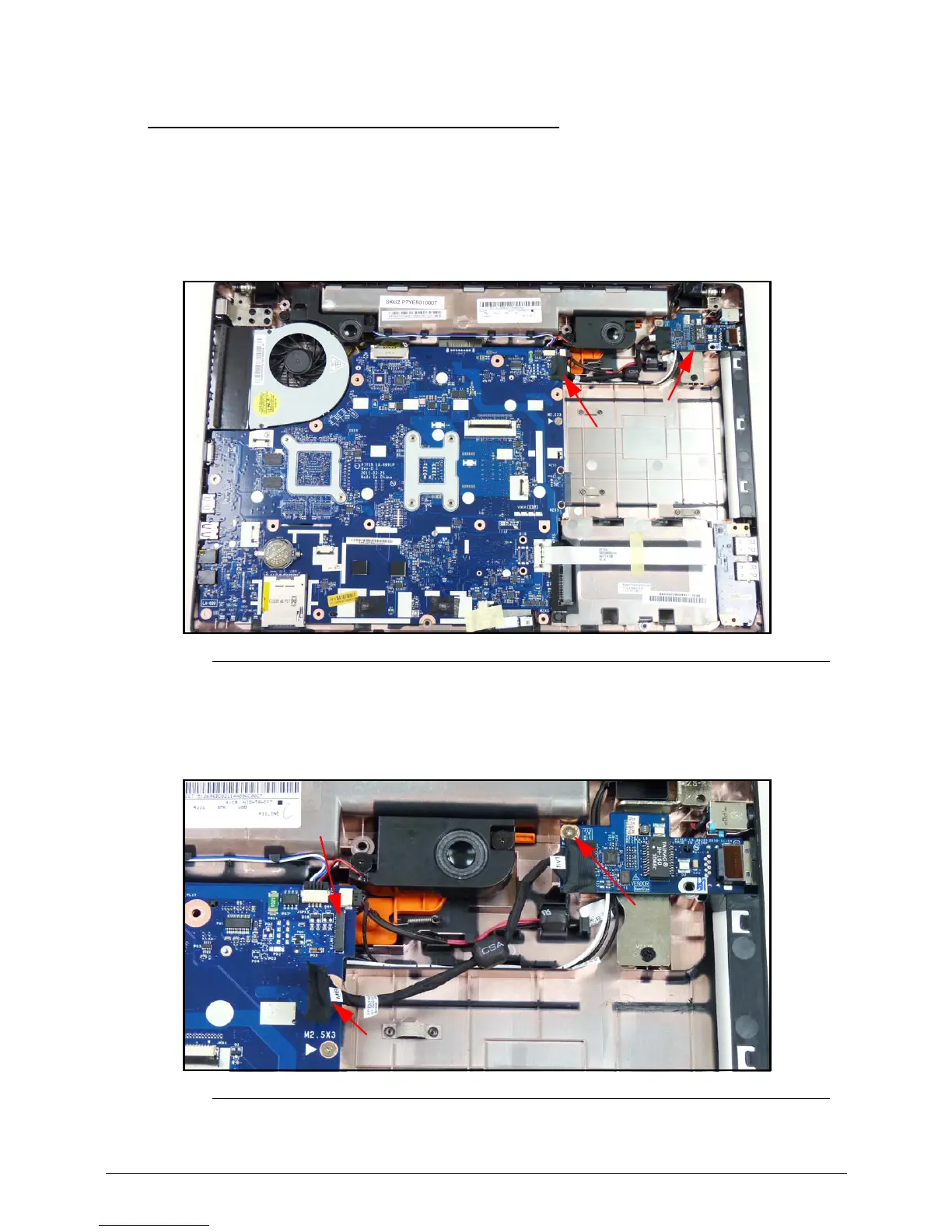

1. Locate RJ45 module (A) on lower cover. (Figure 3-44)
Figure 3-44. RJ45 Module
2. Remove tape (B) securing RJ45 cable to mainboard connector.
3. Disconnect RJ45 cable (C) (disconnected) from mainboard connector (D). (Figure 3-45)
Figure 3-45. RJ45 Cable / Connector
4. Remove screw (E) from board.
A
B
C
D
E
