3-50 Machine Maintenance Procedures
Thermal Module Removal 0
Prerequisite:
Mainboard Removal

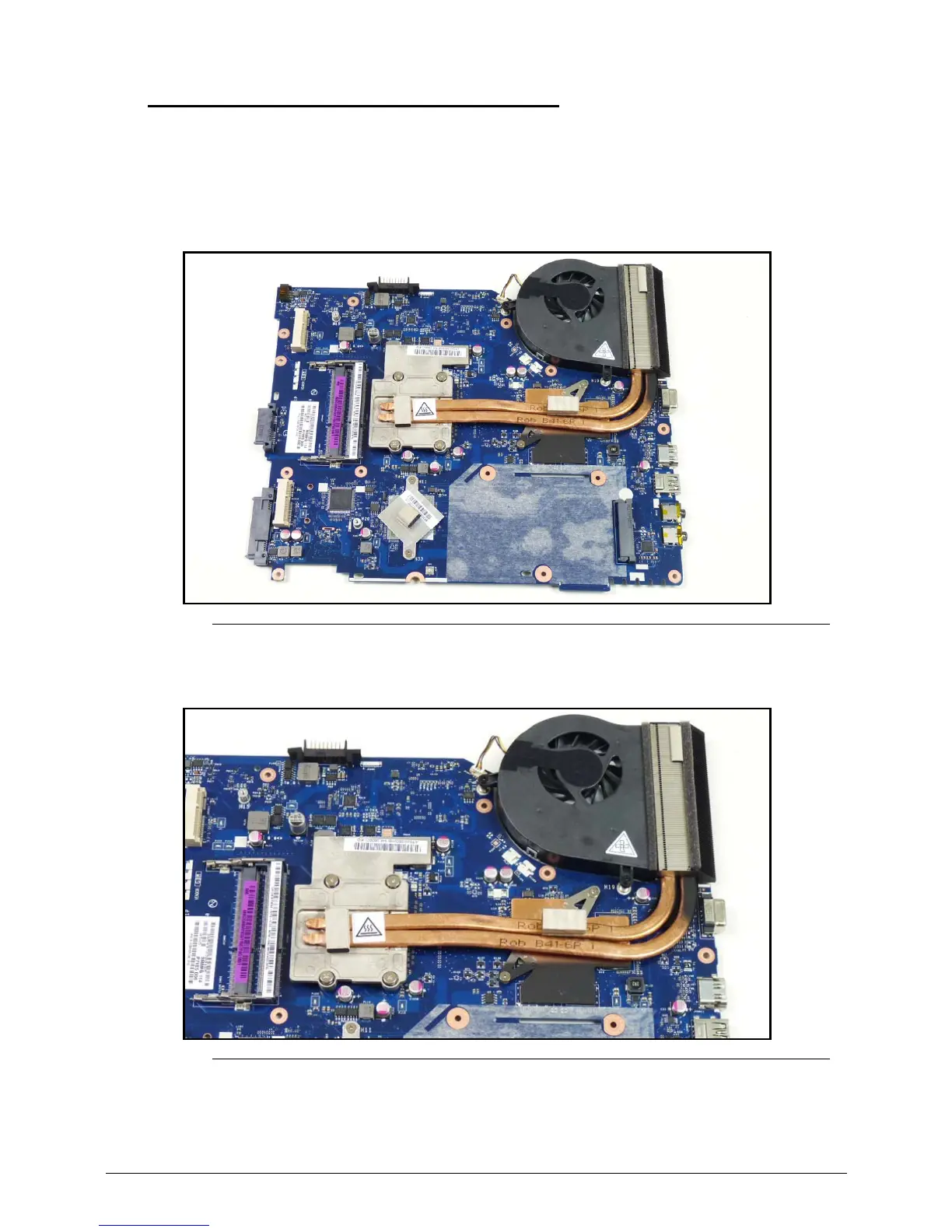

1. Locate the thermal module (A) on the mainboard. (Figure 3-66)
Figure 3-66. Thermal Module
2. Remove CPU screws (B1 to B4) from module. (Figure 3-67)
Figure 3-67. Thermal Module Screws
3. Remove VGA screws (C5 to C6) from module.
4. Remove thermal module (A) from mainboard.
A
B1
B2
B3
B4
C5
C6
A
