Acer Aspire Z1620 User Manual

94
CPU Removal
Prerequisite:
Thermal Module Removal
1. Locate CPU module (A) on mainboard. (Figure 3-44)
2. Release lever (B) from latch (C).

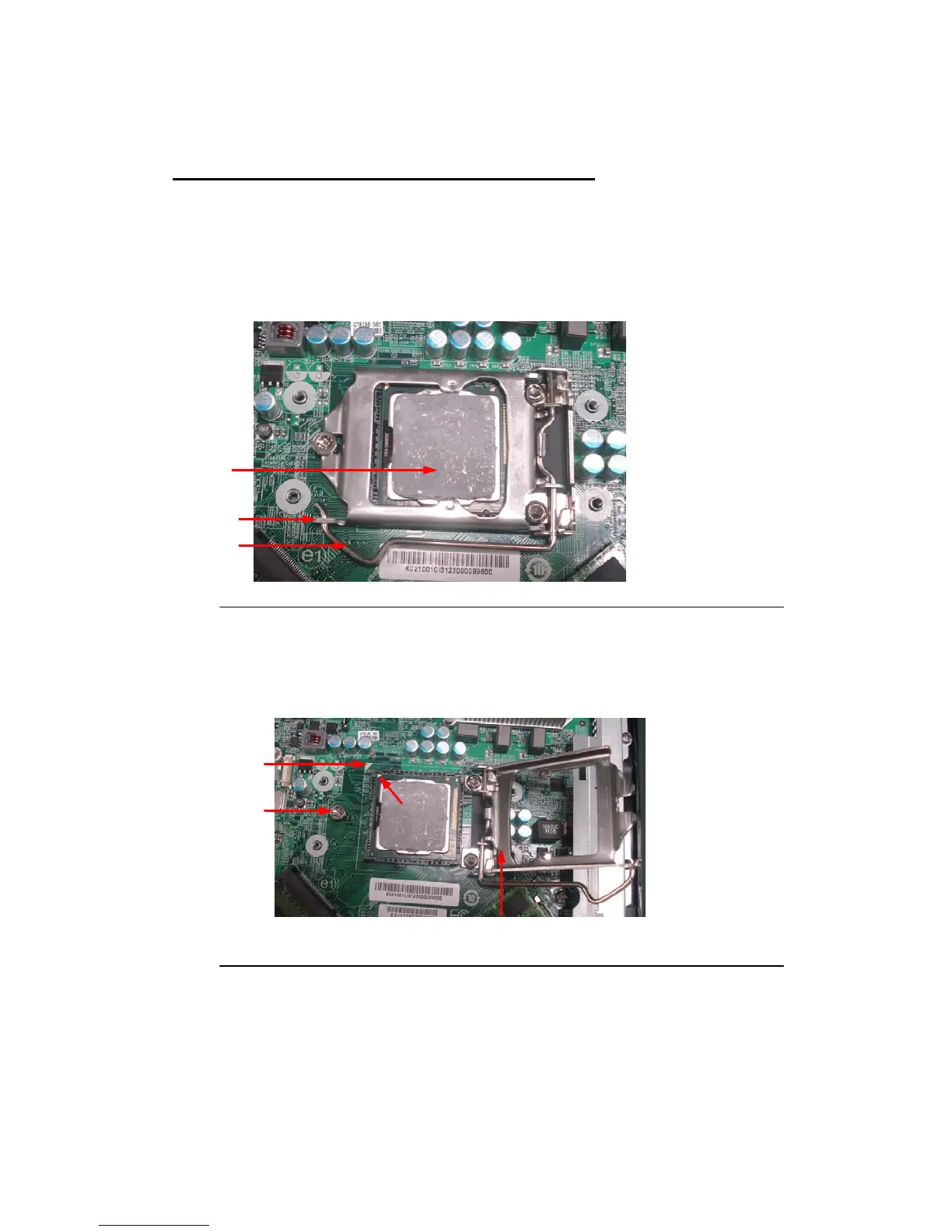

Figure 3-44. Locate CPU module on mainboard.
3. Move lever until CPU holder (D) clears guide (E) and lifts open. (Figure 3-45)
4. Remove CPU from socket.
Figure 3-45. Remove CPU socket
A
B
C
D
E
G
F
