Speaker Module Removal
Prerequisite:
Mainframe Removal
1. Locate left (A) and right (B) speakers on front cover. (Figure 3-52)
2. Remove screws (C) from speakers.
3. Remove speaker cable (D) from guides.
4. Remove Speaker Module from front cover.

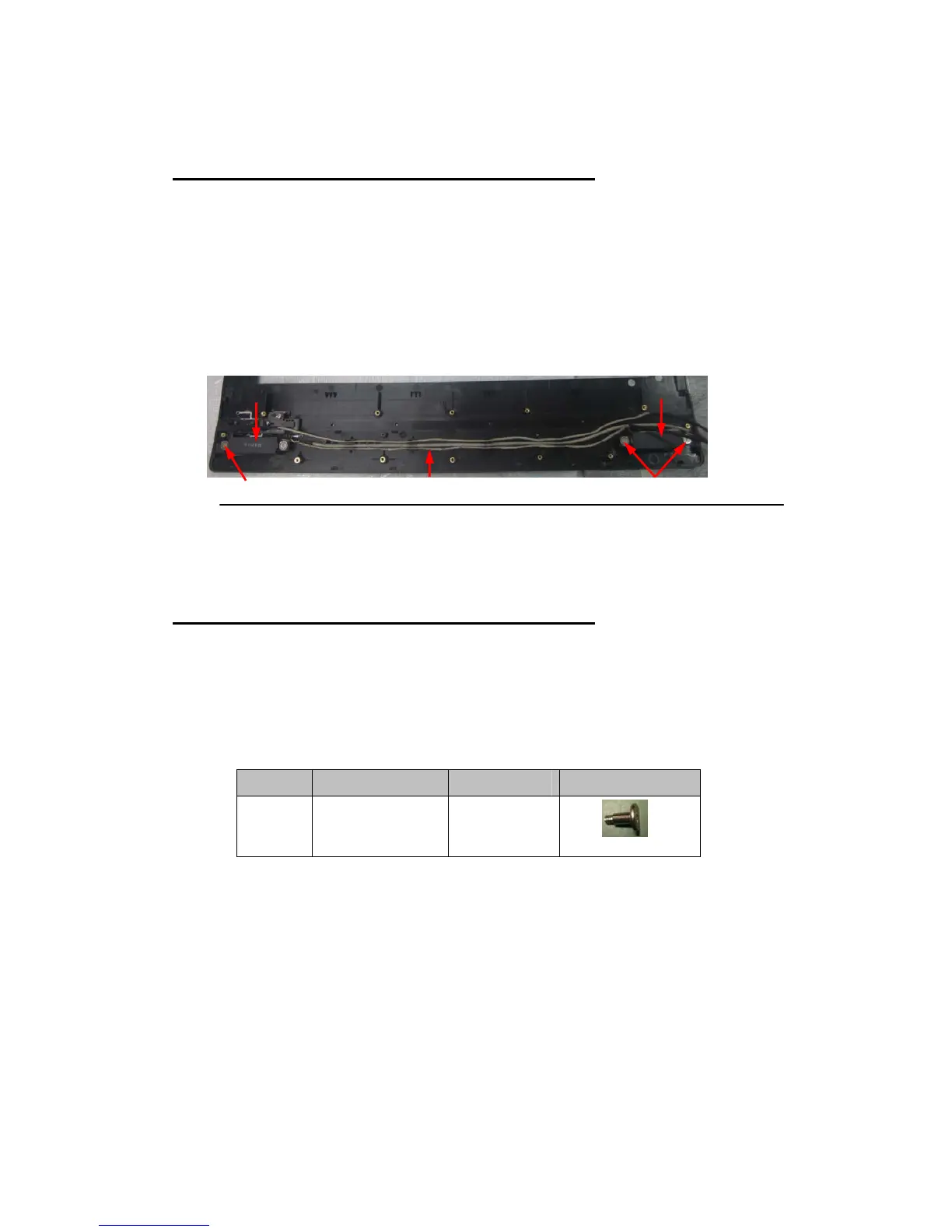

Figure 3-52. For CHIMEI panel
Speaker Module Installation
1. Align and install left (A) and right (B) speakers to front cover.(Figure 3-52)
2. Install and secure screws (C) to speakers.
3. Install speaker cable (D) to guides.
4. Install Main frame.
ID Size Quantity Screw Type
C 6#32x7.5mm 4
A B
C C D
