Thermal Module Removal
Prerequisite:
EMI TOP bracket Removal
1. Locate thermal module (A) on mainboard. (Figure 3-31)

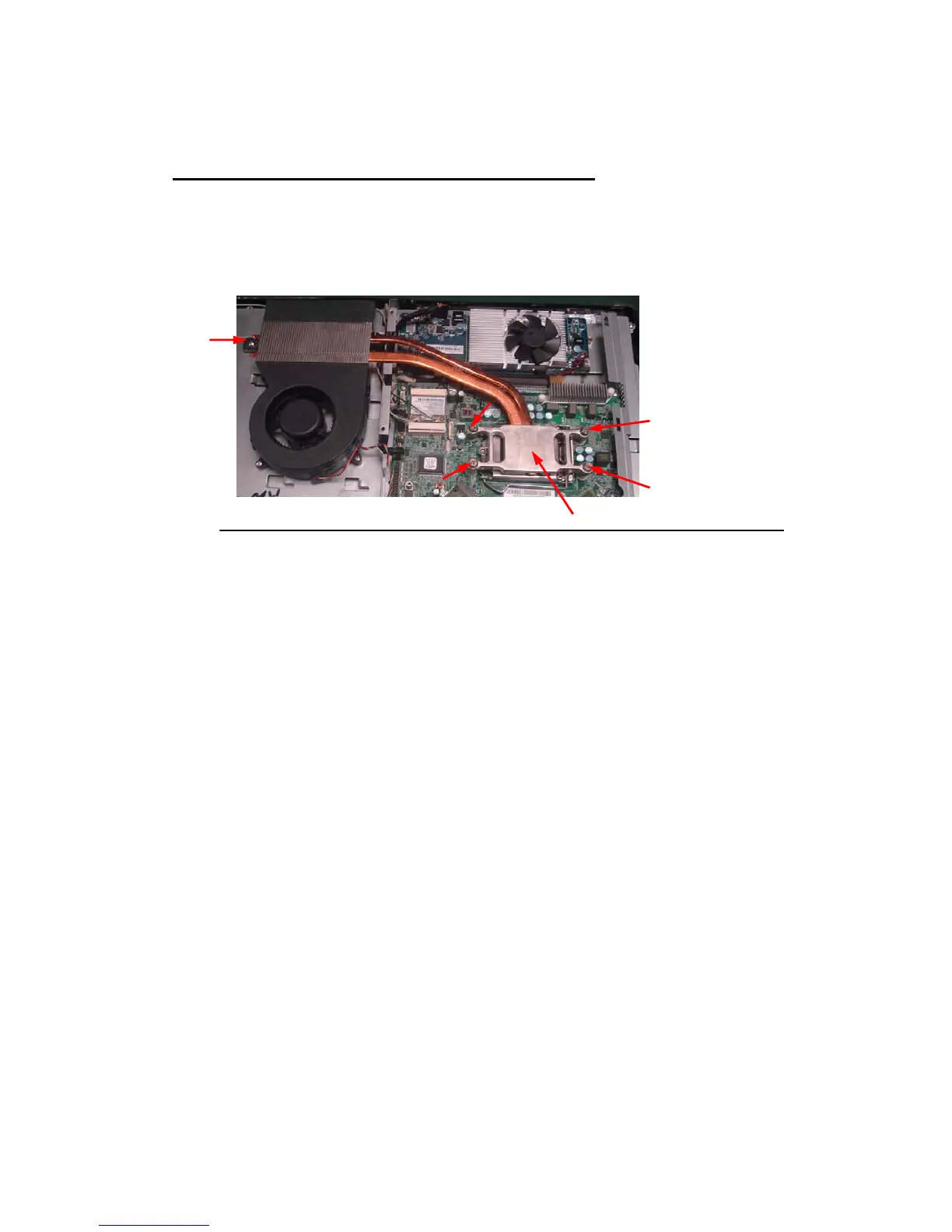

Figure 3-31. Remove thermal module
2. Loosen captive screws (B/1 - B/4) from mainboard.
3. Remove screws (C) from thermal module on main frame.
4. Remove thermal module (A) from mainboard.
B1
B4
C
B3
B2
A
