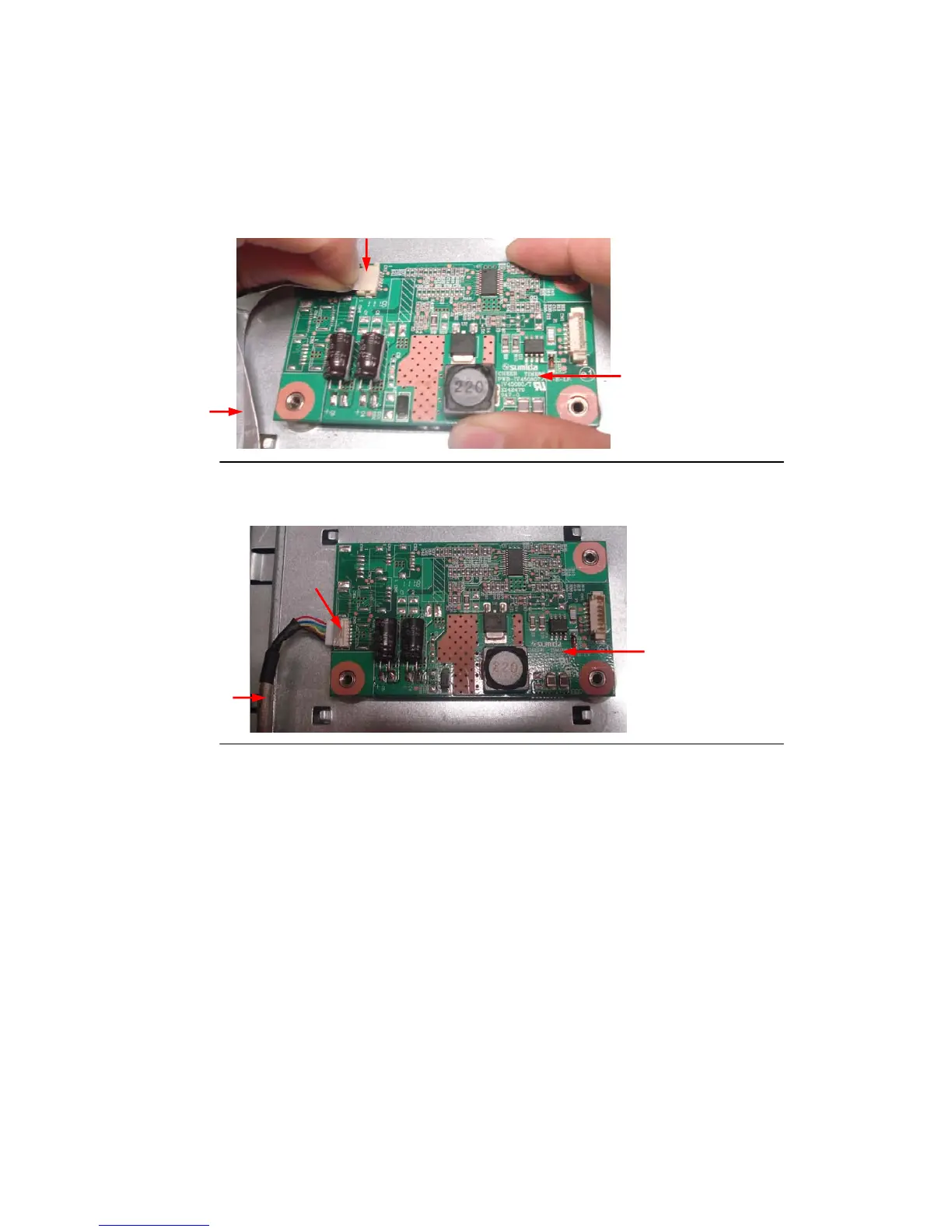

5. Disconnect Converter to LCD panel cable (K) from converter board (J ) connector (I)
(Figure 3-26-1/2)
Figure 3-26-1. For LG Panel
Figure 3-26-2. For CHIMEI Panel
6. Remove converter board from ODD bracket.
I
K
J
K
J
I
