This section is reserved to the After-sales
Service Centres only.
The board is found inside the unit and
requires disassembly.
DANGER! Only qualified maintenance
personnel can access it.

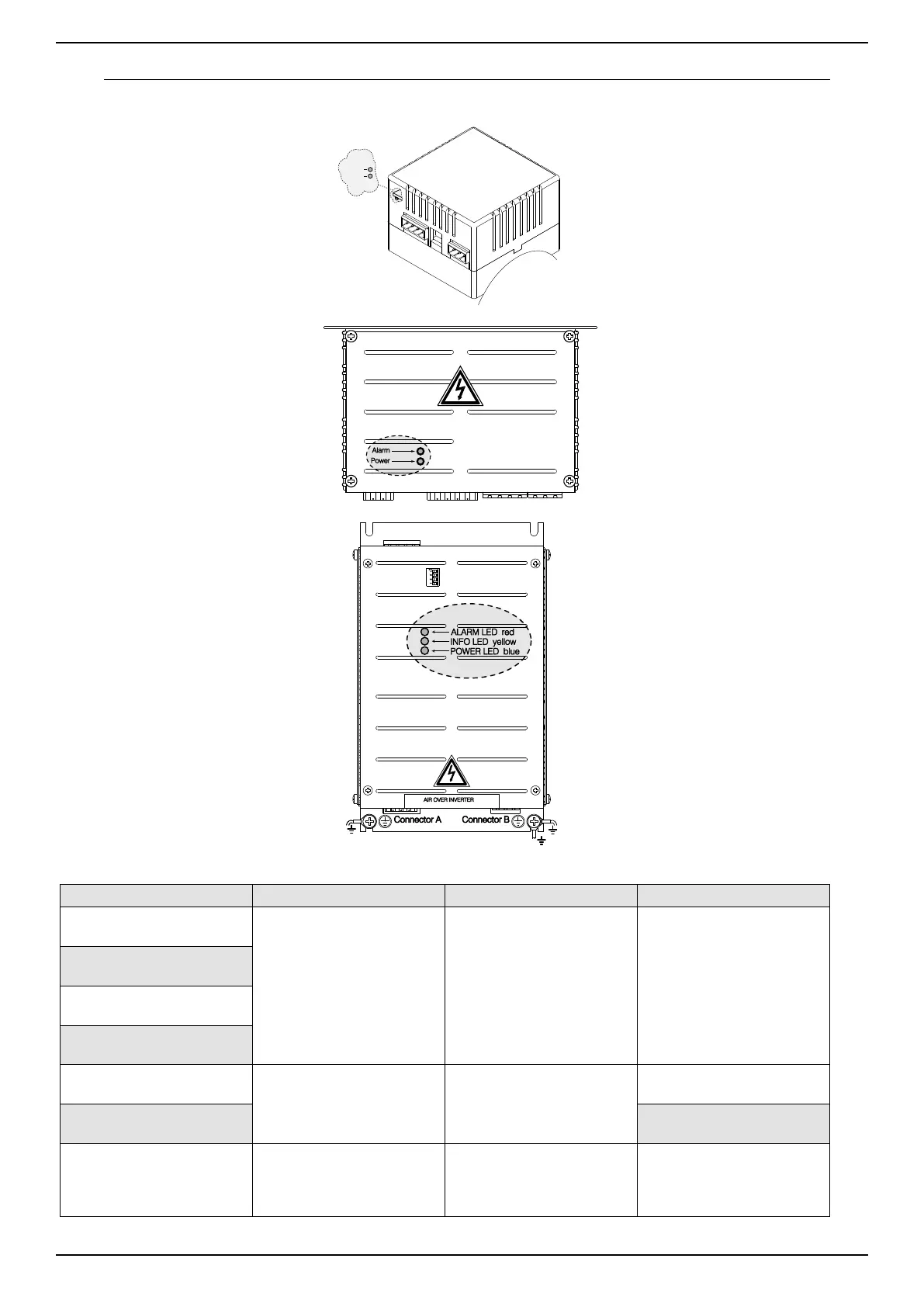

On the Inverter board there are 2 LED
status of the unit.
The following table indicates how to
decode the messages.
INDICATIONS NOTES
High temperature
Flashing ALARM led
3sec ON / 0.5sec OFF
After 1.5 min the ALARM led is
permanently on
Motor off
Auto-Restart alarm
If the conditions persist after
1.5 min, the alarm becomes
permanent:
- Alarm led on
- led ON
- the system switches off
Overvoltage
Overcurrent
Overload
Flashing ALARM led
0.5sec ON / 0.5sec OFF
Speed reduction
Power limitation
Safety control Temperature limitation
STOP Alarm led permanently ON Motor off
To reset the alarms:
LEDS
Alarm
Power
VED 030 I
VED 040 I
VED 130 I
VED 140 I
VED 230 I
VED 240 I
ALARM CODE
VED 330 I
VED 340 I
VED 530 I
VED 540 I
VED 532 I
VED 541 I
VED 730 I
VED 740 I
VED 732 I
VED 731 I
