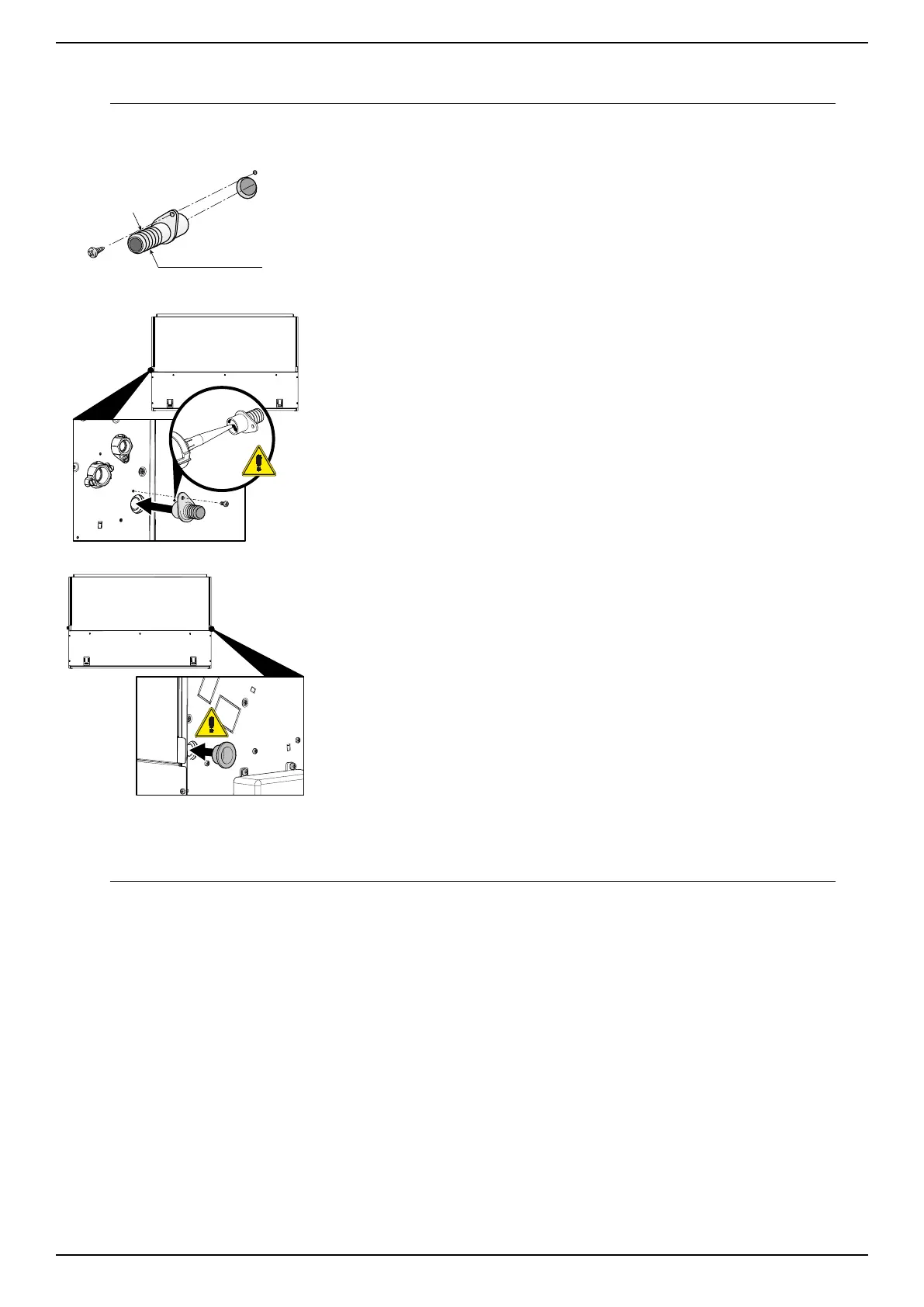

The fan coil tray has 2 condensate drains
on the right and left side.
We recommend using the condensate
drain fitting placed on the side of the
hydraulic connections.
Install the drain condensate drain fitting
supplied. Seal the connection between the
tray and the fitting with silicone.
Seal the drain that is not used.
Connect the tray fitting to the condensate
must be fixed to the tray fitting. The drain
fittings are designed to be fixed to hoses
with suitable inner diameter. Avoid the
application of greater loads and do not use
them for other purposes.
Make sure that the drain not used is
closed and does not leak.
The condensate drain network must be
properly sized and the pipelines must be
positioned in order to maintain a suitable
In the case of discharge to the sewer, it is
advisable to make a siphon which prevents
odours from returning into the environ-
ment.
Run an operating and condensate drain
system seal test by pouring water in the
tray.
Ø est. 20,5mm / 0.81”
CONDENSATE DRAIN CONNECTION
The VED_I unit is set up for connections
with air ducts.
To identify the position of the ducts, refer
to the drawing.
Connect the air channels to the fittings.
Fasten the channels with straps.
During operation, always leave the filter
mounted on the fan coil; otherwise the
dust in the air will dirty the coil surface.
