44 Install POINT I/O Modules
1734-OE2C Analog Current Output Module

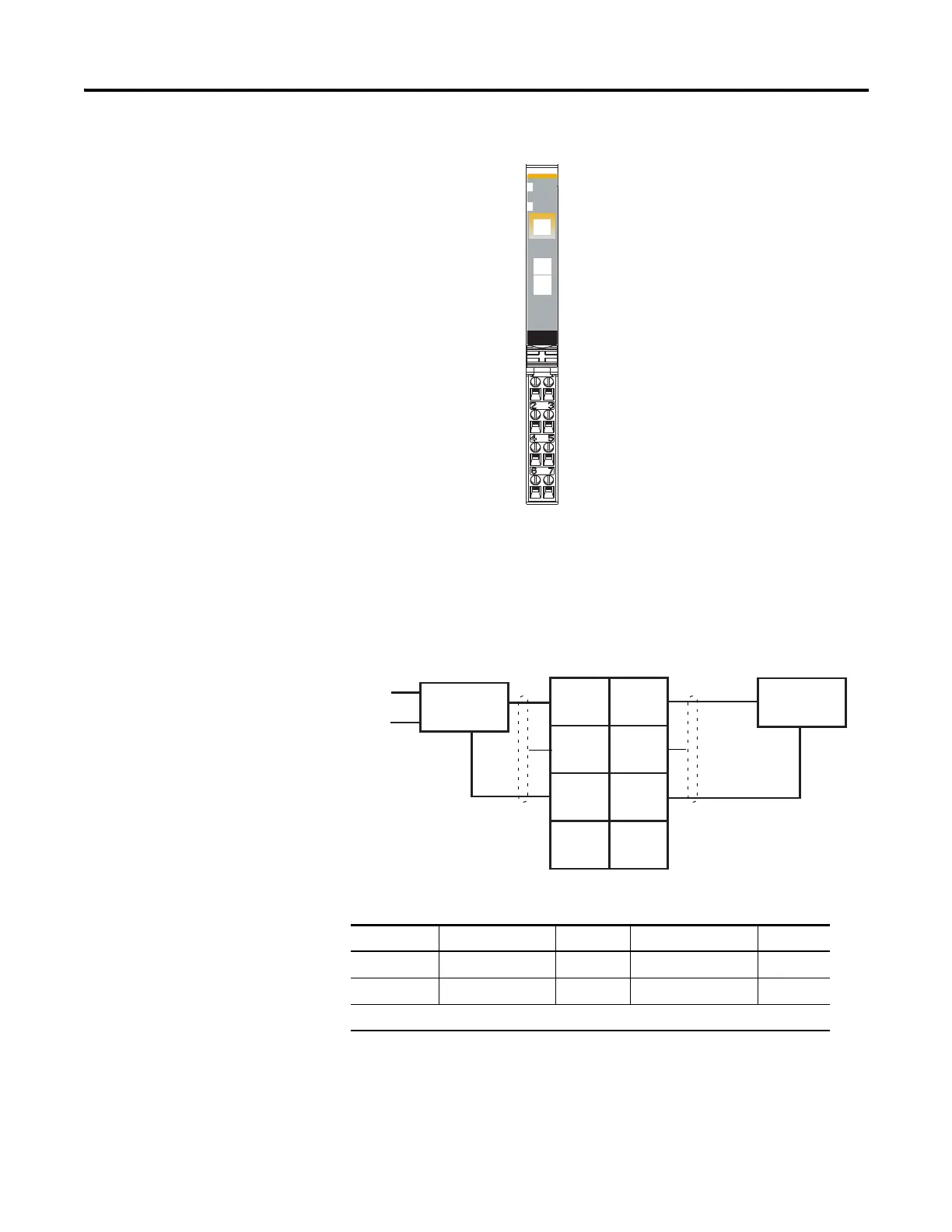

1734-OE2C Analog Current Output Module Wiring Diagram
Channel Current Output Common Chassis Ground Supply
00 42 6
11 53 7
12/24V DC power is provided by the internal power bus.
4-20mA
Analog
Output
Module
Status
Network
Status
1734
OE2C
NODE:
0
1
41974
Module Status
Network Status
Status of Output 0
Status of Output 1
Output 0 Connection
Chas Gnd
C
V
Output 1 Connection
Chas Gnd
C
V
ChasGnd = Chassis ground
C = Common
V = Supply
2-wire
Current Output
Device
Out = Output channel
Chas Gnd = Chassis ground
C = Common
V = Not used
AC or
DC
4-wire
Current Output
Device
0 1
2 3
4 5
6 7
Chas
Gnd
Chas
Gnd
C
C
V
V
Out 0
Out 1
