Execute Program
1. Set Micro800 controller to RUN mode.

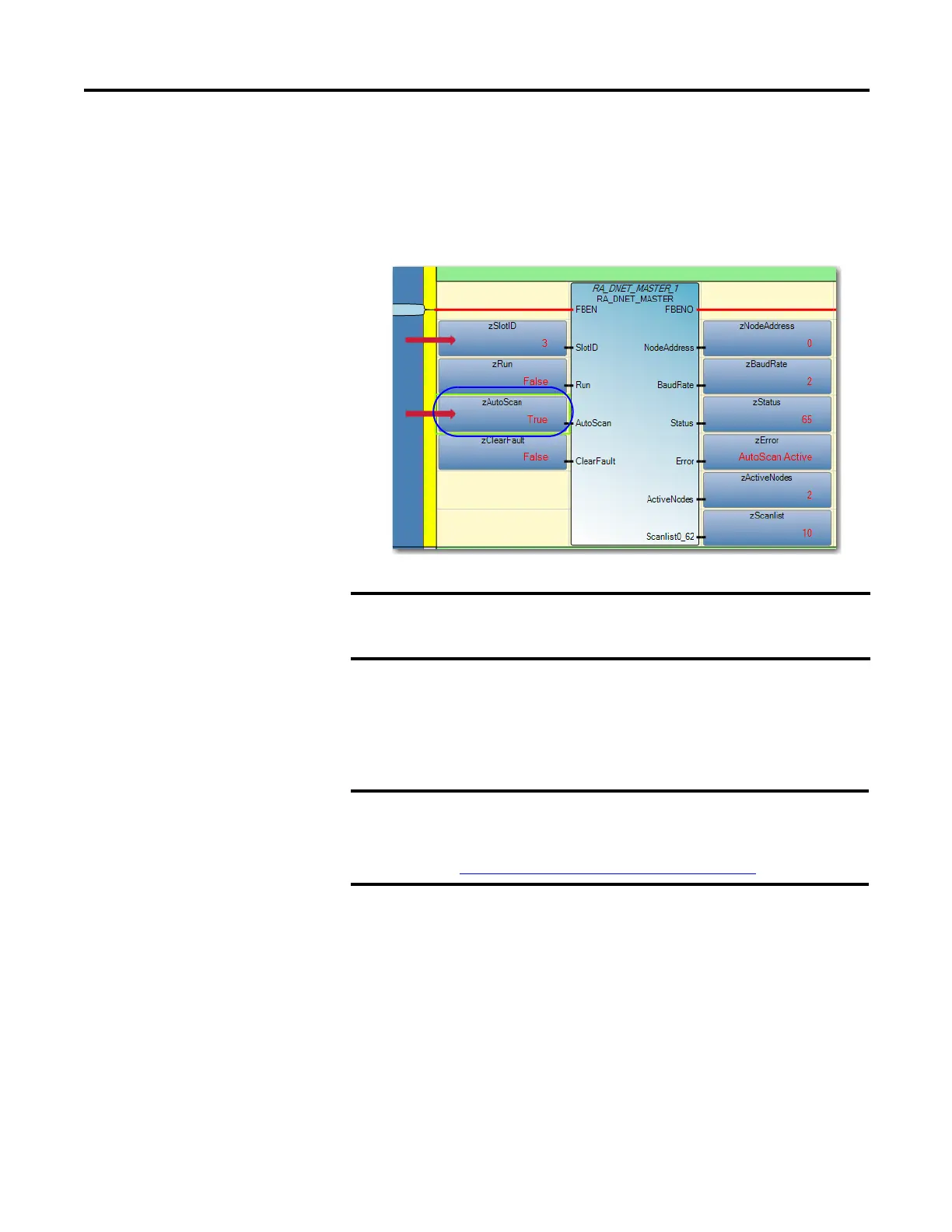

2. Enable AutoScan in the DeviceNet Scanner UDFB.
This will scan all the active nodes and populate the scan list.
3. Set the Scanner to RUN mode.
Quickstart Projects for
2080-MOT-HSC Plug-in
The following quickstart projects will show you how to write and use three user-
defined function blocks to configure and use your Micro800 High Speed
Counter plug-in.
IMPORTANT
It is recommended that when Autoscan is running for the nodes in
range, or for the connection to be established, the nodes should be idle
without any pre-occupied connections requests.
IMPORTANT
Quickstart Prerequisite
For the following quickstart projects, you first need to download the HSC
UDFBs and sample project from the Sample Code Library:
http://www.rockwellautomation.com/go/scmicro800
