Allen-Bradley 2080-IF4 User Manual

Rockwell Automation Publication 2080-UM004C-EN-E - March 2015 47
DeviceNet Plug-in – 2080-DNET20 Appendix 5

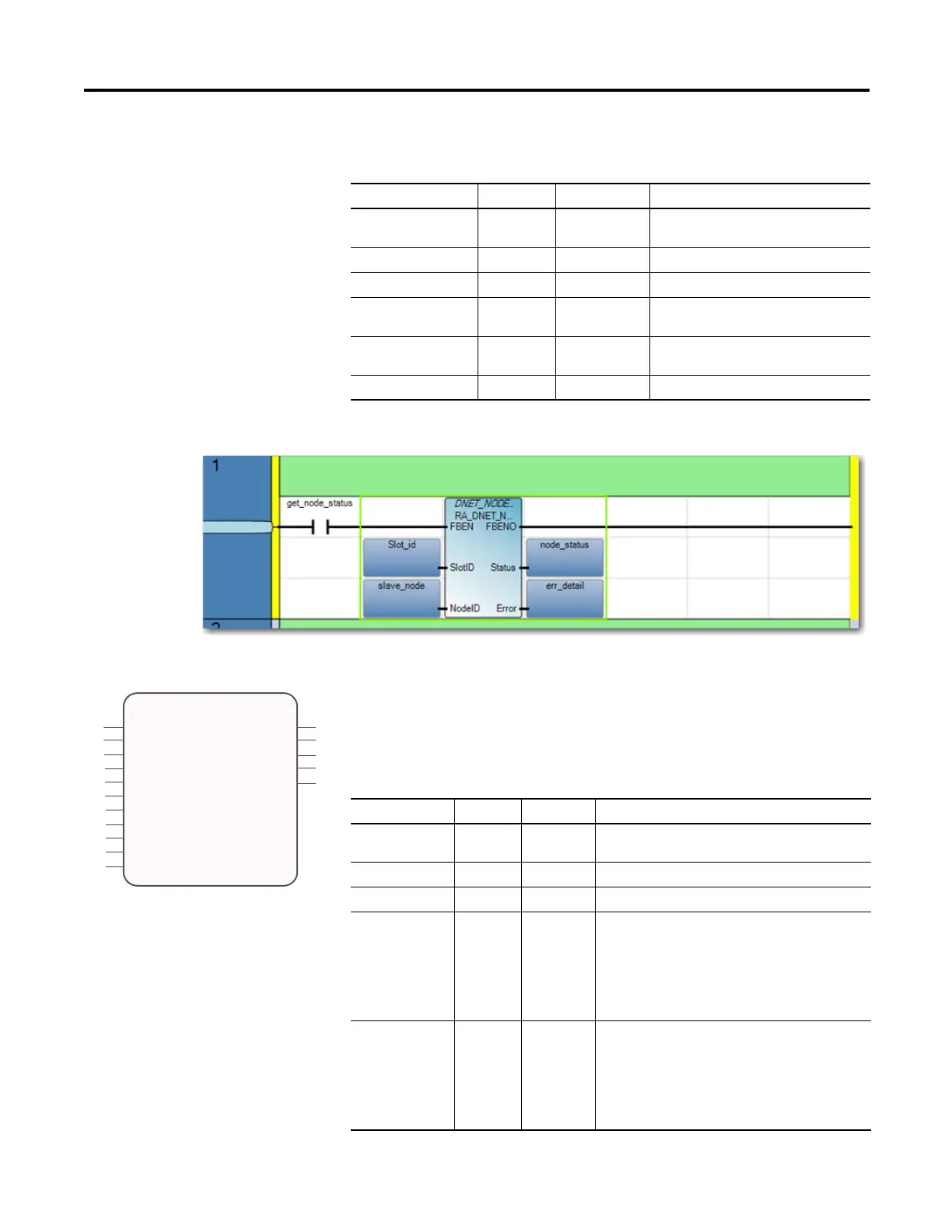

Sample Code: RA_DNET_NODE_STATUS
RA_DNET_LDX_DISCRETE
This UDFB is used for I/O data exchange with discrete CompactBlock I/O.
RA_DNET_NODE_STATUS: Input and Output Parameters
Variable Name Type Data Type Description
FBEN INPUT BOOL Function block enable input.
TRUE to enable the function.
SlotID INPUT UINT Plug-in slot number (1…5)
NodeID INPUT USINT Slave node address.
FBENO OUTPUT BOOL Function block enable output.
TRUE upon exit.
Status OUTPUT USINT Scanner fault status.
0: No errors.
Error OUTPUT STRING Description of the node status error.
RA_DNET_LDX_DISCRETE: Input and Output Parameters
Variable Name Type Data Type Description
FBEN INPUT BOOL Function block enable input.
TRUE to enable the function block.
SlotID INPUT UINT Plug-in slot number (1…5)
NodeID INPUT USINT Node address of the digital Compact I/O slave node.
Module1 INPUT STRING Base module I/O configuration.
INPUT X OUTPUT Channels
For example: 16X0 (16 input / 0 output is physically
present as base module)
Valid String: 32X0, 0X32, 16X0, 0X16, 16X16, 8X8,
8X0, 0X8, 0X6
NOTE: X should always be upper case.
Module2 INPUT STRING Expansion module 1 I/O configuration.
INPUT X OUTPUT channels
For example: 16X0 (16 input / 0 output is physically
present as base module)
Valid String: 32X0, 0X32, 16X0, 0X16, 16X16, 8X8,
8X0, 0X8, 0X6
NOTE: X should always be upper case.
FBEN
SlotID
NodeID
FBENO
RA_DNET_LDX_DISCRETE
DI_Module1
DI_Module2
Module1
Module2
Module3
DO_Module2
DO_Module3
Module4
DO_Module4
DO_Module1
DI_Module3
DI_Module4

Allen-Bradley 2080-IF4 Specifications

General

Type	Analog Input Module
Analog Inputs	4
Resolution	16-bit
Input Type	Voltage/Current
Input Impedance Current	250 Ω
Power Supply Voltage	24 VDC
Current Input Range	4 to 20 mA
Accuracy	±0.1% of full scale
Operating Temperature	-20 to 60 °C
Storage Temperature	-40 to 85 °C
Relative Humidity	5% to 95% (non-condensing)
Power Consumption	1.5W
Voltage Input Range	-10 to 10 V
Input Impedance Voltage	1 MΩ

Summary

Important User Information

Safety Warnings and Symbols

Defines WARNING, ATTENTION, SHOCK HAZARD, BURN HAZARD, and IMPORTANT messages.

Chapter 1 Micro800 Plug-in Modules

Types of Micro800 Plug-in Modules

Categorizes plug-ins into Digital, Analog, Specialty, and Communication types.

Chapter 2 Install and Wire Your Module

Wiring Diagrams and Pin Designations

Provides pinout details for 12-pin and 8-pin terminal blocks and wiring considerations.

Chapter 4 High Speed Counter – 2080-MOT-HSC

Overview and Specifications

User Defined Function Blocks (UDFBs)

Explains the purpose and parameters of UDFBs like RA_HSCPlugIn for HSC configuration.

Chapter 5 DeviceNet Plug-in – 2080-DNET20

Overview and Status Indicators

Network Configuration and Wiring

Covers network setup, wiring requirements, and specifications for DeviceNet.

DeviceNet Address and Baud Rate Settings

DeviceNet Function Blocks (UDFBs)

Introduces UDFBs for controlling DeviceNet scanners and nodes.

Appendix B Quickstart

Add and Configure Plug-ins in CCW

Guides users on configuring plug-ins using Connected Components Workbench.

Browse Plug-ins Using RSLinx

Flash Upgrade Plug-in Firmware

Provides steps for updating the firmware of the 2080-DNET20 plug-in.

Appendix C Error Codes

Micro800 Plug-in Module Error Codes

Lists specific error codes for plug-in modules and recommended recovery actions.
