58 Rockwell Automation Publication 520-UM001G-EN-E - September 2014
Chapter 2 Start Up

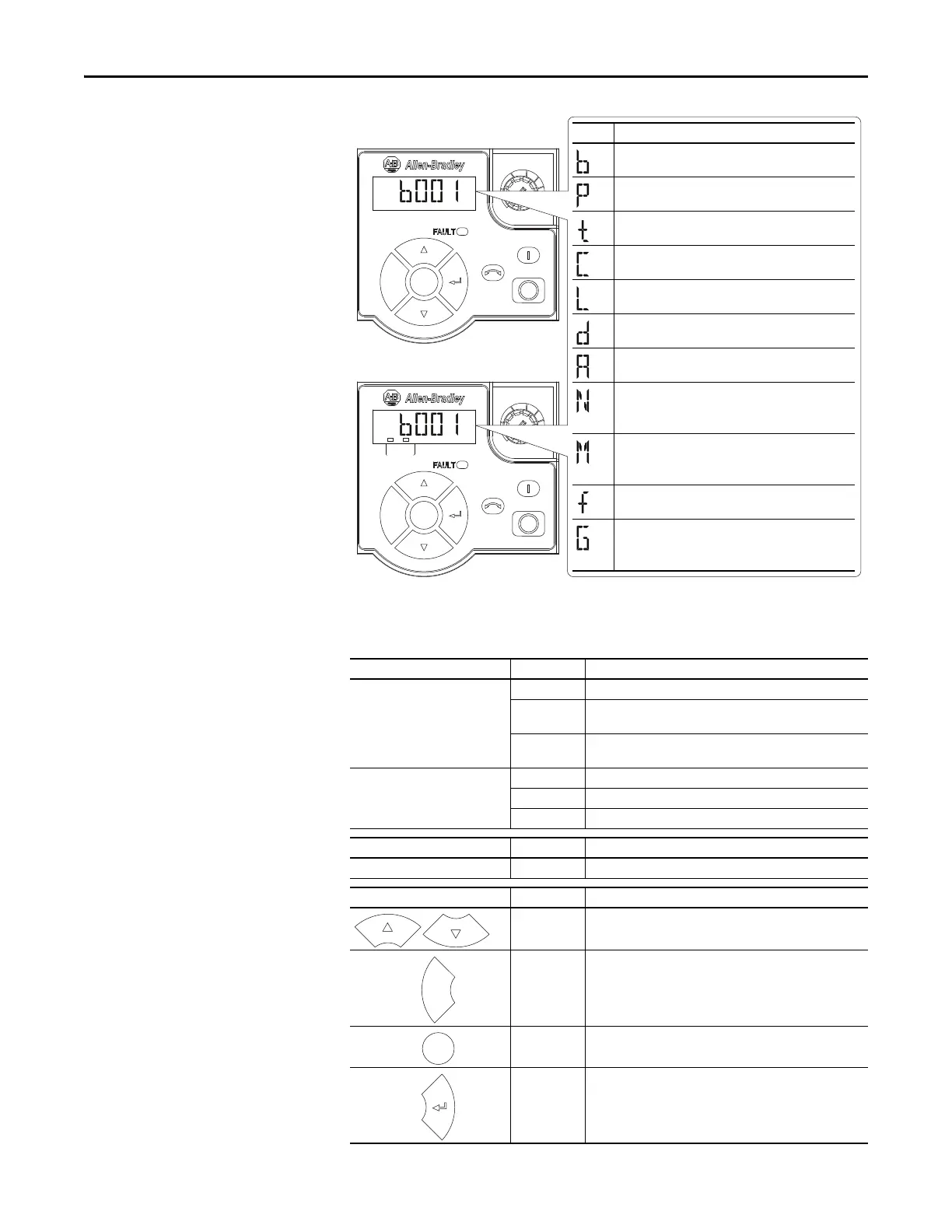

Display and Control Keys
Control and Navigation Keys
Display Display State Description
ENET (PowerFlex 525 only) Off Adapter is not connected to the network.
Steady Adapter is connected to the network and drive is controlled
through Ethernet.
Flashing Adapter is connected to the network but drive is not controlled
through Ethernet.
LINK (PowerFlex 525 only) Off Adapter is not connected to the network.
Steady Adapter is connected to the network but not transmitting data.
Flashing Adapter is connected to the network and transmitting data.
LED LED State Description
FAULT Flashing Red Indicates drive is faulted.
Key Name Description
Up Arrow
Down Arrow
Scroll through user-selectable display parameters or groups.
Increment values.
Escape Back one step in programming menu.
Cancel a change to a parameter value and exit Program Mode.
Select Advance one step in programming menu.
Select a digit when viewing parameter value.
Enter Advance one step in programming menu.
Save a change to a parameter value.
Esc
Sel
F
W
D
Esc
Sel
F
W
D
ENET LINK
EtherNet/IP
Menu Parameter Group and Description
Basic Display
Commonly viewed drive operating conditions.
Basic Program
Commonly used programmable functions.
Terminal Blocks
Programmable terminal functions.
Communications
Programmable communication functions.
Logic (PowerFlex 525 only)
Programmable logic functions.
Advanced Display
Advanced drive operating conditions.
Advanced Program
Remaining programmable functions.
Network
Network functions that are shown only when a comm
card is used.
Modified
Functions from the other groups with values changed
from default.
Fault and Diagnostic
Consists of list of codes for specific fault conditions.
AppView and CustomView
Functions from the other groups organized for specific
applications.
PowerFlex 523
PowerFlex 525
