42 Rockwell Automation Publication 6000-IN006F-EN-P - March 2018
Chapter 3 Drive Electrical Interconnection
Connect LV Control and Fan
Wiring Bundles
Introduction
There are control wiring bundles that must be reconnected after the drive
cabinets are connected together. These control wiring bundles are connected for
the factory test and then disconnected and bundled at the shipping splits before
shipment.
For exact wire numbers and terminal block designations, refer to the Electrical
Drawings.
Connect Ground Bus
Introduction
A solid ground bus is located at the bottom front of each cabinet. When a
shipping split is required, ground bus connectors are supplied. One is attached
above the solid ground bus and one below (Figure 29
).
Ground bus connection openings are provided in the cabinet sidesheets for this
connection. See Table 1 on page 10
and Tab le 2 on pa g e 11.

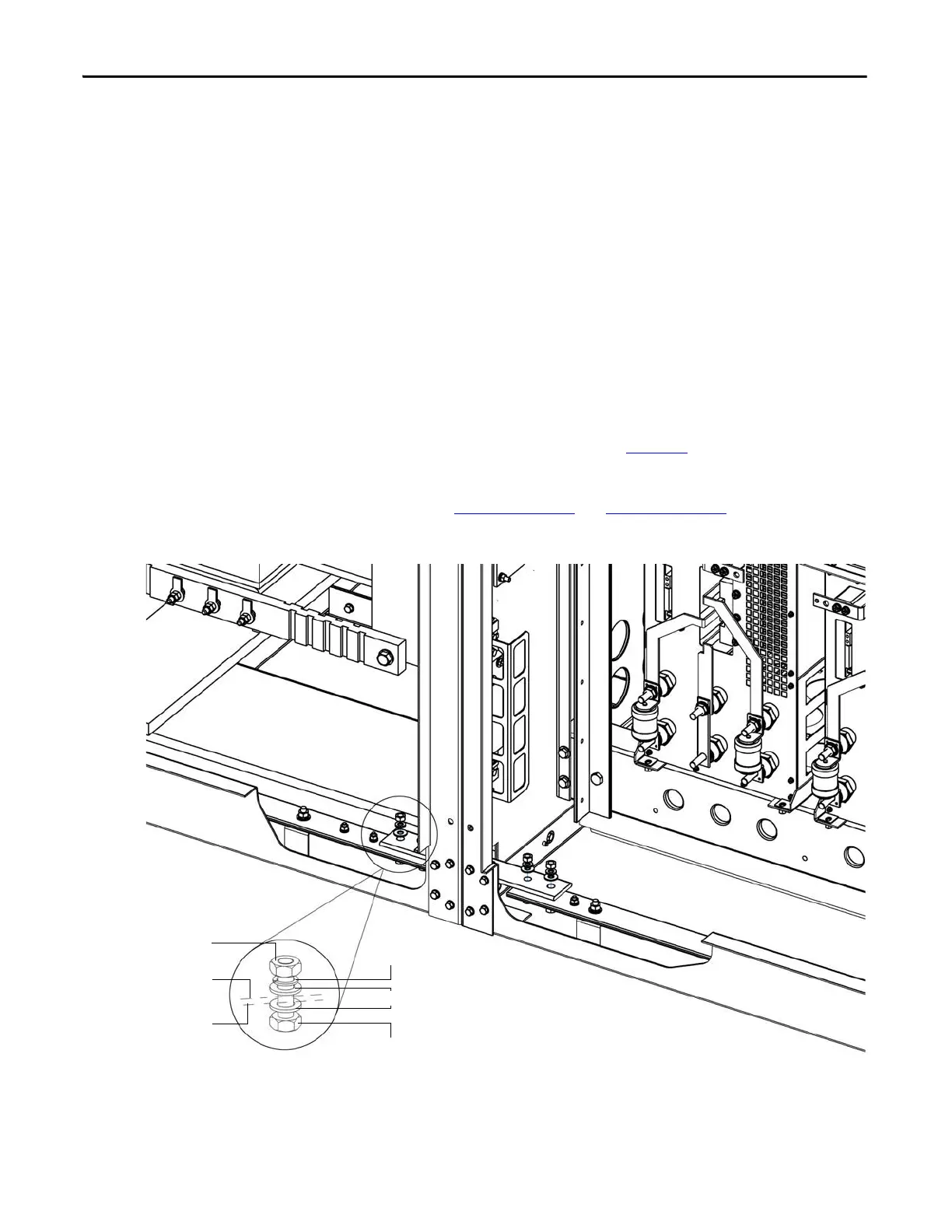

Figure 29 - Interconnection Ground
M8 Hex Nut
Lock Washer
Flat Washer
M8x30 Hex Bolt
Grounding Bus
Connector
Grounding
Bus
