Appendix D
Power Cabling and Control Signal Wiring Details
Schematic Diagrams

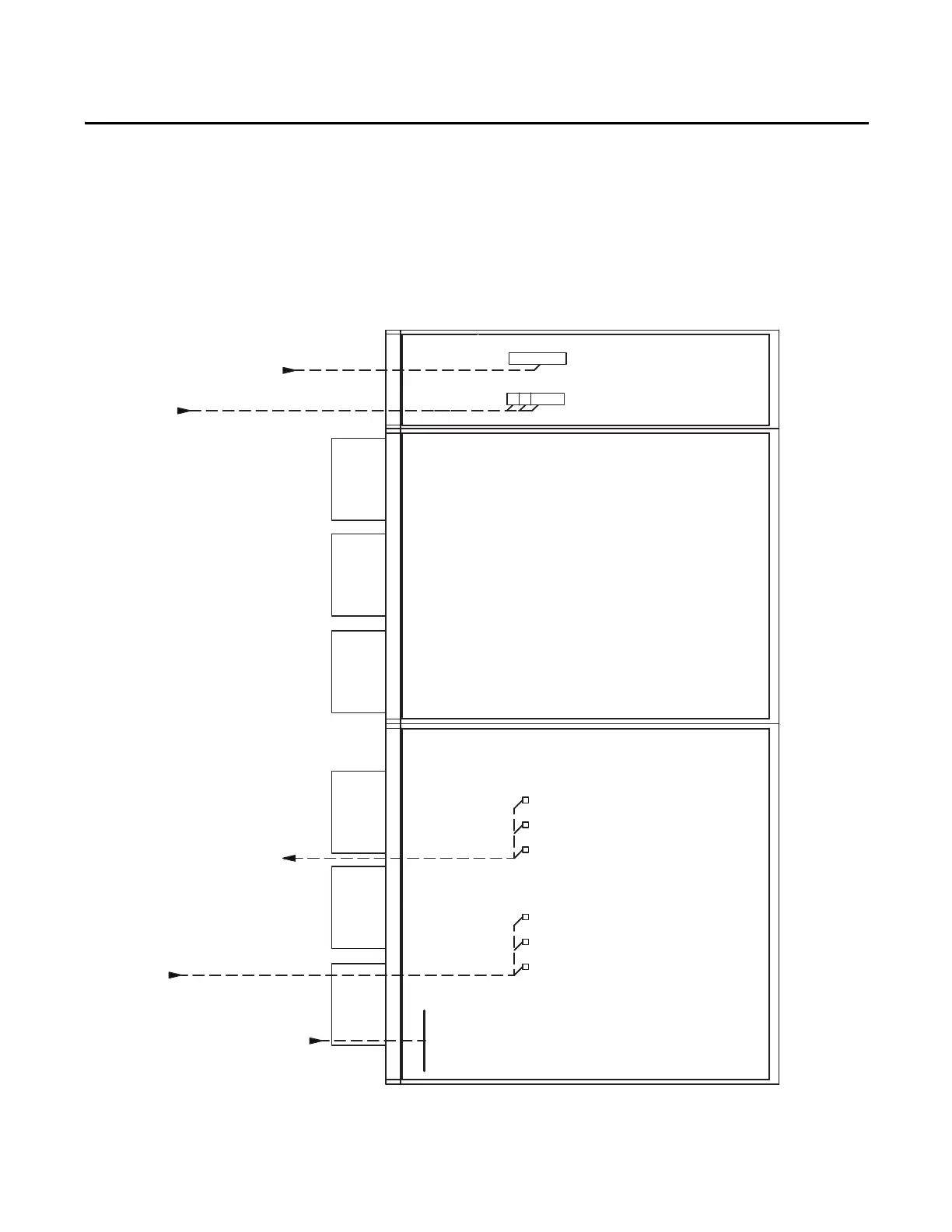

Figure 30 - Schematic Diagram of the Drive System without a Bypass Cabinet
(1)
(1) Wiring locations are for design reference only; actual wiring must comply with the drawings provided with the drive.
/// :98
'7%
'7%
/
1
$$$
3(*5'
MFN1 MFN3 MFN4
Customer Supplied
Ground
13.8 kV, 3 phase, 60 Hz
Upstream Circuit Breaker
(Customer scope of supply)
To Motor
Control Signal
DANGER:
The medium voltage drive is one component in this system which includes an input device supplied by others.
The supplier of the input device is responsible for ensuring that there is safe access to the input/output drive (if used) and safe access to the drive.
110/120/220/230/240V AC, 1 phase, 50/60 Hz.
Control Signal with Branch Circuit Protection
(Minimum 3 kVA Capacity is needed)
MFN2 MFN5 MFN6
To Next Page
