Reference Section

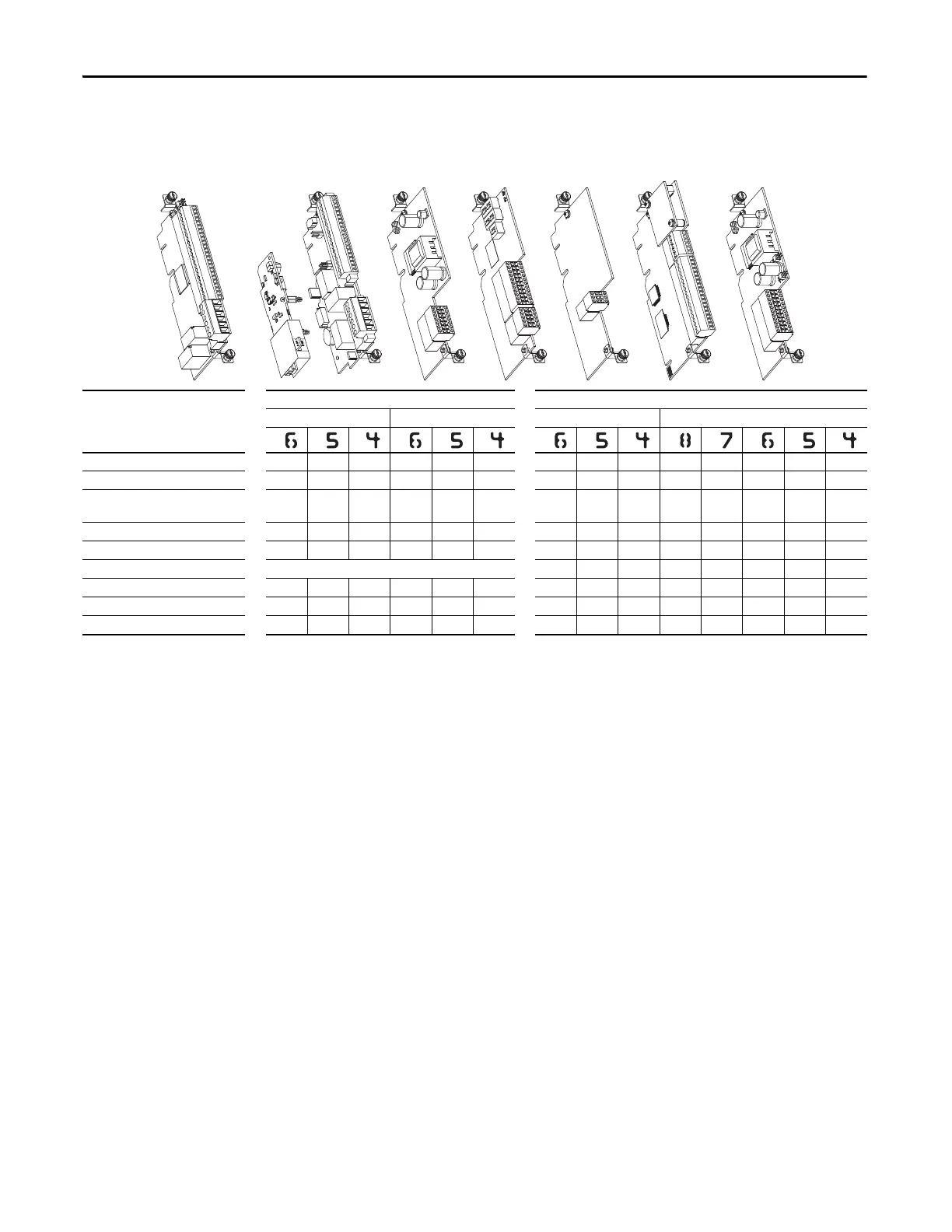

Identify Option Modules and Compatible Ports
20-750-S
20-750-S1
20-750-2262C-2R
20-750-2263C-1R2T
20-750-2262D-2R
20-750-1132C-2R
20-750-1133C-1R2T
20-750-1132D-2R
20-750-ENC-1 20-750-DENC-1
20-750-UFB-1
20-750-ATEX
Option Module
Cat. No. 20-750-
PowerFlex 753 Drives PowerFlex 755 Drives
Frame 1 Ports Frame 2…7 Ports Frame 1 Ports Frame 2…10 Ports
2262C-2R, 2263C-1R2T, 2262D-2R No Yes Ye s Yes Ye s Yes No Yes Ye s Yes Ye s Yes Ye s Yes
1132C-2R, 1133C-1R2T, 1132D-2R No Yes Ye s Yes Ye s Yes No Yes Ye s Yes Ye s Yes Ye s Yes
1132C-2R, 1133C-1R2T, 1132D-2R
with 20-750-ATEX installed
No Yes Ye s No Yes Yes No Yes Ye s No No No Ye s Yes
ENETR Yes Ye s Ye s Yes Ye s Ye s Yes Ye s Ye s No No Ye s Ye s Yes
ENC-1
(1)
No Yes Ye s Yes Ye s Ye s No Ye s Ye s Ye s Ye s Ye s Ye s Ye s
UFB-1
(1)
Not Supported No Ye s Ye s No No Yes Ye s Ye s
S
(1)
Yes Ye s Ye s Yes Ye s Ye s Yes Ye s Ye s Yes Ye s Ye s Ye s Ye s
S1
(1)
Yes Ye s Ye s Yes Ye s Ye s Yes Ye s Ye s No No Ye s Ye s Yes
DENC-1
(1)
No Yes Ye s Yes Ye s Ye s No Ye s Ye s Ye s Ye s Ye s Ye s Ye s
(1) This publication does not cover the use of this option. Refer to the appropriate publication for more information.
