Ambu aView 2 Advance User Manual

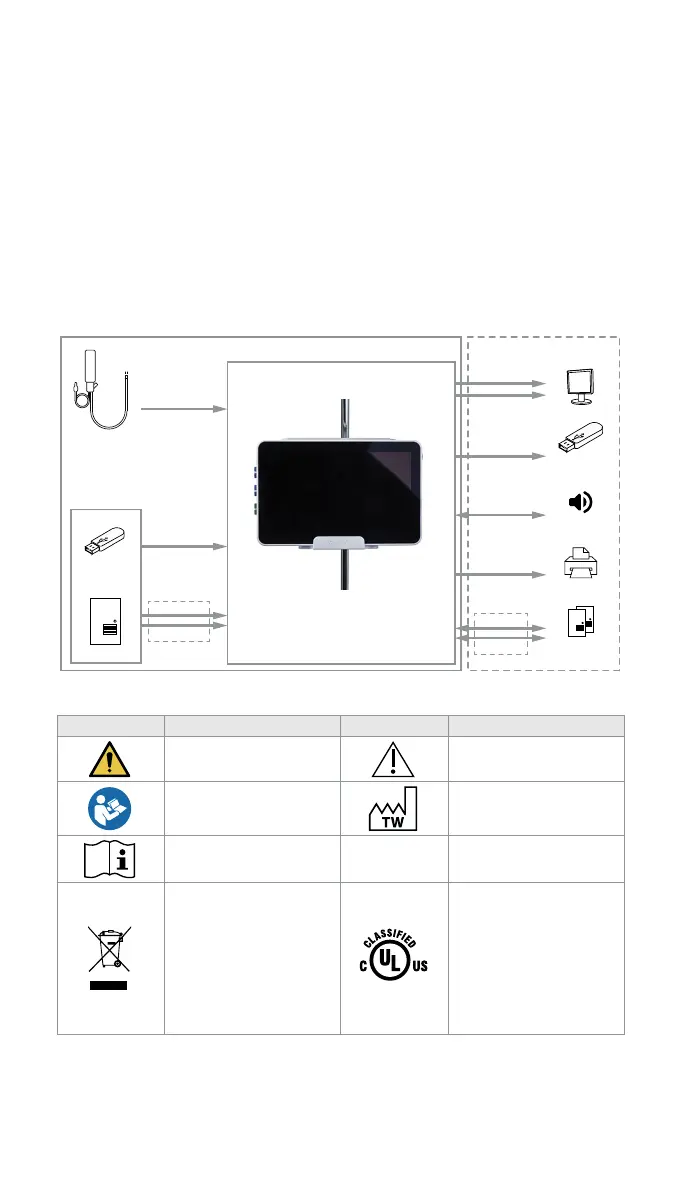

2.5. System overview
A complete Ambu Imaging System is configured as illustrated below. The various connection
options are described in chapter 5.
Please note that your organization is responsible for the following areas, which should be
implemented according to your local policy:
• Network setup
• Ensuring availability and confidentiality of the network
• Ensuring confidentiality and integrity of physical devices
• Management of the displaying unit user profiles
• Maintenance of user passwords
• Monitoring and audit of the Ambu imaging system
• Complete data erasure before disposal of the displaying unit
USB Flash Drive
Server
DICOM
LAN
Wi-
PACS Server/
Worklist Server
HDMI
3G-SDI
Extermal Monitor
Visualization
Device
Image and Video
Streams
USB 3.0 Type A
Ambu Displaying Unit
External Connection OptionAmbu Imaging System
Software
Update/Upgrade
LAN
Wi-
USB 3.0 Type A
Recording/
Log File
Medical Printer
USB 3.0 Type A
USB 3.0 Type A
Audio Device
3. Explanation of symbols used
Symbol Description Symbol Description
Warning Caution
Follow the
Instructions for Use
Country of Manufacturer
Consult Instructions for Use
IP30
Protection against
solid objects
Waste Bin symbol,
indicating that waste must
be collected according to
local regulation and
collection schemes for
disposal of electronic and
electrical waste (WEEE)
E354633
Medical – general medical
equipment as to electric
shock, fire and mechanical
hazards only in accordance
with ANSI/AAMI ES60601-
1:2005+ AMD 2012, CAN/
CSA-C22.2 No. 60601-
1:14+IEC 60601-2-18:2009
10
