Ambu aView 2 Advance User Manual

en

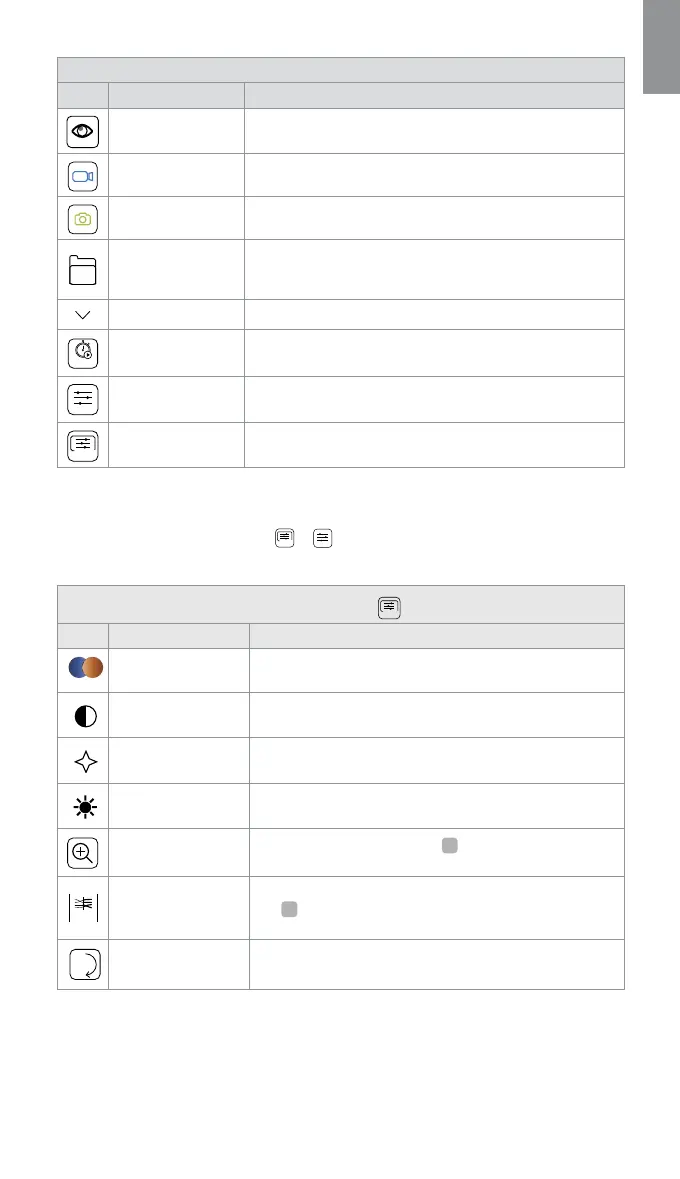

Overview of Live View functions
Icon Name Function
Live View tab
Showing the live image when an Ambu visualization device
is connected.
Video
recording icon
Starting and stopping video recording during a procedure
(see section 6.3.).
Photo icon
Taking photos during a procedure, also during video
recording (see section 6.3.).
Current procedure
folder icon
Saving photos and videos recorded during the current
procedure (see section 6.10.).
Worklist menu Selecting a patient for the current procedure (see section 6.4.).
00:00
Stopwatch
Recording the time and making time stamps during a
procedure (see section 6.7.).
Image adjustment
Adjusting colour, contrast, sharpness, brightness, zoom, and
rotation (see section 6.6.).
+ARC
Image adjustment*
Adjusting colour, contrast, sharpness, brightness, zoom,
rotation, and ARC (Advanced Red Contrast) (see section 6.6.).
* This icon is shown only when ARC is enabled and the connected endoscope supports the function.
6.6. Using image adjustments
• Press the image adjustment icon
+ARC
or to open the menu.
• After adjusting the image settings, press X to save the settings.
Explanations of functions in Image adjustments
+ARC
Icon Name Function
Colour Adjusts the image colour temperature from cold to warm.
Contrast
Adjusts the image contrast. A higher value equals a larger
difference between dark and bright areas.
Sharpness
Enhances the image details. A higher value equals
a more detailed image.
Brightness
Adjusts the overall screen brightness. A higher value
equals more brightness.
ZOOM
Zooms in on the live image. A
Z
icon in the top right
corner of the live image indicates that Zoom is active.
ARC
ARC tab
Open the ARC tab to adjust advanced red colour contrast.
An
A
icon in the top right corner of the live image
indicates that ARC is active.
R
Image rotation 180° Rotate the live image in 180 degrees.
Note: Some image adjustments can be disabled by the Administrator.
Note: The changes made will be saved and apply for all visualization devices of the same type.
23

Ambu aView 2 Advance Specifications

General

Brand	Ambu
Model	aView 2 Advance
Category	Monitor
Language	English
