Overview
11
Hardware Reference Guide - NX-Series NetLinx Integrated Controllers
NX-1200
The NX-1200 (FG2106-01) has 512MB of on-board RAM, a 4GB CompactFlash card, and is Device Discovery enabled to simplify
programming by standardizing device and function definitions, default touch panel button assignments, and control and feedback
methods. A complete list of device specifications is listed below.

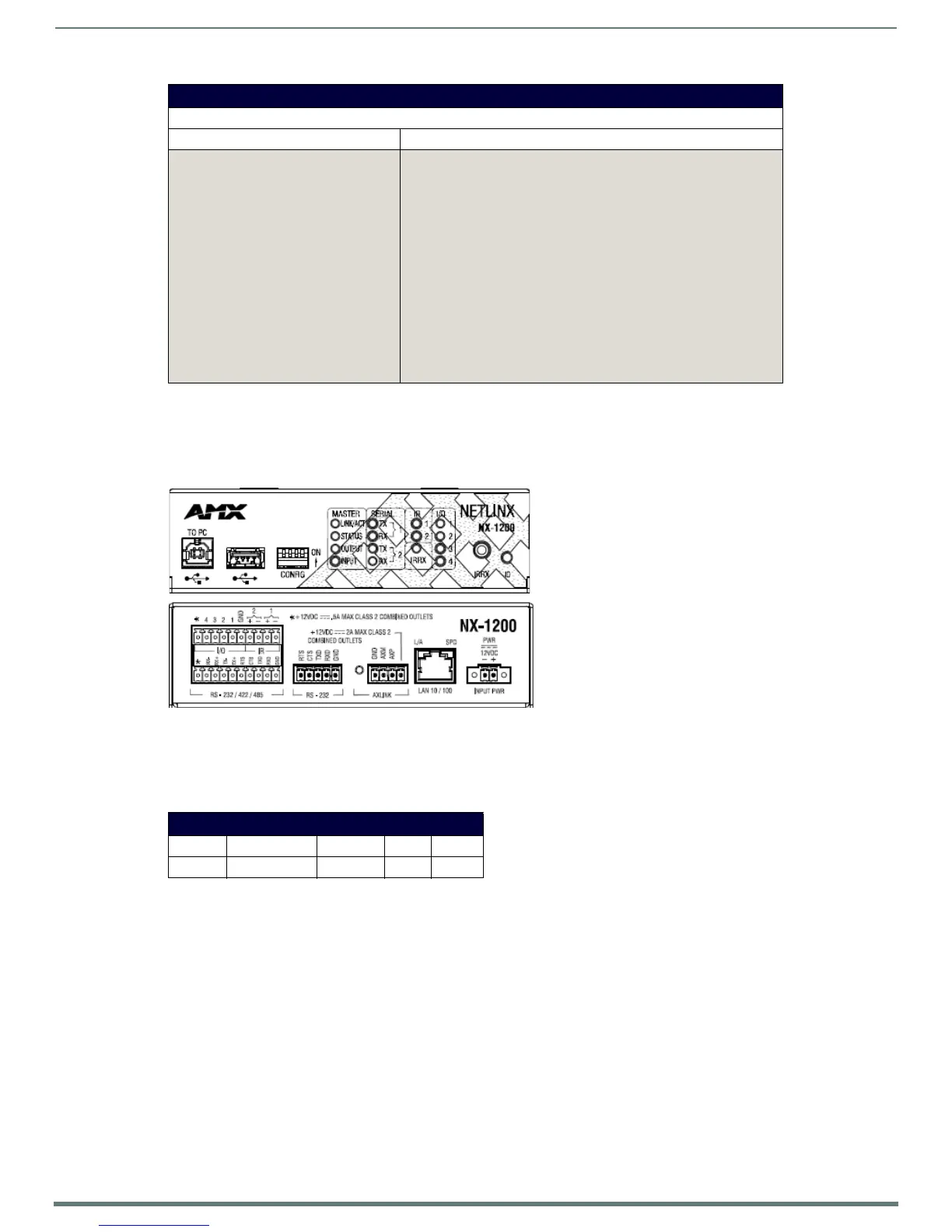

FIG. 2 displays the NX-1200.
FIG. 2
NX-1200 (front and rear panels)
NOTE: Verify you are using the latest NX firmware for the on-board Master. Verify you are using the latest version of NetLinx Studio 4.0
(available for download from www.amx.com).
Port Numbers
The following table lists the port numbers on the NX-1200:
NX-Series Controllers - Features (Cont.)
NX-4200 NetLinx Integrated Controllers
Name / FG# Features
NX-4200 Controller (FG2106-04) 2 RS-232 / RS-422 / RS-485 serial ports
6 RS-232-only serial port
8 Relays
8 IR / Serial ports
8 Digital I/O ports
2 AxLink ports
4 ICSLAN Ethernet ports
1 LAN Ethernet port
2 USB 2.0 host ports
1600 MIPS
1 GB RAM
8 GB Internal MicroSD Memory Card
1 MB Non-Volatile Memory
AMX Device Discovery enabled
NX-1200 Port Numbers
RS-232 RS-422/485 IR/Serial I/O IR/RX
2 1 11-12 22 20
