Hardware Reference Guide - NX-Series NetLinx Integrated Controllers
NX-4200
The NX-4200 (FG2106-04) has 1GB of on-board RAM, a 13GB CompactFlash card, and is Device Discovery enabled to simplify
programming by standardizing device and function definitions, default touch panel button assignments, and control and feedback
methods. A complete list of device specifications is listed below.

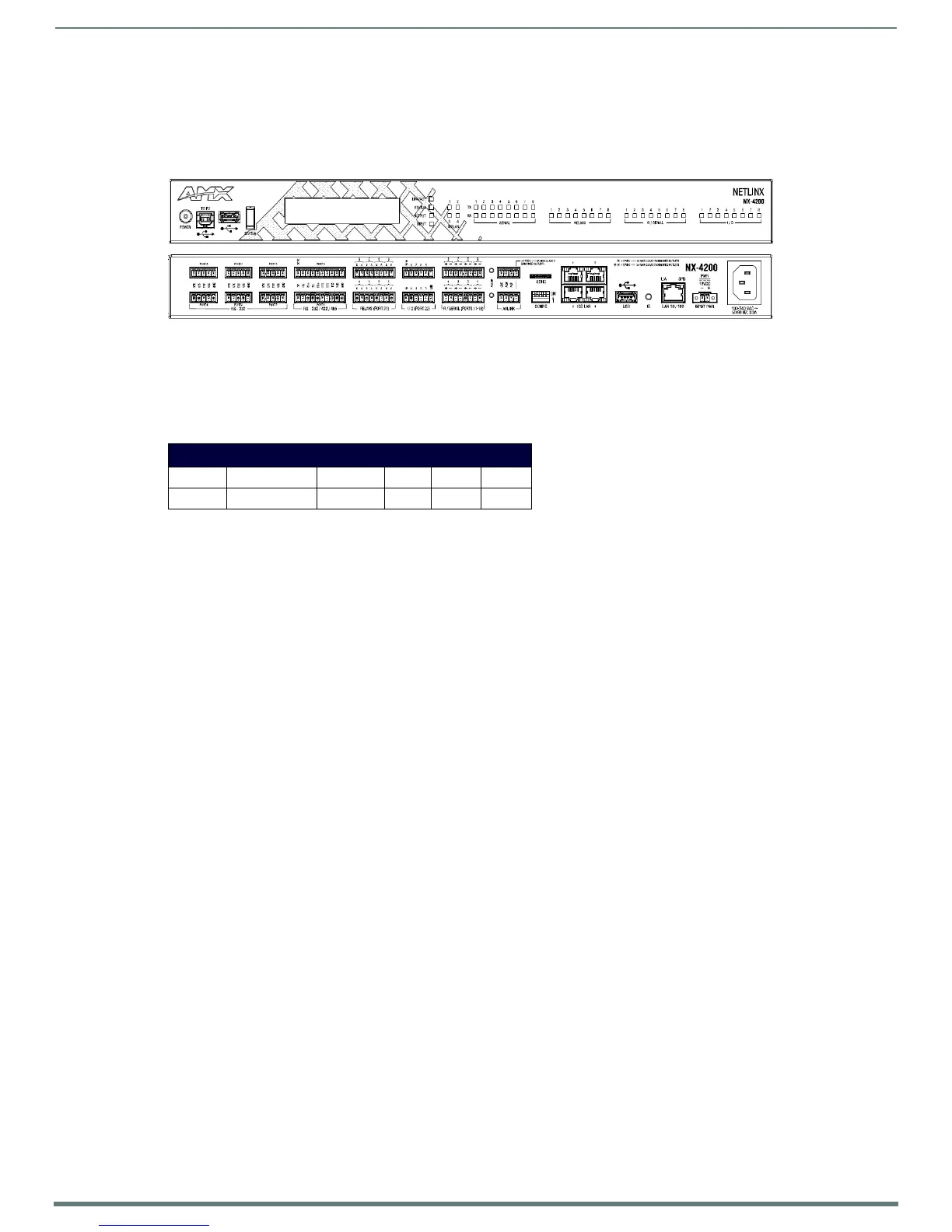

FIG. 5 displays the NX-4200.
FIG. 5
NX-4200 (front and rear panels)
The NX-4200’s on-board Master also provides the ability to update installed control card f irmware.
NOTE: Verify you are using the latest NX firmware for the on-board Master. Verify you are using the latest version of NetLinx Studio 4.0
(available for download from www.amx.com).
Port Numbers
The following table lists the port numbers for the NX-4200:
NX-4200 Port Numbers
RS-232 RS-422/485 IR/Serial I/O Relay PoE
2-4, 6-8 1, 5 11-18 22 21 24-27

AMX NX-1200 Specifications

General

Brand	AMX
Model	NX-1200
Category	Controller
Language	English
