AMX NX-1200 Hardware Reference Manual

Overview
13
Hardware Reference Guide - NX-Series NetLinx Integrated Controllers
NX-2200
The NX-2200 (FG2106-02) has 512MB of on-board RAM, a 4GB CompactFlash card, and is Device Discovery enabled to simplify
programming by standardizing device and function definitions, default touch panel button assignments, and control and feedback
methods. A complete list of device specifications is listed below.

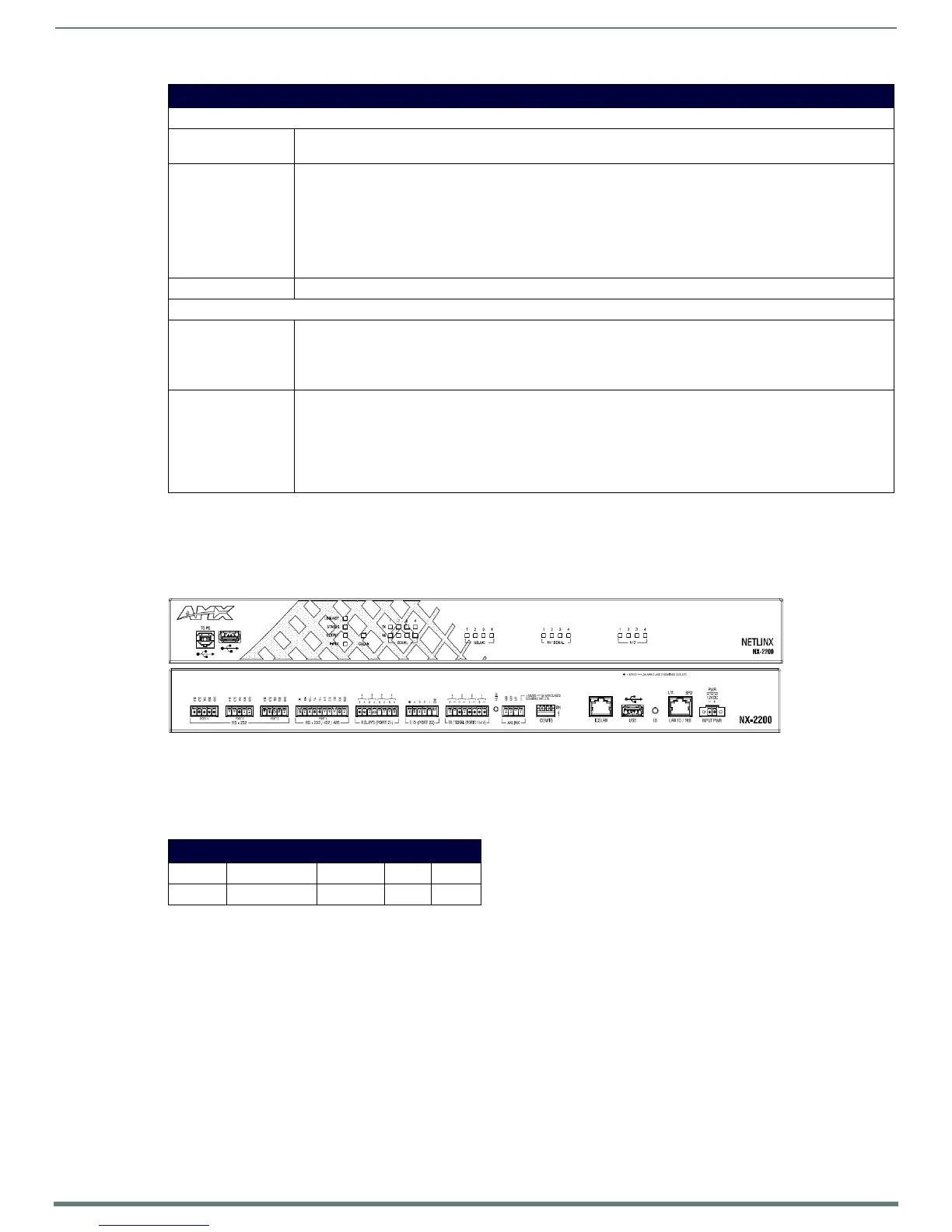

FIG. 3 displays the NX-2200.
FIG. 3
NX-2200 (front and rear panels)
NOTE: Verify you are using the latest NX firmware for the on-board Master. Verify you are using the latest version of NetLinx Studio 4.0
(available for download from www.amx.com).
Port Numbers
The following table lists the port numbers for the NX-2200:
NX-1200 Specifications (Cont.)
Rear Panel Components: (Cont.)
AxLink Port: 1 4-pin 3.5 mm mini-Phoenix (male) connector that provides data and power to external AxLink control devices.
Green AxLink LED indicates the state of the AxLink port.
LAN 10/100 Port: 1 RJ-45 connector provides Ethernet communication. This is an Auto MDI/MDI-X enabled port, which allows you
to use either straight-through or crossover Ethernet cables.
The LAN Port LEDs show communication activity, connection status, speeds, and mode information:
• SPD (speed) - Yellow LED lights On when the connection speed is 100 Mbps and turns Off when the speed is 10
Mbps.
• L/A (link/activity) - Green LED lights On when the Ethernet cables are connected and terminated correctly, and
blinks when receiving Ethernet data packets.
Power Connection: 2-pin 3.5 mm mini-Phoenix (male) connector with retention screws provides power to the NX-1200.
General Specif ications:
Operating
Environment:
• Operating Temperature: 32° F (0° C) to 122° F (50° C)
• Storage Temperature: 14° F (-10° C) to 140° F (60° C)
• Operating Humidity: 5% to 85% RH
• Heat Dissipation (On): 10.2 BTU/hr
Included Accessories: • 1 2-pin 3.5 mm mini-Phoenix (female) PWR connector
• 1 4-pin 3.5 mm mini-Phoenix (female) AxLink connector
• 1 6-pin 3.5 mm mini-Phoenix (female) I/O connector
• 1 10-pin 3.5mm mini-Phoenix (female) RS232/422/485 connector
• 1 5-pin 3.5mm mini-Phoenix (female) RS232 connector
• 1 CC-NIRC, IR Emitters (FG10-000-11)
NX-2200 Port Numbers
RS-232 RS-422/485 IR/Serial I/O Relay
2-4 1 11-14 22 21

AMX NX-1200 Specifications

General

Brand	AMX
Model	NX-1200
Category	Controller
Language	English
