04_18
Headlight adjustment (04_18, 04_19, 04_20)
NOTE
IN COMPLIANCE WITH LOCAL LEGISLATION, SPECIFIC PROCEDURES MUST
BE FOLLOWED WHEN ALIGNING THE LIGHTS.
04_19

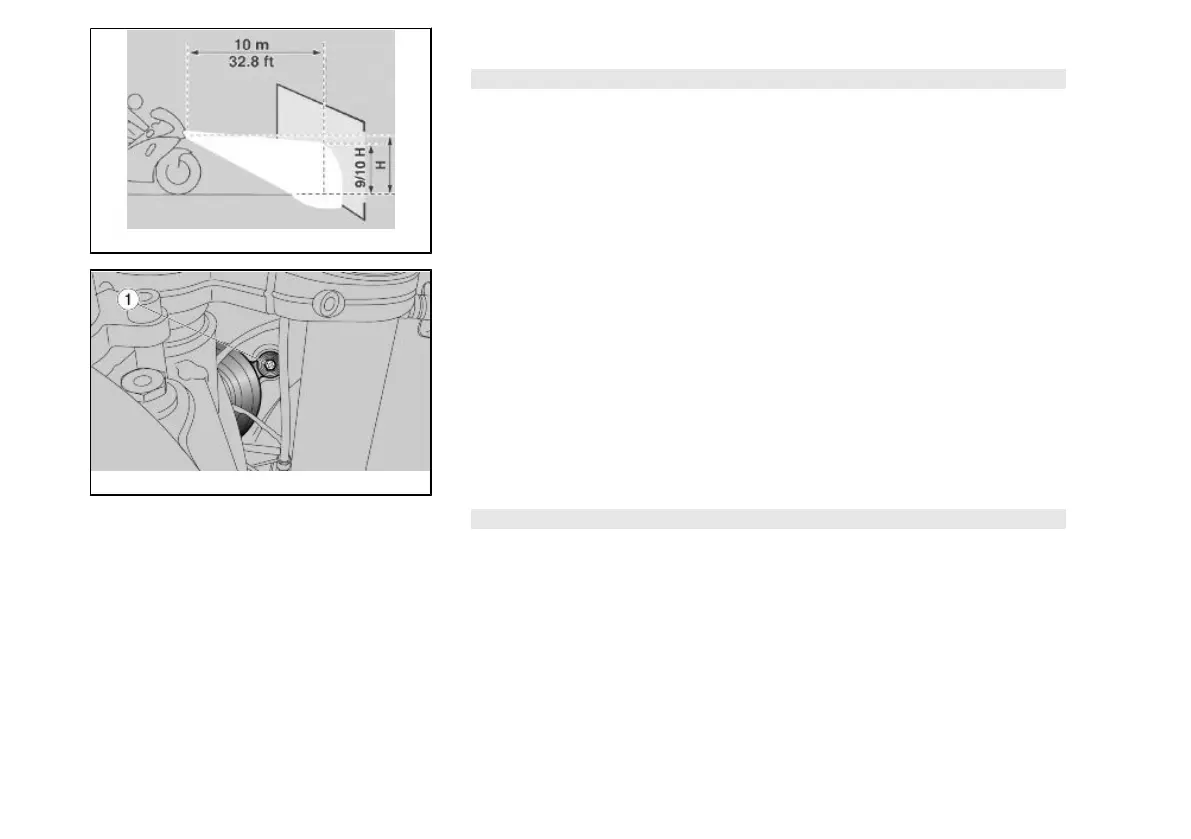

EU: To quickly and easily check the alignment of the front light, place the vehicle on
a level surface 10 m (32.8 ft) away from a vertical wall. Turn on the dipped beam light,
sit on the vehicle and check that the light beam projected onto the wall is a little below
the level of the headlight (about 9/10 of the total height).
To carry out vertical adjustment of the light beam:
•
Rest the vehicle on its stand.
•
Working from the front rear side of the windshield, use a short crosshead
screwdriver to operate on the specific screw (1). SCREW it (clockwise) to
raise the light beams; UNDO the screw (anticlockwise) to lower the light
beam.
NOTE
CHECK THAT THE LIGHT BEAM VERTICAL DIRECTION IS CORRECT.
104
