Rear optical unit
CAUTION
TO REMOVE, CHECK AND REPLACE THE BULB, PLEASE CONTACT AN Official
Aprilia Dealer. IF YOU ARE ADEQUATELY TRAINED AND EXPERIENCED, RE-
FER TO THE INSTRUCTIONS IN THIS WORKSHOP BOOKLET AVAILABLE ALSO
AT ANY DEALER.
04_22

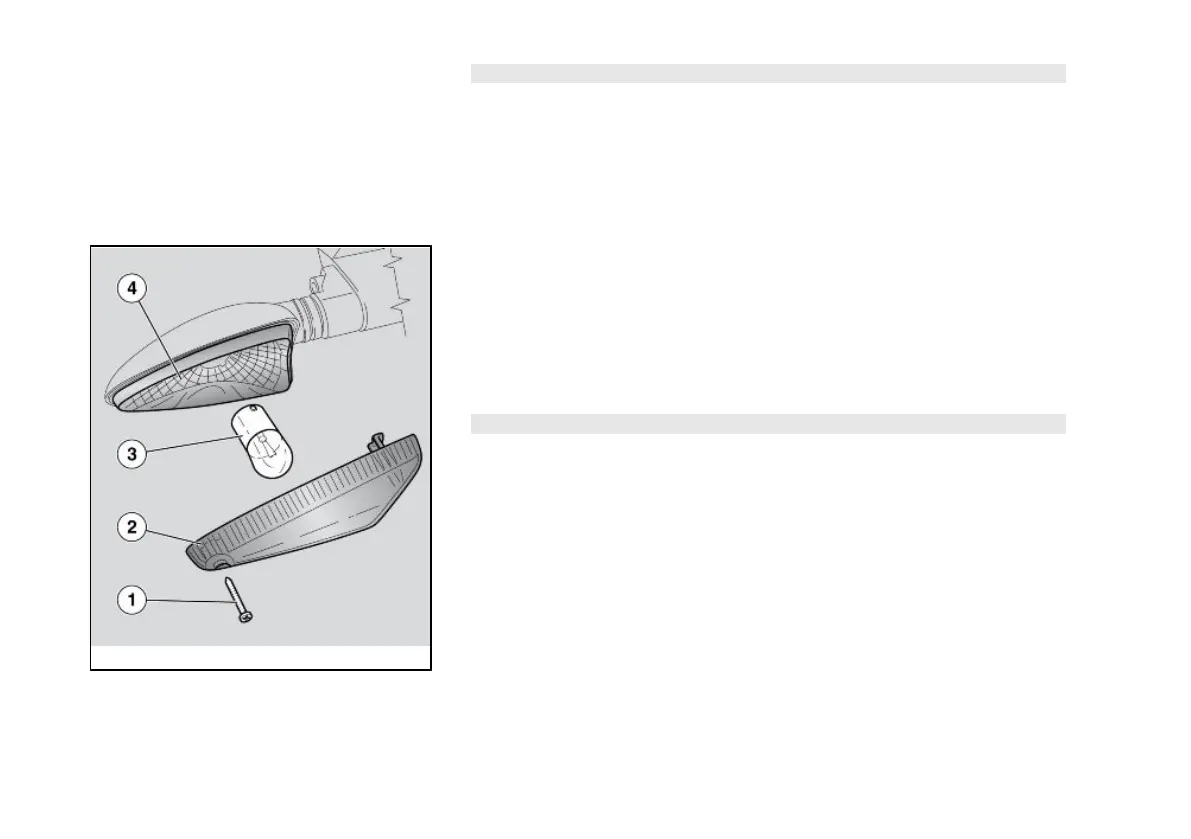

Rear turn indicators (04_22)
•
Rest the vehicle on its stand.
•
Loosen and remove screw (1).
•
Remove glass (2).
•
Press bulb (3) slightly and turn it anticlockwise.
•
Pull the bulb (3) out of its fitting.
•
Insert a bulb of the same type adequately.
WARNING
IF PARABOLE (4) STICKS OUT OF ITS FITTING, INSERT IT AGAIN PROPERLY.
106
