use and maintenance MX 125
32
MAIN INDEPENDENT CONTROLS

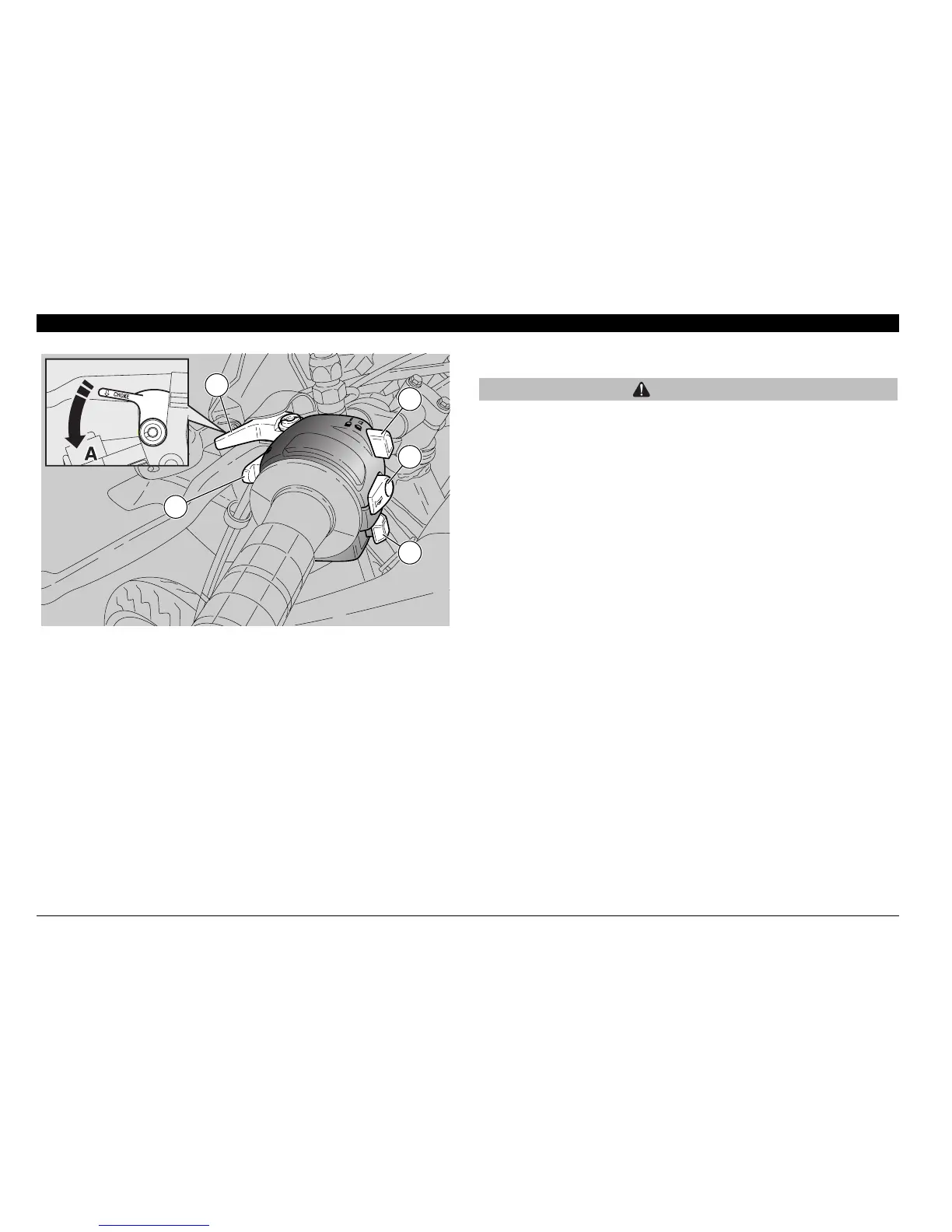

CONTROLS ON THE LEFT SIDE OF THE HANDLEBAR
CAUTION
The electrical parts work only when the ignition switch is in
position “
”.
1) HIGH BEAM SIGNALLING PUSH BUTTON (
)
It makes it possible to use the high beam for signalling to
forthcoming vehicles while overtaking and in case of peril
and/or emergency.
2) COLD START LEVER (
)
The starter for the cold start of the engine is operated by
rotating the lever ≈
∆ anticlockwise (Pos. A).
To disconnect the starter, return the lever ≈
∆ to its initial
position.
3) DIRECTION INDICATOR SWITCH (
( )
To indicate the turn to the left, move the switch to the left; to
indicate the turn to the right, move the switch to the right.
To turn off the direction indicator, press the switch.
4) HORN PUSH BUTTON ( )
The horn is activated when the push button is pressed.
5) DIP SWITCH (
- )
When the dip switch is in the ≈
∆, position, the high beams will
come on; while when the dip switch is in the ≈
∆, position, the
low beams will come on.
2
1
4
5
3
