use and maintenance MX 125
76
CHANGING THE FUSES
Carefully read pag. 55 (MAINTENANCE).
WARNING
Do not repair faulty fuses.
Never use fuses different from the
recommended ones.
The use of unsuitable fuses may cause
damages to the electric system or, in
case of short circuit, even a fire.
CAUTION
If a fuse blows frequently, there
probably is a short circuit or an
overload in the electric system. In this
case it is advisable to consult an
aprilia Official Dealer.
If an electric component does not work or
works irregularly, or if the vehicle fails to
start, it is necessary to check the fuses.
For the checking, proceed as follows:
◆
Turn the ignition switch to position "",
to avoid any accidental short circuit.
◆
Remove the left side cover, see pag. 58
(REMOVING THE SIDE COVERS).
◆
Extract the fuses one by one and check if
the filament (7) is broken.
◆
Before replacing a fuse, try to find out the
cause of the trouble, if possible.
◆
Replace the damaged fuse with a new
one having the same amperage.
CAUTION
If you use one of the spare fuses (4) (5)
(6), put a new fuse in the proper seat.

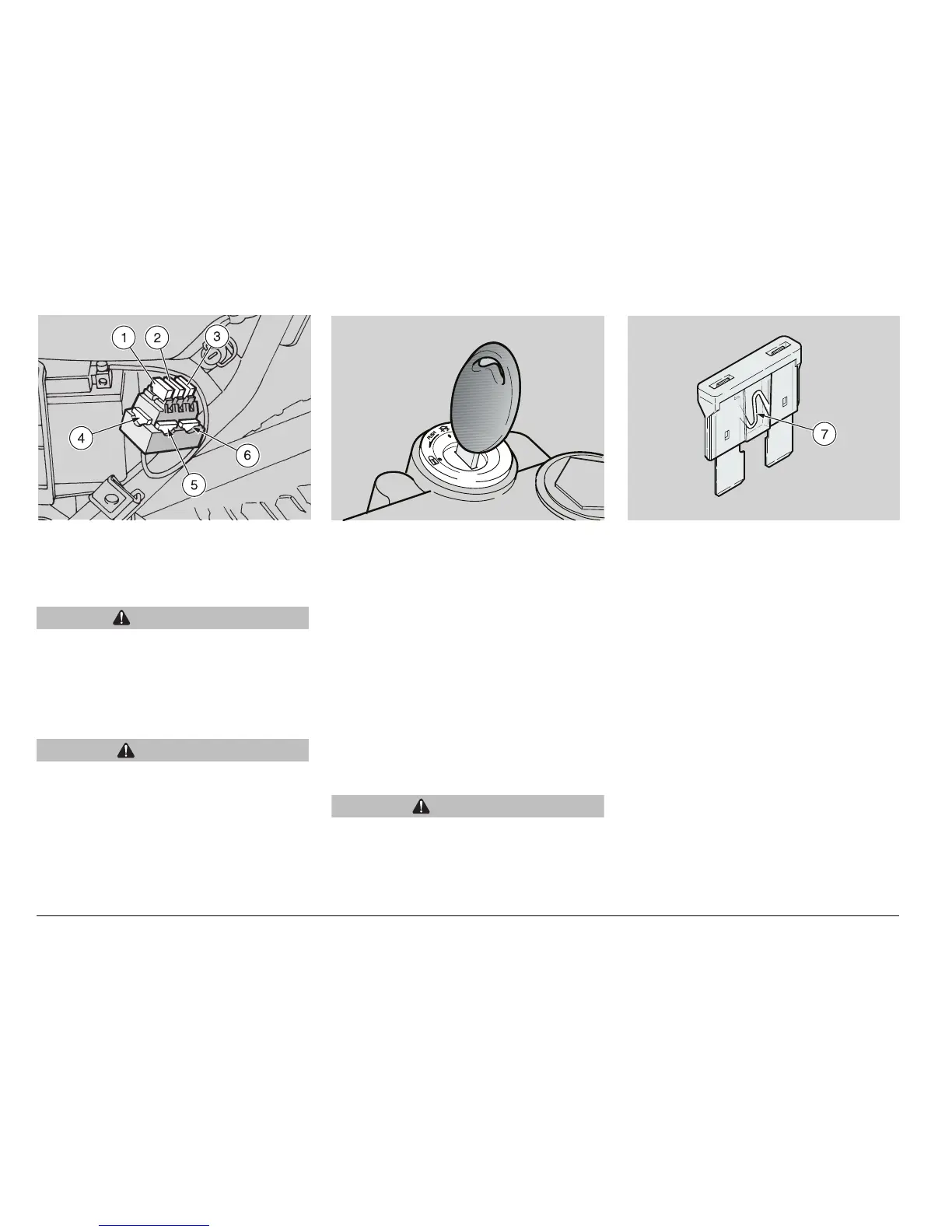

ARRANGEMENT OF THE FUSES
20A fuse (1)
From the battery to: ignition switch, voltage
regulator.
15A fuse (2)
From the ignition switch to: all light loads
and horn.
7,5A fuse (3)
From ignition switch to: ignition.
