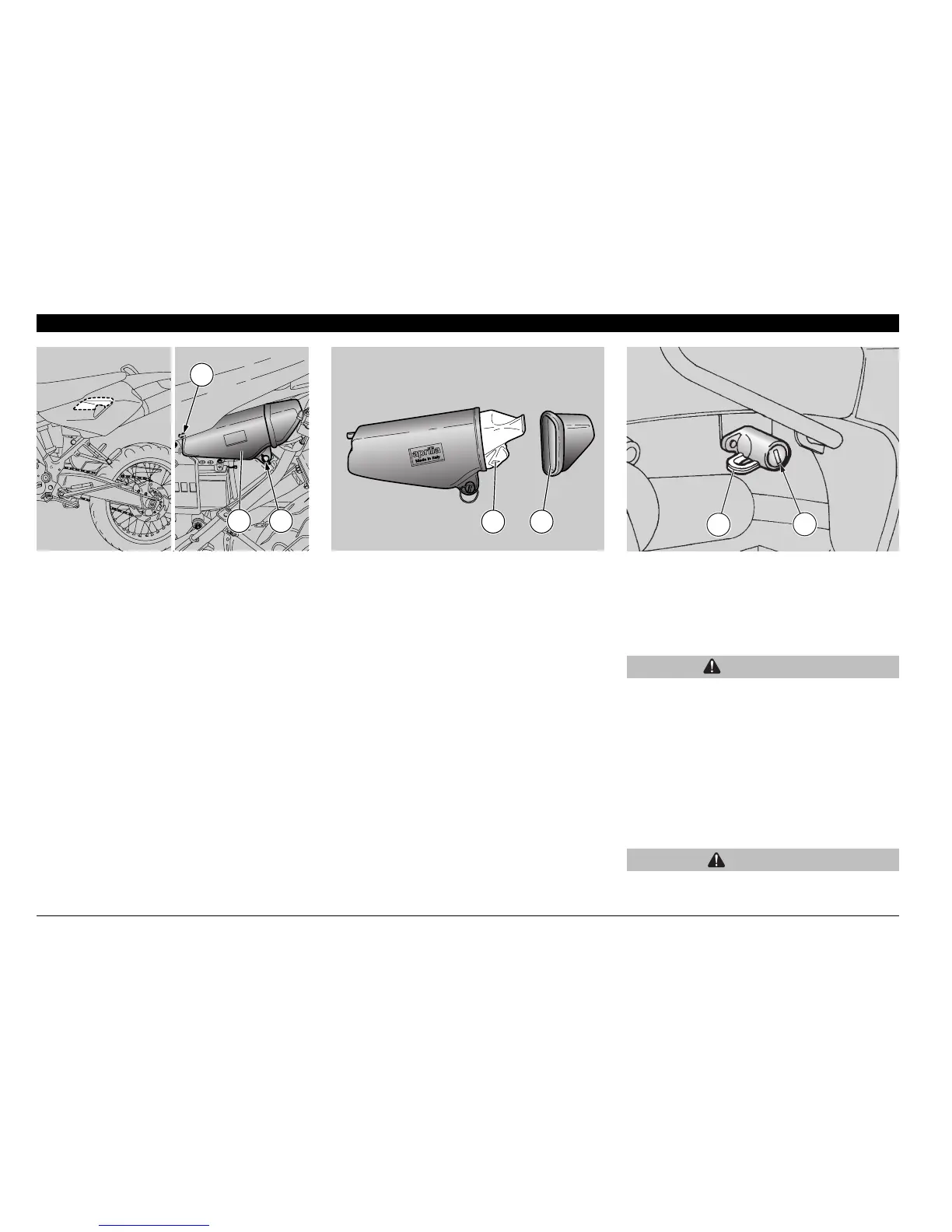

AUXILIARY EQUIPMENT
GLOVE/TOOL KIT COMPARTMENT
The glove/tool kit compartment is
positioned under the left side cover; to
reach it:
◆
Remove the left side cover, see pag. 58
(REMOVING THE SIDE COVERS)
◆
Turn the quick fastening screw (1) by 1/4
of a turn.
◆
Take compartment (2) out of its location.
◆
Remove the compartment lock (3) from
behind.
NOTE At reassembly, be careful to
properly fit centering pin (4).
The tool kit (2) includes:
√ n° 1 tool case
√ n° 1 4 mm bent Allen spanner
√ n° 1 5 mm bent Allen spanner
√ n° 1 6 mm bent Allen spanner
√ n° 1 7x5.5 mm double fork spanner
√ n° 1 10x11 mm double fork spanner
√ n° 1 10x13 mm double fork spanner
√ n° 1 24 mm fork spanner
√ n° 1 21x24 mm double socket spanner
√ n° 1 cross-/cut-headed screwdriver
√ n° 1 screwdriver handle
Max. allowed weight: 1.5 kg
CRASH HELMET HOOK
Thanks to the crash helmet hook, you no
longer have to carry the crash helmet with you
every time you park the vehicle.
WARNING
Do not ride with the crash helmet
hanging from the hook, as this may
seriously compromise your safety.
To hang the crash helmet, proceed as follows:
◆
Insert the key in the lock (5).
◆
Rotate the key clockwise.
◆
Pass the crash helmet cable through the
hook (6).
◆
Rotate the key anticlockwise.
CAUTION
Make sure that you have correctly closed
the hook (6).
6
5
