03_06
Rear shock absorbers setting (03_06, 03_07)
RSV4 1100 Factory (Ohlins shock absorber - ASC)
SPORT SETTINGS MAY BE USED ONLY FOR OFFICIAL COMPETITIONS TO BE
CARRIED OUT ON TRACKS, AWAY FROM NORMAL ROAD TRAFFIC AND WITH
THE AUTHORISATION OF THE RELEVANT AUTHORITIES.

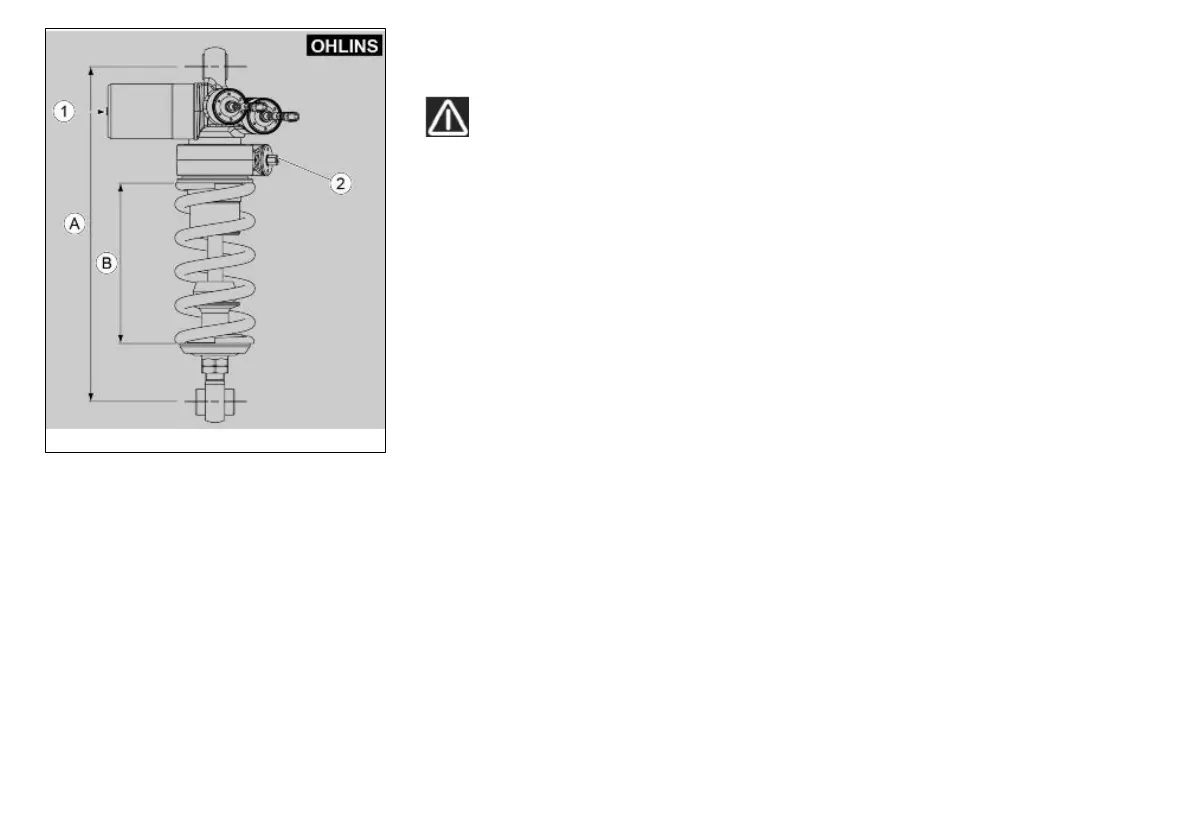

Operate on the adjusting ring nut (2) as follows, to adjust the spring pre-loading (B):
Standard adjustment:
•
Spring pre-load: 4 turns from the adjustment ring nut completely unscrewed
•
ASC mode: A3-M3
Racing adjustment:
•
Spring pre-load: 14 turns from the adjustment ring nut completely unscrewed
•
ASC mode: A1-M1 / A2-M2
125
