04_20

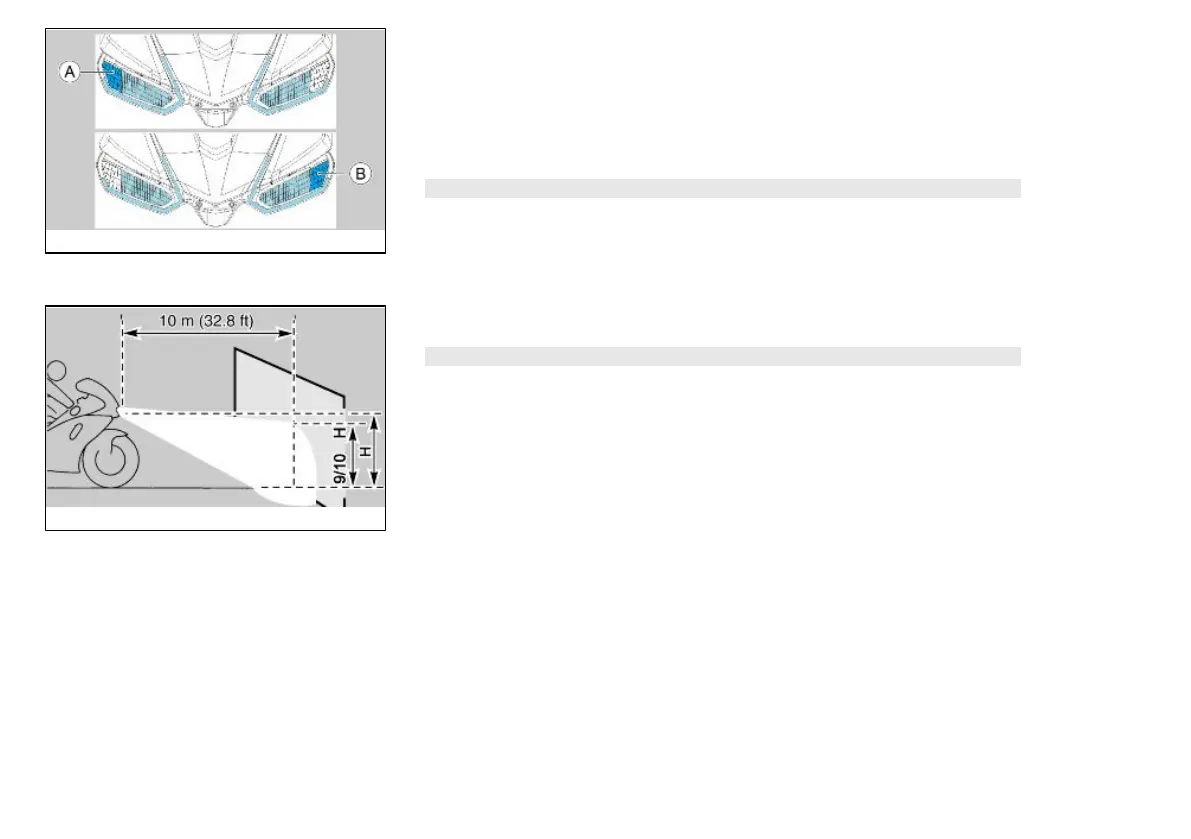

The bending lights are only activated if the low beam headlights are on and once the
vehicle reaches a lean angle of at least 25°.
•
When leaning into a left hand bend, the left hand LED bending assist light
illuminates (A).
•
When leaning into a right hand bend, the right hand LED bending assist light
illuminates (A).
CAUTION
IN THE EVENT OF A MALFUNCTION OF THE HEADLAMP UNIT, CONTACT AN
Official Aprilia Dealer.
04_21
Headlight adjustment (04_21, 04_22, 04_23, 04_24)
NOTE
IN COMPLIANCE WITH LOCAL LEGISLATION, SPECIFIC PROCEDURES MUST
BE FOLLOWED WHEN ALIGNING THE LIGHTS.
To quickly check if the headlamp is aimed correctly, place the vehicle on a level surface
10 m (32.8 ft) from a vertical wall. Turn on the low beam light, sit on the vehicle and
check that the light beam projected to the wall is a little below the horizontal straight
line of the headlight (about 9/10 of the total height).
