Justering af greb til forbremse (03_19)

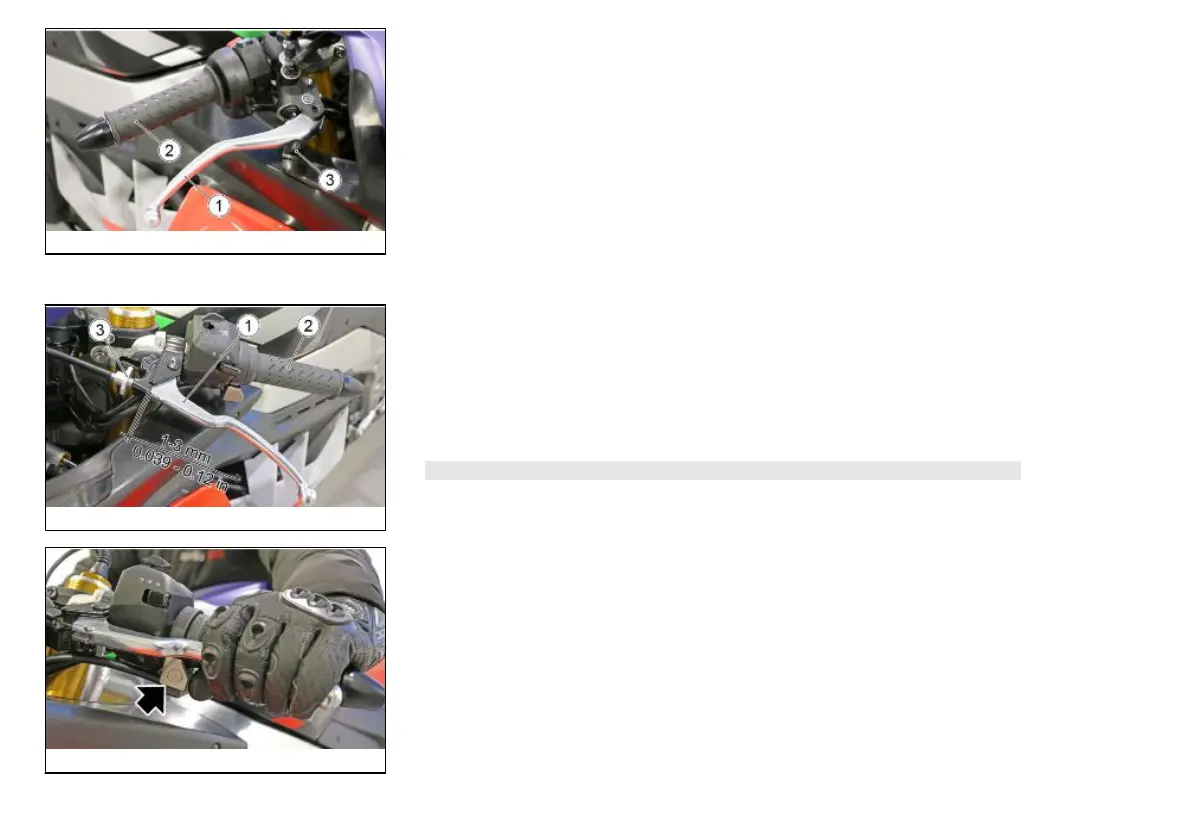

It is possible to adjust the distance between the end of the lever (1) and the grip (2),
turning the adjuster (3).
•
Push the control lever (1) forwards and turn the adjuster (3) until the lever (1)
is at the desired distance.
•
Turning the adjuster anticlockwise, the lever (1) gets closer to the grip (2).
03_20
03_21
Clutch lever adjustment (03_20, 03_21)
The clutch lever play (1) can be adjusted acting on the set screw (3).
•
Turn the set screw (3) toward the direction of motion to increase the lever
play (1) and check operation of the guide using the knob (2) as in riding po-
sition.
•
Ensure that the play is between 1 and 3 mm (0.039 and 0.12 in).
CAUTION
IF YOU WANT TO CHANGE THE STANDARD ANGLE OF THE CLUTCH LEVER,
YOU MUST ENSURE THAT WITH THE LEVER FULLY PULLED, THERE IS AB-
SOLUTELY NO INTERFERENCE WITH THE "-" BUTTON. FAILURE TO OBSERVE
THIS COULD CAUSE THE a-PRC SYSTEM TO MALFUNCTION.
