CONFIDENTIAL
54
30” BUILT-IN REFRIGERATOR / REVISION NUMBER: 00
12. INSTALLATION AND REMOVAL OF THE COMPONENTS

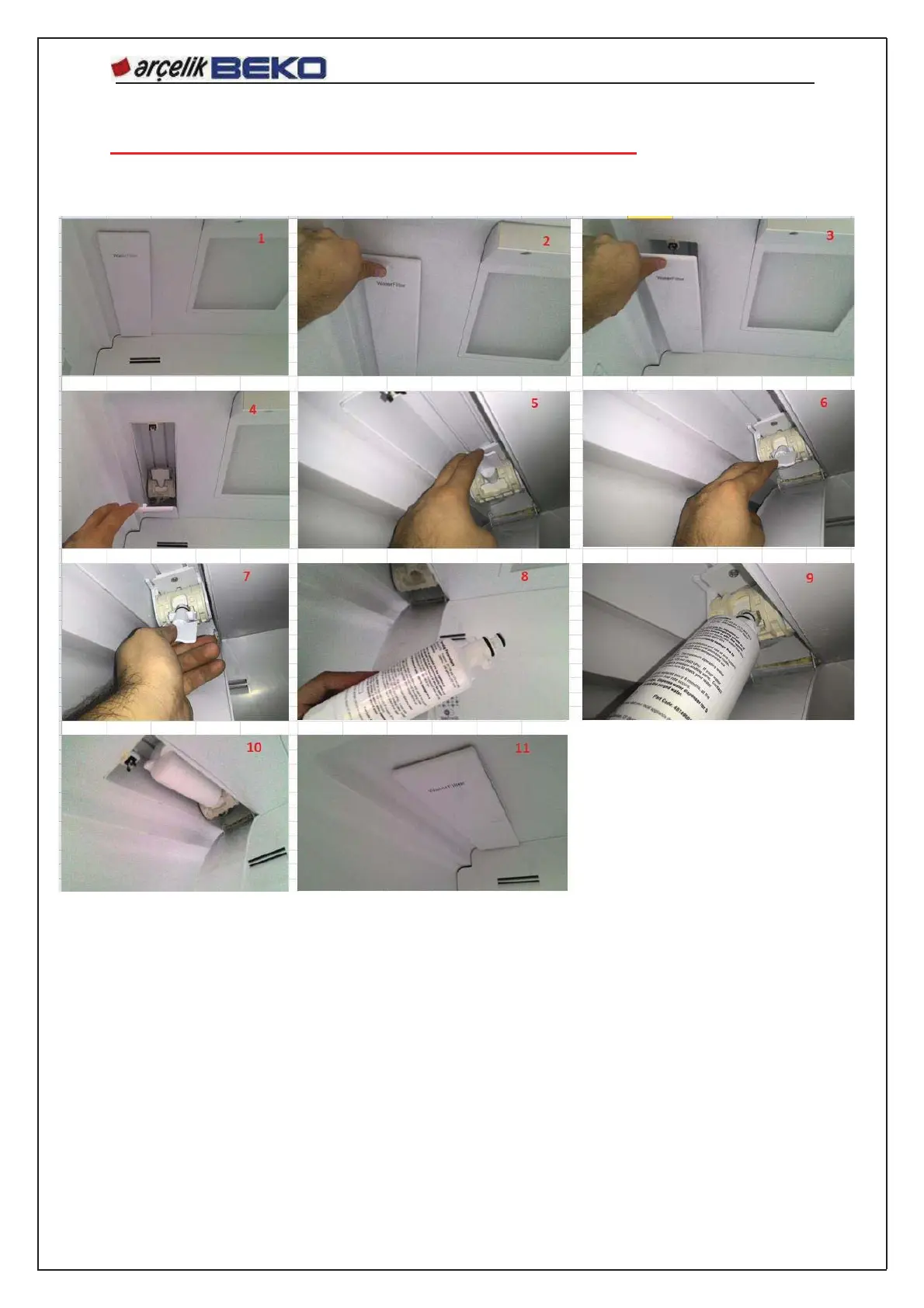

12.1. Filter Cover and the Filter
- Opening of the cover lock mechanism is ensured by pressing the place on the filter cover as shown in
Figure-2 (Figure-3)
- The Bypass cover is dismantled as shown in Figures 4-5-6 and 7.
- The filter shown in Figure 8-9 and 10 is placed and the cover is closed again as shown in Figure-11.
