30” BUILT-IN REFRIGERATOR / REVISION NUMBER: 00
12.11. Glass Shelve Group over the Vegetable Bin

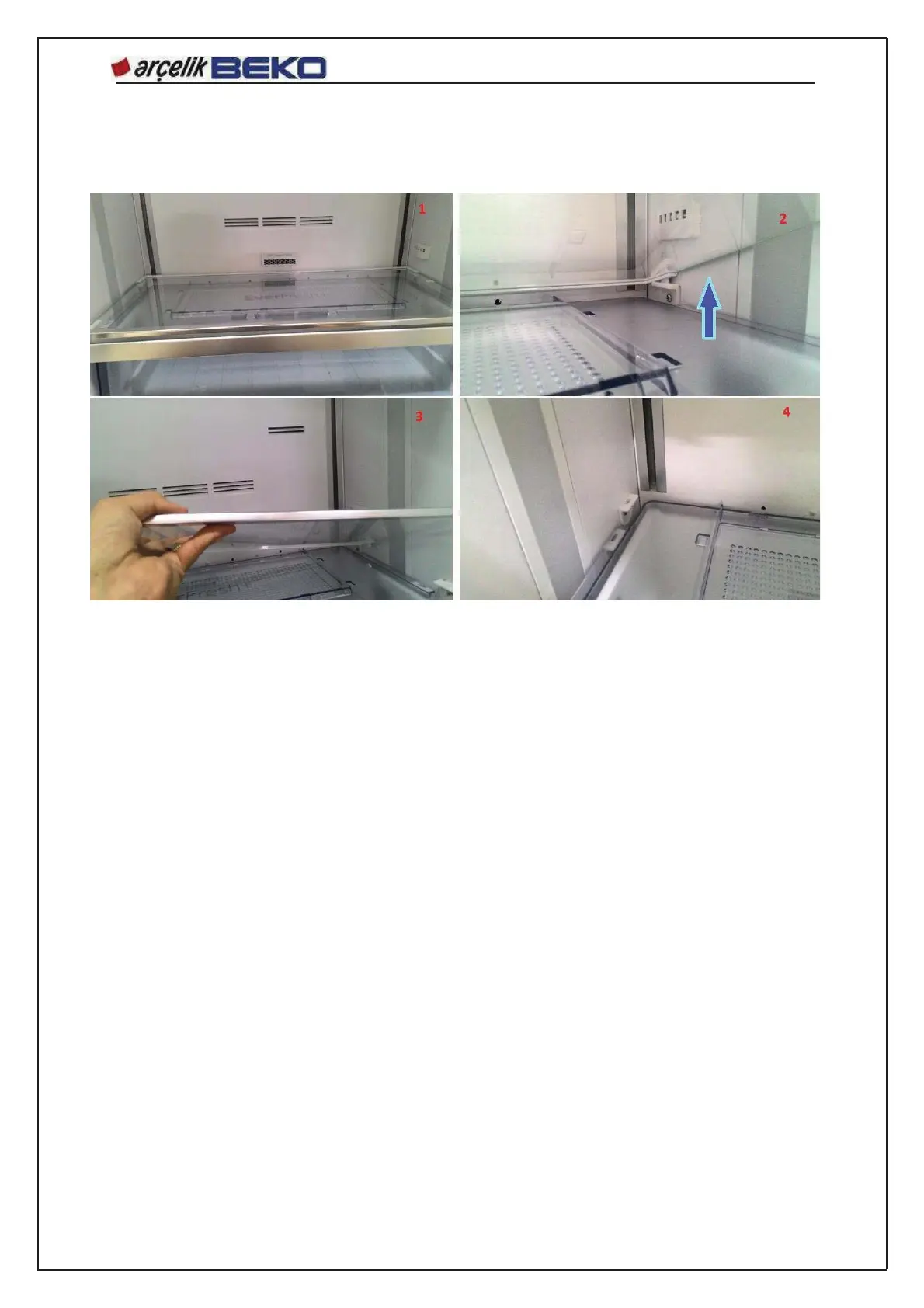

The glass shelf group on the vegetable bin is located on totally 4 shelf carriers being perforated in the
rear side and unperforated in the front side, as shown in Figure 2.
The glass shelf hold from the front side and lifted upwards in the direction of the arrow, as shown in
Figure 2.
Salvation of the pins on the plastic rear profile from perforated shelf carriers should be ensured.
Once the glass shelf has reached the sufficient height it is dismantled by being drawn forth.
