30” BUILT-IN REFRIGERATOR / REVISION NUMBER: 00
12.9. Partition Group with Indicator Panel

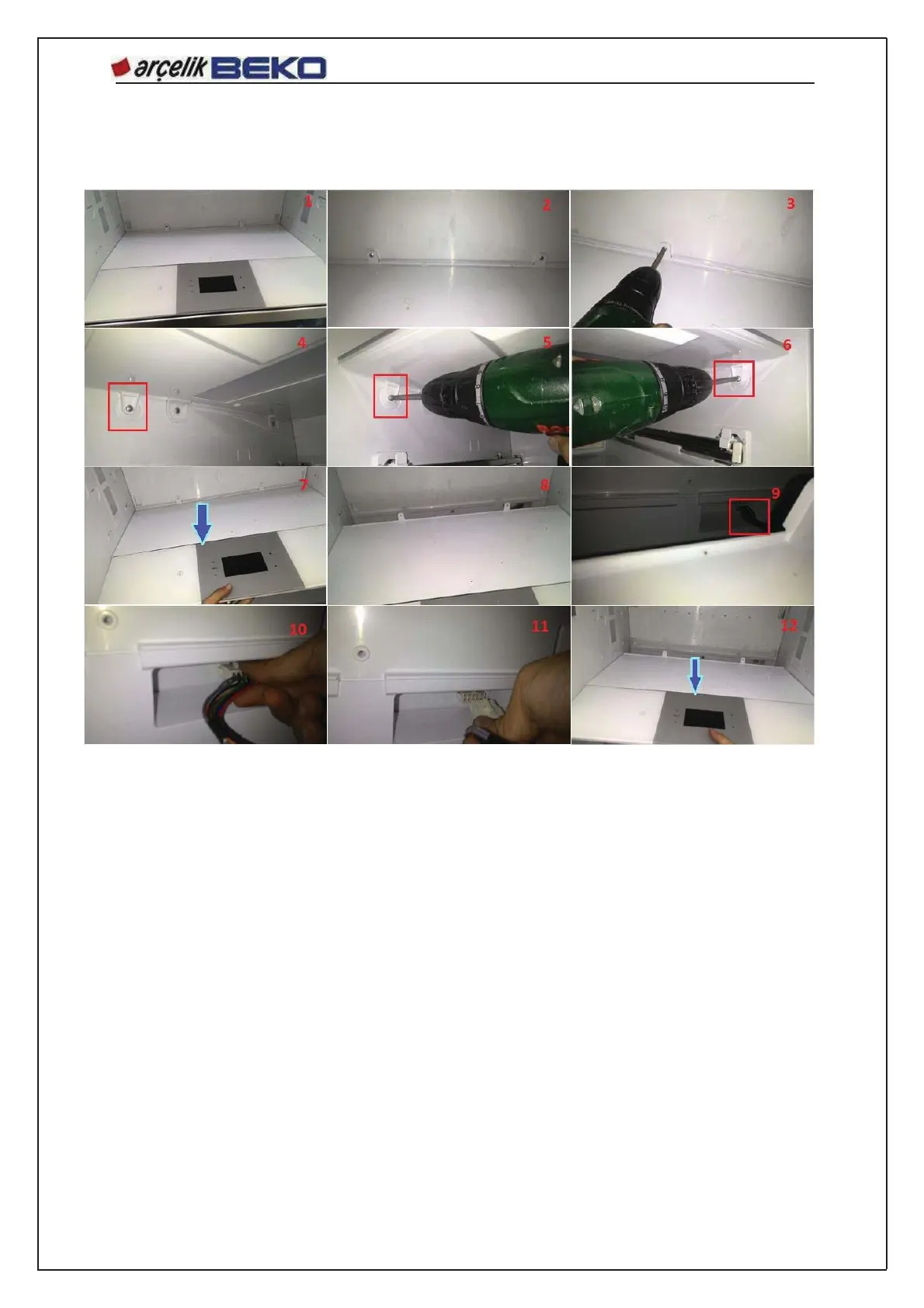

The partition is connected from rear to the eva cover using 2 star plastic screws, as shown in Figure 2.
- The 2 screws should also be removed using the charged wrench, as shown in Figure 3.
As shown in Figure 4, 2 screws located on the left and right sides should also be removed as shown in
Figure 5 and 6 using the charged wrench.
It should be pulled in the direction of the arrow as shown in Figure 7.
The connection socket shown in Figure 8 and 9, should be dismantled as shown in Figure 10 and 11.
It should be pulled in the direction of the arrow and completely dismantled as shown in Figure 12.
