30” BUILT-IN REFRIGERATOR / REVISION NUMBER: 00
12.10. Manually Moved Glass Shelve Group

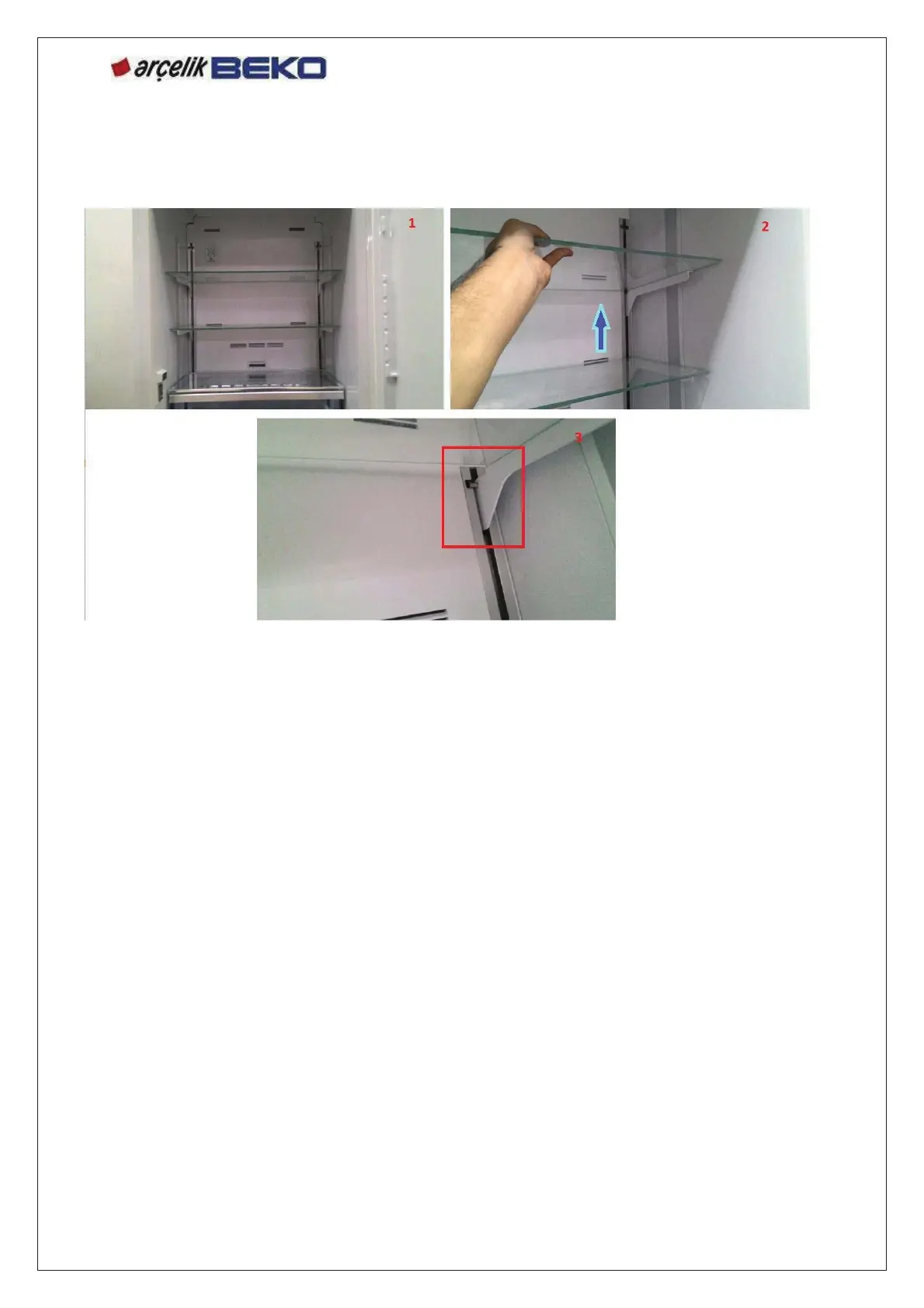

There are two body shelves as shown in Figure 1
The glass shelf hold from the front side and lifted upwards in the direction of the arrow, as shown in
Figure 2.
Salvation of the shelf bearings from the gear in the profile should be ensured.
Salvation of the glass shelves from the profile is ensured by lifting them upwards to the discharges
inside the profile as shown in Figure 3.
Then, removal of the glass shelf from the fridge is ensured by pulling drawing it forth.
