30” BUILT-IN REFRIGERATOR / REVISION NUMBER: 00
12.3. Zero Degree Vegetable Bin

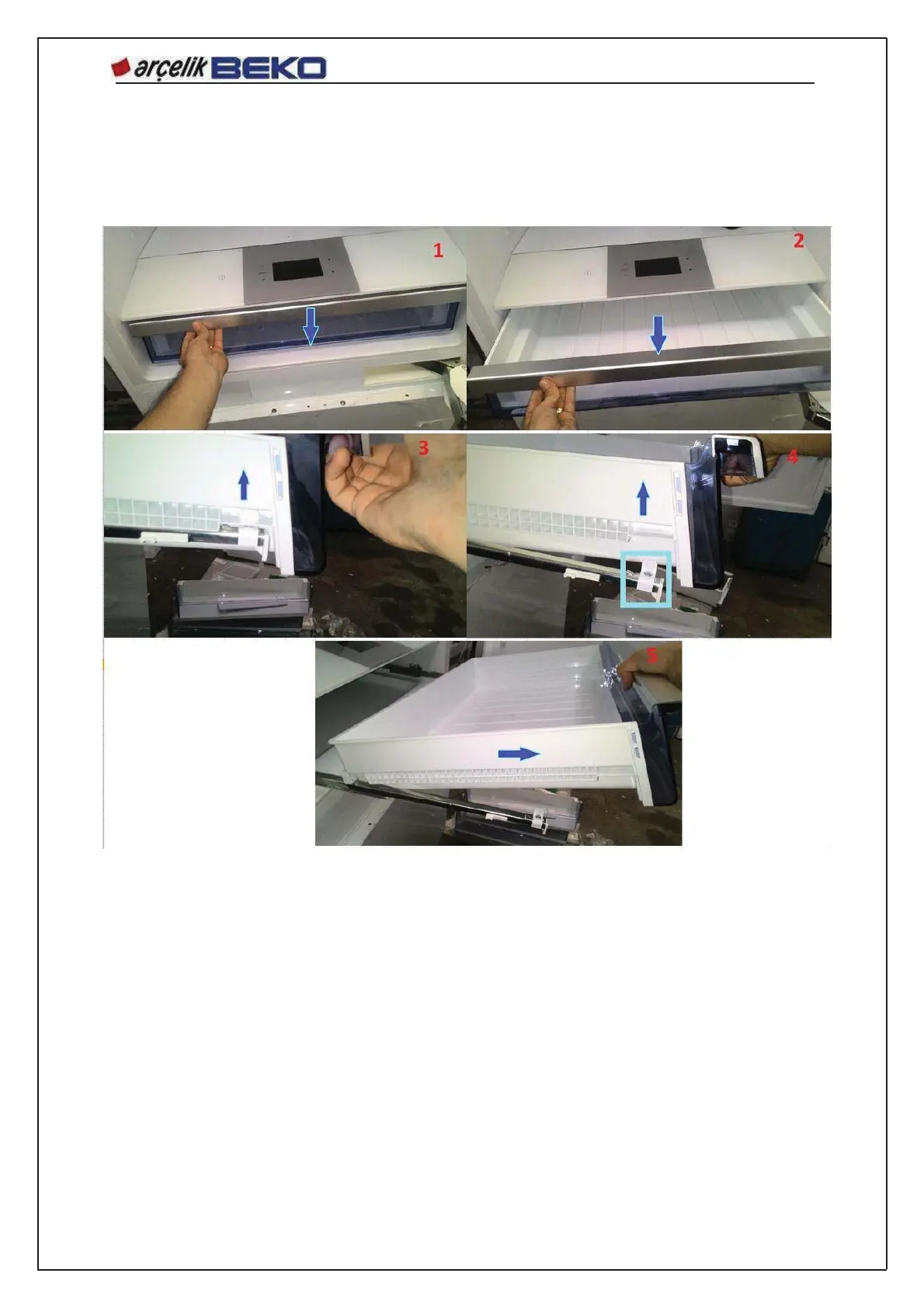

- We pull the Zerostar vegetable bin shown in Figure 1,2 in the direction of the arrow by holding
its Aluminium handle.
- Once we have fully opened the vegetable bin we lift it upwards in the direction of the arrow as
shown in Figure 3.
- We keep the vegetable bin from the guides on the right and left rails handling the bin as shown
in Figure 4 (the area specified within the box)
- Once we have completely kept the vegetable bin from the guides we take it out by pulling in the
direction of the row as shown in Figure 5.
