4-38 Chapter 4: BIOS setup

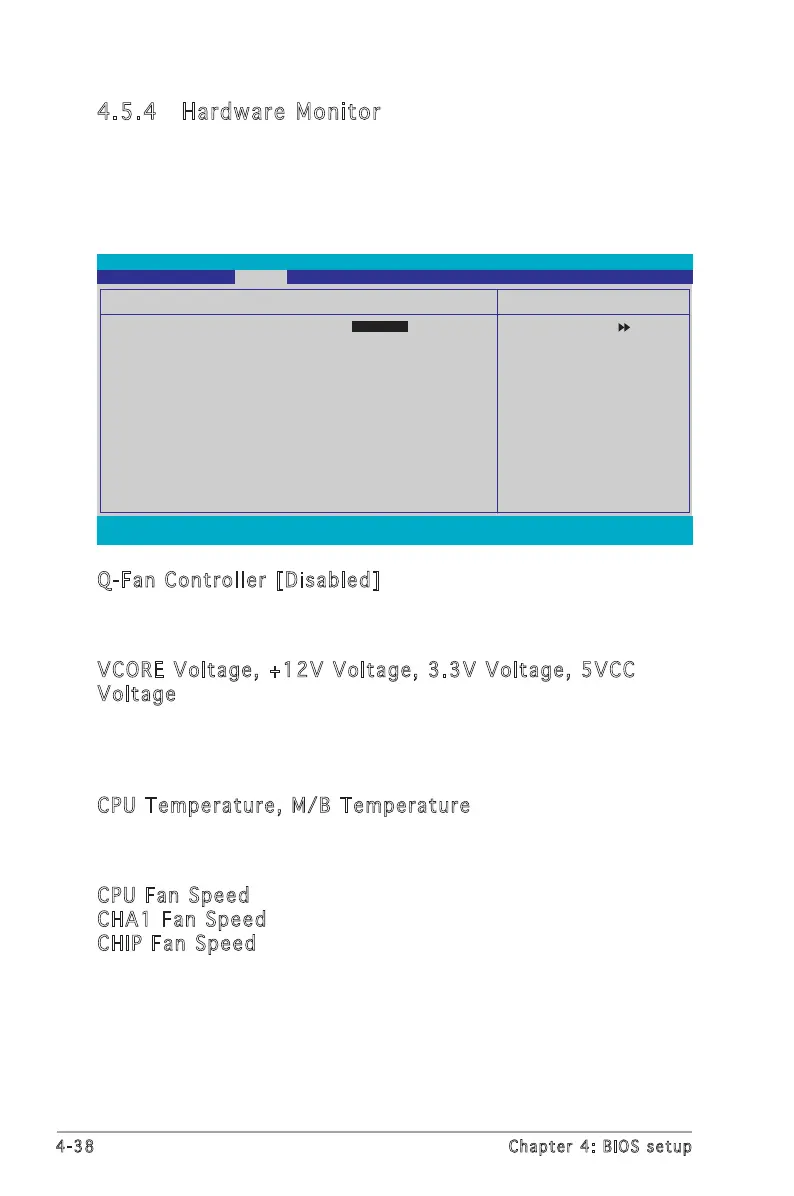

4.5.4 Hardware Monitor
The items in this sub-menu displays the hardware monitor values
automatically detected by the BIOS. It also allows you to change CPU Q-Fan
feature-related parameters. Select an item then press <Enter> to display
the configuration options.
F1:Help ↑↓ : Select Item -/+: Change Value F5: Setup Defaults
ESC: Exit →←: Select Menu Enter: Select Sub-menu F10: Save and Exit
Select Menu
Item Specific Help
Press [Enter] to
enable or disable
Hardware Monitor
Q-Fan Controller [Disabled]
Vcore Voltage 1.50V
3.3V Voltage 3.31V
5V Voltage 4.94V
12V Voltage 11.26V
CPU Temperature 48ºC
M/B Temperature 38ºC
CPU FAN Speed 4962 RPM
CHA1 FAN Speed 0 RPM
CHIP FAN Speed 5443 RPM
x CPU Target Temperature 20ºC
CPU Fan Speed warning [1600 RPM]
CPU Fan Speed warning [1200 RPM]
CHIP Fan Speed warning [Enabled]
Phoenix-Award BIOS CMOS Setup Utility
Power
Q-Fan Controller [Disabled]
Allows you to enable or disable the Q-Fan controller.
Configuration options: [Disabled] [Enabled]
VCORE Voltage, +12V Voltage, 3.3V Voltage, 5VCC
Voltage
The onboard hardware monitor automatically detects the voltage
output through the onboard voltage regulators. These items are not
user-configurable.
CPU Temperature, M/B Temperature
The onboard hardware monitor automatically detects and displays the
motherboard and CPU temperatures. These items are not user-configurable.
CPU Fan Speed
CHA1 Fan Speed
CHIP Fan Speed
The onboard hardware monitor automatically detects and displays the
Chassis, CPU, and Chip fan speeds in rotations per minute (RPM). If the fan
is not connected to the motherboard, the field shows 0. These items are
not user-configurable.
