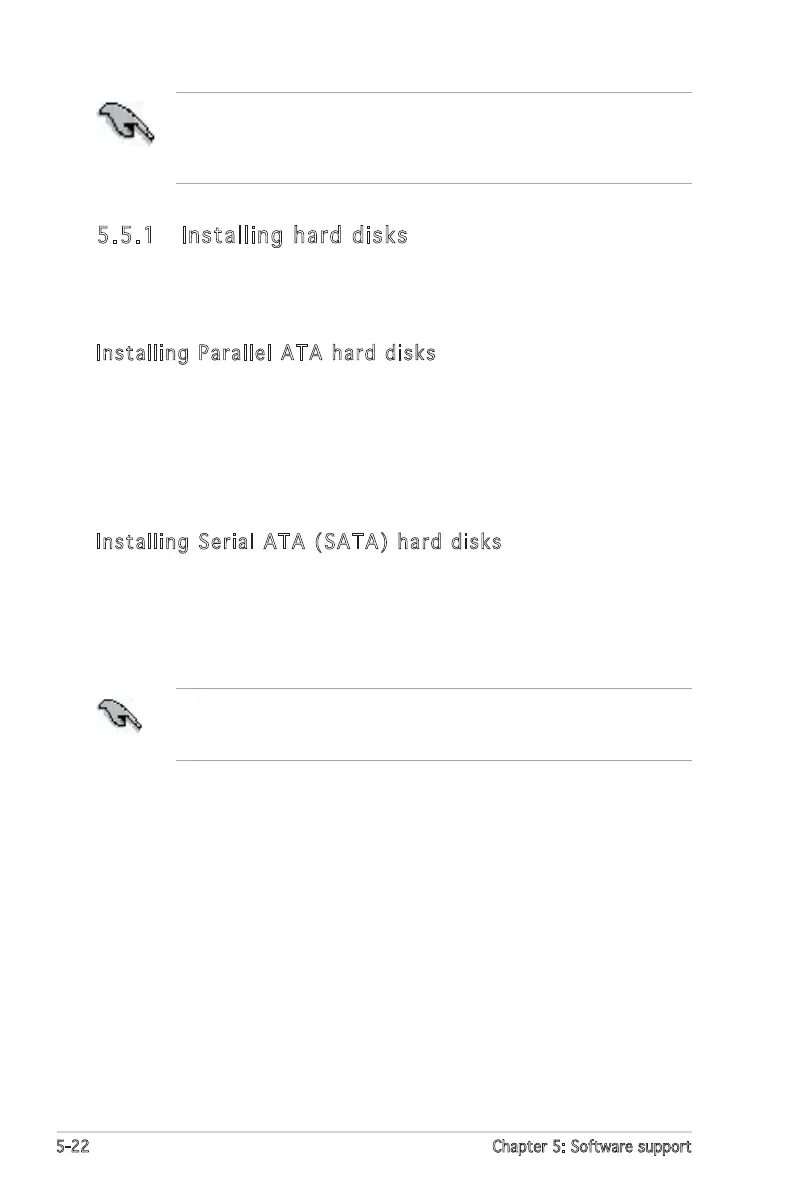

5.5.1 Installing hard disks
The motherboard supports Ultra DMA /133/100/66 and Serial ATA hard
disk drives. For optimal performance, install identical drives of the same
model and capacity when creating a disk array.
Installing Parallel ATA hard disks
To install IDE hard disks for a RAID configuration:
1. Set the jumpers of each hard disk as Master/Master or Slave/Slave.
2. Install the hard disks into the drive bays.
3. Connect the HDD signal cables.
4. Connect a 4-pin power cable to the power connector on each drive.
Installing Serial ATA (SATA) hard disks
To install the SATA hard disks for a RAID configuration:
1. Install the SATA hard disks into the drive bays.
2. Connect the SATA signal cables.
3. Connect a SATA power cable to the power connector on each drive.
If you want to boot the system from a hard disk drive included in a RAID
set, copy first the RAID driver from the support CD to a floppy disk
before you install an operating system to a selected hard disk drive.
Refer to section “5.6 Creating a RAID driver disk” for details.
Refer to the RAID controllers user manual in the motherboard support
CD for detailed information on RAID configurations. See section “5.2.4
Manuals menu”.
