Asus P5Q Deluxe User Manual

4-24 Chapter 4: Software support
4.3.8 ASUS EPU—Six Engine
ASUS EPU—Six Engine is an energy-efcient tool that satises different
computing needs. This utility provides four modes that you can select to enhance
system performance or save power. Selecting Auto mode will have the system shift
modes automatically according to current system status. You can also customize
each mode by conguring settings like CPU frequency, vCore Voltage, and Fan
Control.
Installing Six Engine
To install Six Engine on your computer:
1. Place the support DVD to the optical drive. The Drivers installation tab
appears if your computer has an enabled Autorun feature.
2. Click the Drivers tab and then click ASUS EPU—Six Engine.
3. Follow the screen instructions to complete installation.
Launching Six Engine

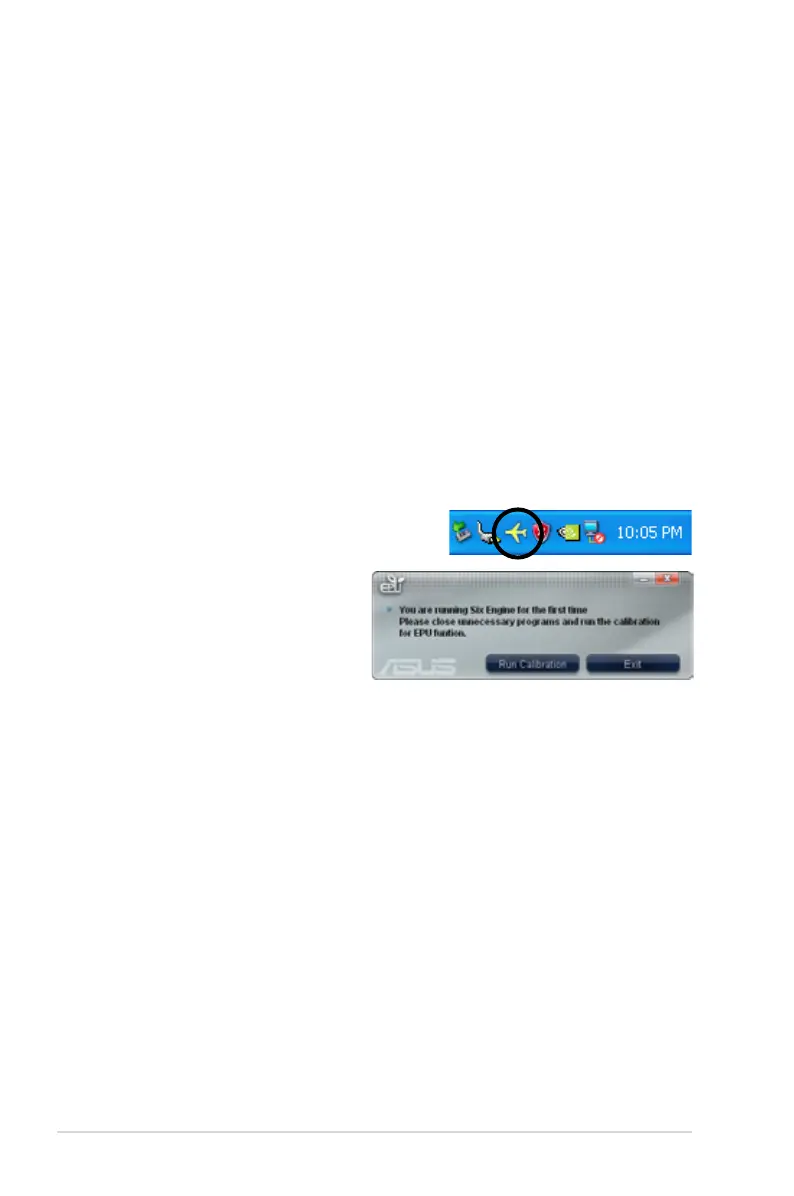

Launch Six Engine by double-clicking the Six
Engine icon on the Windows
®
notication area.
The rst time you launch Six Engine,
the following message will appear,
asking you to run Calibration rst.
Running calibration allows the
system to detect CPU properties to
optimize power management.
Click Run Calibration and wait for a few seconds. Then, the Six Engine main
menu appears.

Asus P5Q Deluxe Specifications

General

Chipset	Intel P45
Socket	LGA 775
Memory Type	DDR2
Memory Slots	4 x DIMM
Max Memory	16 GB
Form Factor	ATX
PCI Express x16	2
PCI Express x1	3
PCI Slots	2
SATA Ports	6 x SATA 3Gb/s
IDE Ports	1 x ATA133
Max. LAN Speed	10/100/1000 Mbps
Audio Chipset	ADI AD2000B
RAID Support	RAID 0, 1, 5, 10
USB Ports	12 x USB 2.0
Audio Channels	8-channel
CPU Type	Core 2 Quad / Core 2 Duo / Pentium / Celeron
Back Panel Ports	eSATA, USB, LAN, Audio
Memory Speed	1200/1066/800/667 MHz
eSATA Ports	2 x eSATA 3Gb/s
