Asus P5Q Deluxe User Manual

2-34 Chapter 2: Hardware information
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis
power LED cable to this connector. The system power LED lights up when
you turn on the system power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity
LED cable to this connector. The IDE LED lights up or ashes when data is
read from or written to the HDD.
• System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The
speaker allows you to hear system beeps and warnings.
• ATX power button/soft-off button (2-pin PWRSW)
This connector is for the system power button. Pressing the power button
turns the system on or puts the system in sleep or soft-off mode depending
on the BIOS settings. Pressing the power switch for more than four seconds
while the system is ON turns the system OFF.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system
reboot without turning off the system power.

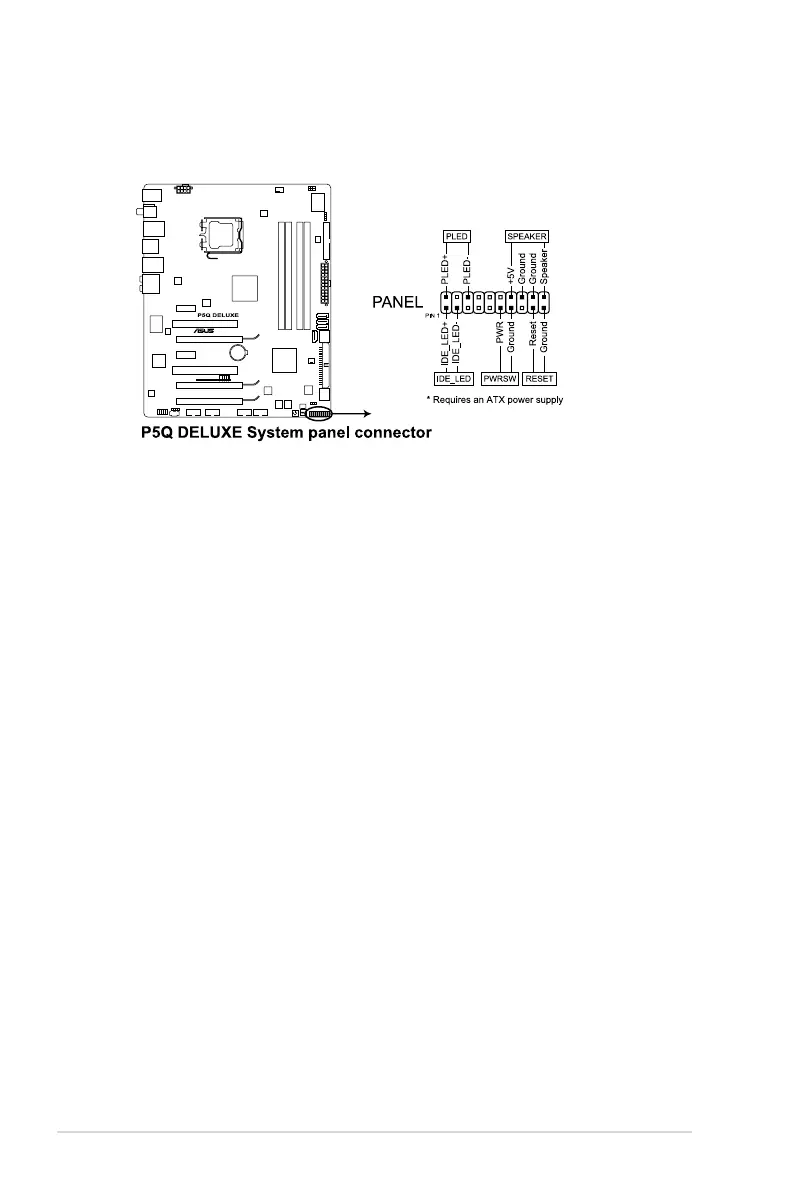

14. System panel connector (20-8 pin PANEL)
This connector supports several chassis-mounted functions.

Asus P5Q Deluxe Specifications

General

Chipset	Intel P45
Socket	LGA 775
Memory Type	DDR2
Memory Slots	4 x DIMM
Max Memory	16 GB
Form Factor	ATX
PCI Express x16	2
PCI Express x1	3
PCI Slots	2
SATA Ports	6 x SATA 3Gb/s
IDE Ports	1 x ATA133
Max. LAN Speed	10/100/1000 Mbps
Audio Chipset	ADI AD2000B
RAID Support	RAID 0, 1, 5, 10
USB Ports	12 x USB 2.0
Audio Channels	8-channel
CPU Type	Core 2 Quad / Core 2 Duo / Pentium / Celeron
Back Panel Ports	eSATA, USB, LAN, Audio
Memory Speed	1200/1066/800/667 MHz
eSATA Ports	2 x eSATA 3Gb/s
