Asus P5Q Deluxe User Manual

ASUS P5Q Deluxe 4-51

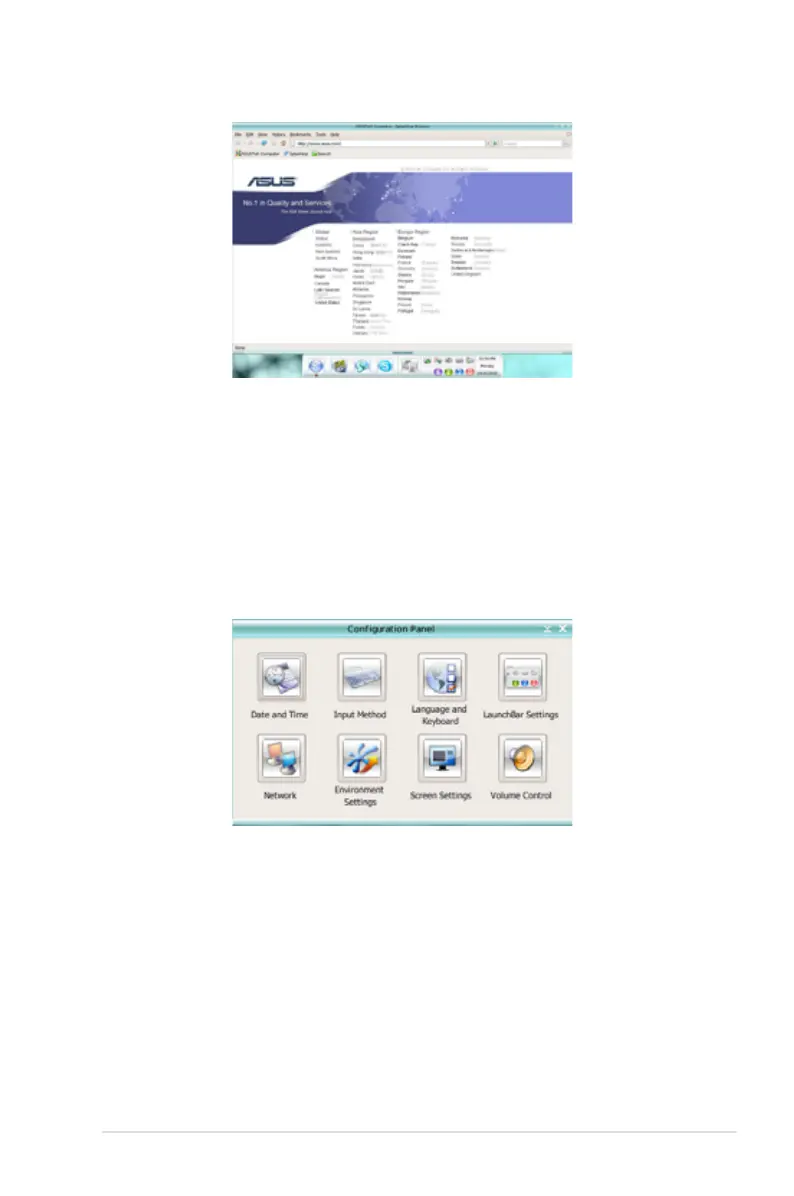

Using the Conguration Panel
Use the conguration panel to change various Express Gate SSD settings.
Click on an icon to open a particular conguration tool. The following tools are
available:
•
Date and Time
: set current date and time as well as time zone.
•
Input Method
: choose your preferred input language and method.
•
Language and Keyboard
: choose your language and keyboard preferences.
•
LaunchBar Settings
: customize your LaunchBar (where it docks, whether it
auto-hides, etc.)
•
Network
: Specify how your computer connects to the Internet. Enable all the
network ports that you may use (LAN1, LAN2, and/or wireless [optional]). LAN1
and LAN2 refer to the two RJ-45 network ports on your computer.
Besides using the LaunchBar, you can also switch between softwares by pressing
<Alt> +<Tab> on the keyboard. You can also right-click anywhere on the desktop to
bring up a menu of softwares.
The red triangle on an software icon in the LaunchBar denotes that the software is
already running. This means that you can switch to it without any delay. In the rare
case where an software stops responding, right-click on its icon to force close it.

Asus P5Q Deluxe Specifications

General

Chipset	Intel P45
Socket	LGA 775
Memory Type	DDR2
Memory Slots	4 x DIMM
Max Memory	16 GB
Form Factor	ATX
PCI Express x16	2
PCI Express x1	3
PCI Slots	2
SATA Ports	6 x SATA 3Gb/s
IDE Ports	1 x ATA133
Max. LAN Speed	10/100/1000 Mbps
Audio Chipset	ADI AD2000B
RAID Support	RAID 0, 1, 5, 10
USB Ports	12 x USB 2.0
Audio Channels	8-channel
CPU Type	Core 2 Quad / Core 2 Duo / Pentium / Celeron
Back Panel Ports	eSATA, USB, LAN, Audio
Memory Speed	1200/1066/800/667 MHz
eSATA Ports	2 x eSATA 3Gb/s
