2-4 Chapter 2: Hardware information
2.2.3 Placement direction
When installing the motherboard, make sure that you place it into the chassis in the
correct orientation. The edge with external ports goes to the rear part of the chassis
as indicated in the image below.

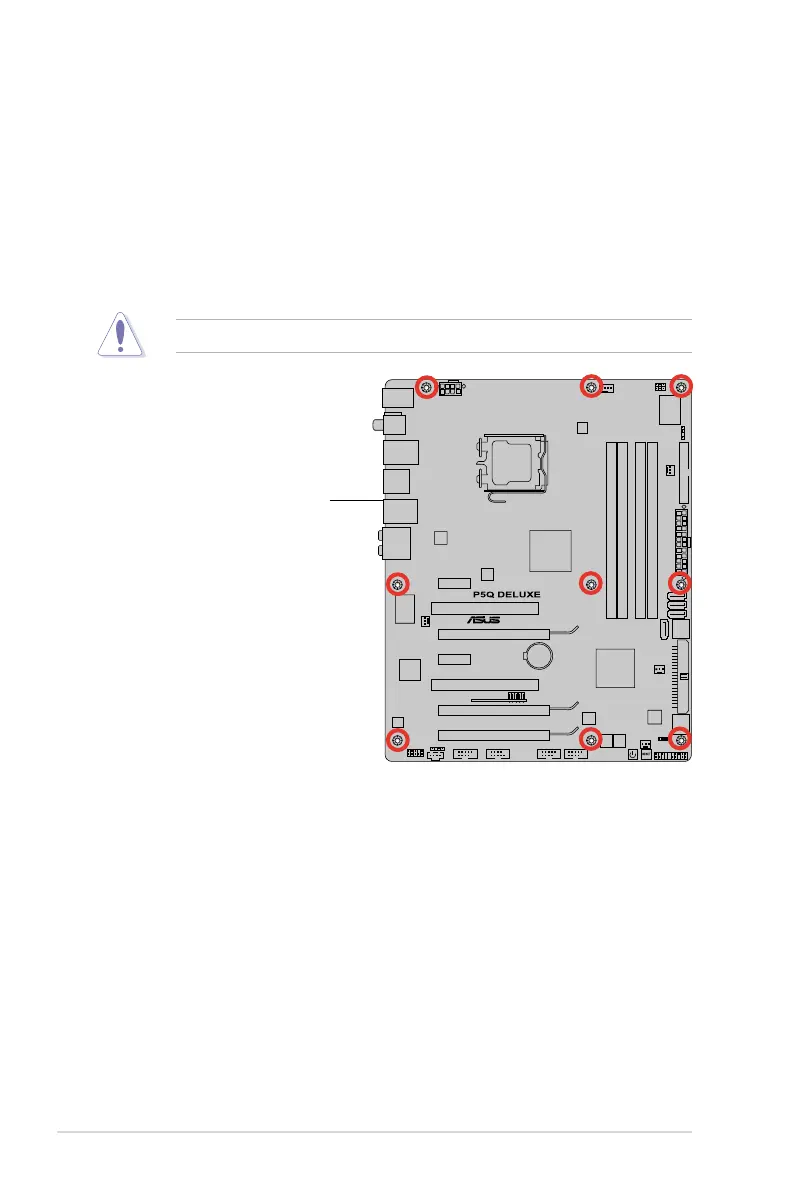

2.2.4 Screw holes
Place nine (9) screws into the holes indicated by circles to secure the motherboard
to the chassis.
Place this side towards
the rear of the chassis
DO NOT overtighten the screws! Doing so can damage the motherboard.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Asus P5Q Deluxe and is the answer not in the manual?

Asus P5Q Deluxe Specifications

General IconGeneral
ChipsetIntel P45
SocketLGA 775
Memory TypeDDR2
Memory Slots4 x DIMM
Max Memory16 GB
Form FactorATX
PCI Express x162
PCI Express x13
PCI Slots2
SATA Ports6 x SATA 3Gb/s
IDE Ports1 x ATA133
Max. LAN Speed10/100/1000 Mbps
Audio ChipsetADI AD2000B
RAID SupportRAID 0, 1, 5, 10
USB Ports12 x USB 2.0
Audio Channels8-channel
CPU TypeCore 2 Quad / Core 2 Duo / Pentium / Celeron
Back Panel PortseSATA, USB, LAN, Audio
Memory Speed1200/1066/800/667 MHz
eSATA Ports2 x eSATA 3Gb/s
