25
Chapter 4: Conguring via the web GUI RT-N15U

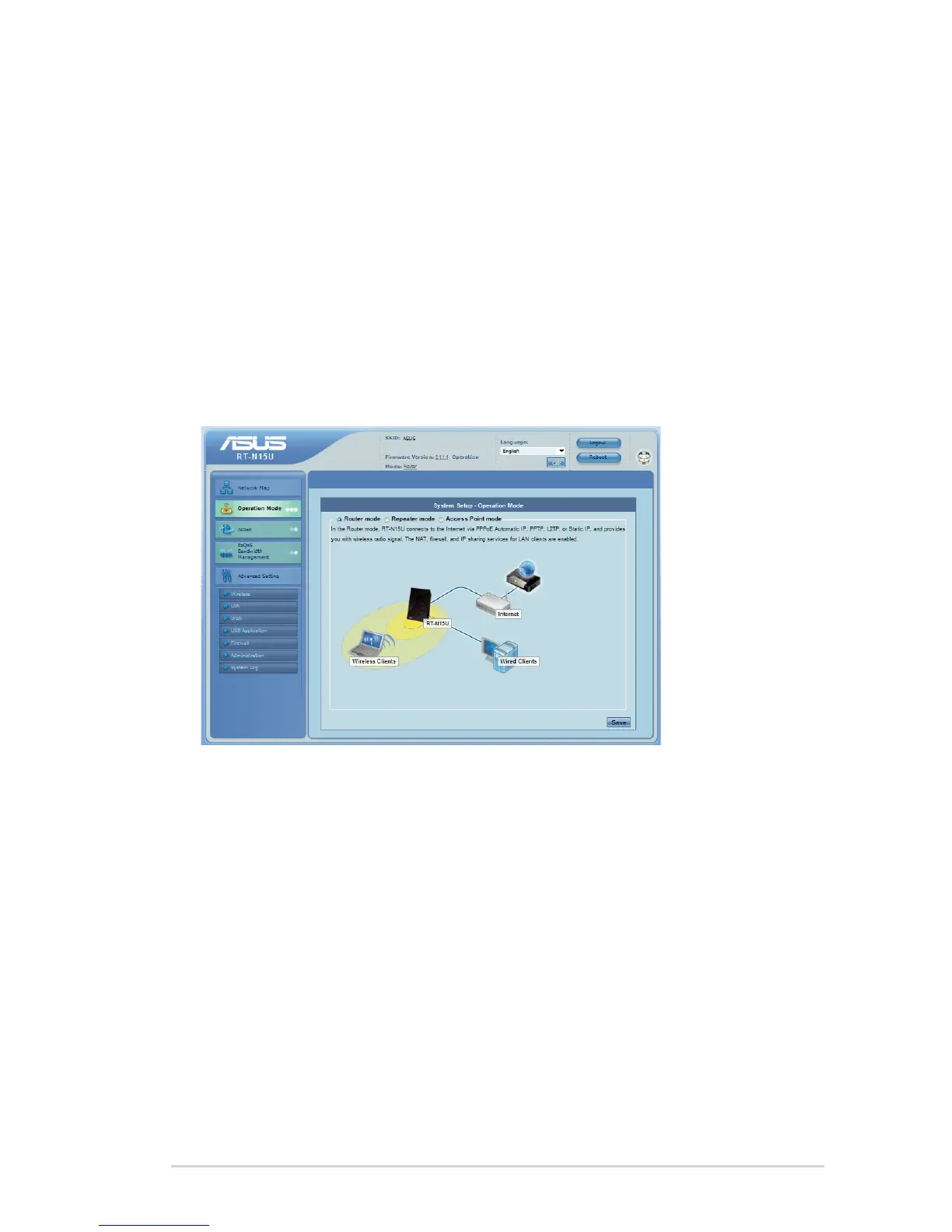

Setting up the operation mode
The Operation Mode page allows you to set up your wireless router into any of
these three operation modes: Router mode, Repeater mode, or Access Point
mode.
Setting up the wireless router in Router mode
In the Router mode, the wireless router connects to the Internet via PPPoE,
Automatic IP, PPTP, L2TP, or Static IP, and provides you with wireless radio
signals. The NAT, rewall, and IP sharing services for LAN clients are enabled.
To set up the wireless router in Router mode:
1. From the navigation menu, click Operation Mode and select Router Mode.
2. Select your connection type from these types of ISP services: Dynamic IP,
PPPoE, PPTP, L2TP, and Static IP.
3. Key in the required information provided by your ISP.
4. Click Apply all settings to save the settings.
